Wire Spools

November 2, 2019 · claude 3D Printing

Description

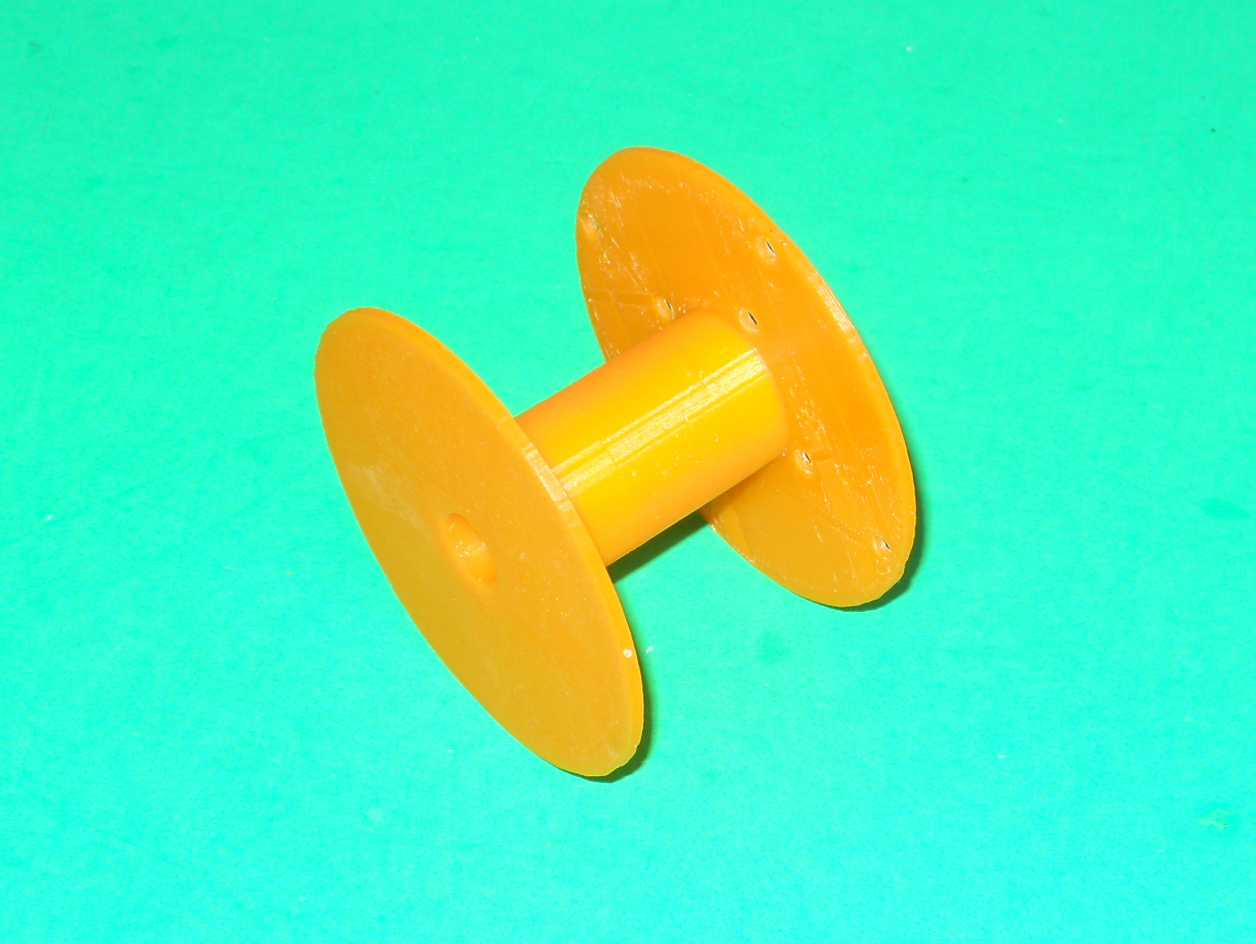

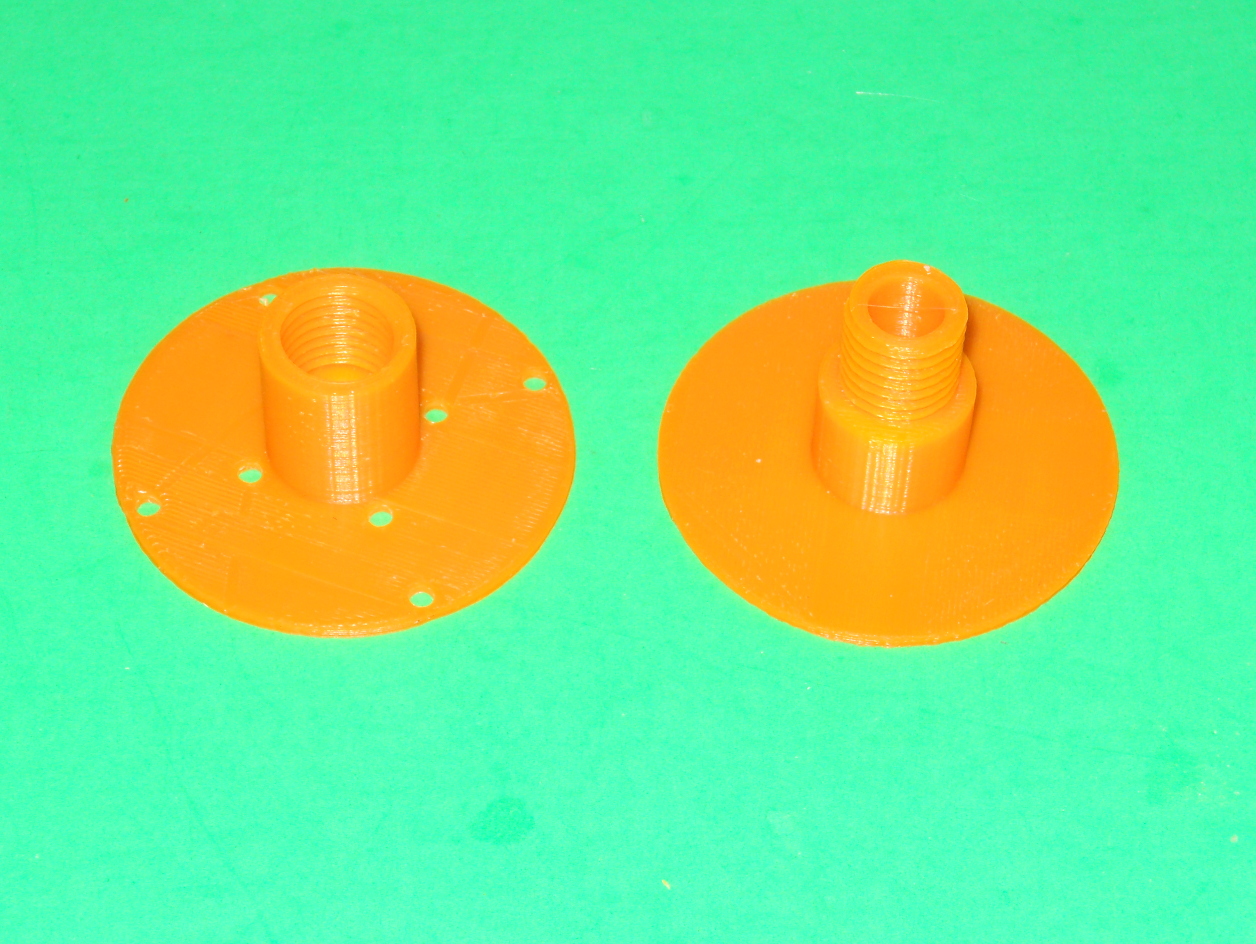

Wire spools of various sizes. The main picture is the 60 x 40 mm wire spool. It holds about 20 meters (10 meters of 2 conductors wire) of 26 AWG wire. Six sizes are supplied. The first number is the spool diameter in mm and the second dimension is the width of the spool. The core of the spool has a 20mm diameter. Print the Main and the corresponding EndCap files. If you need another size, leave a comment.

No extra hardware is required.

These can be printed without support.

This object was designed using Fusion 360

Files

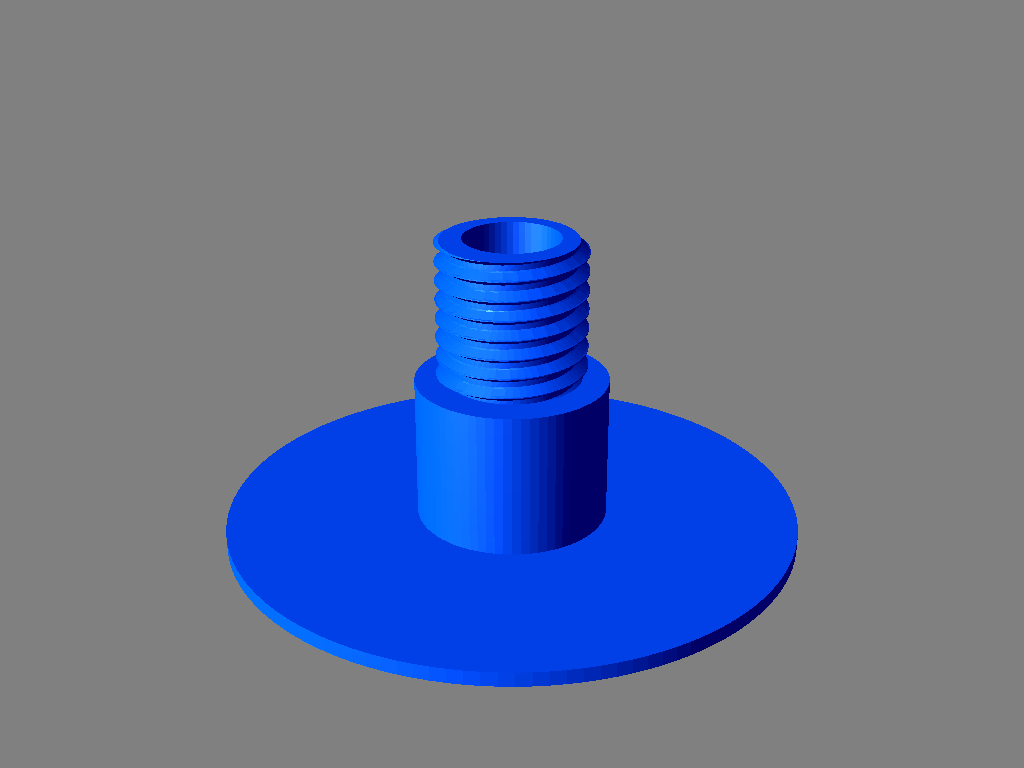

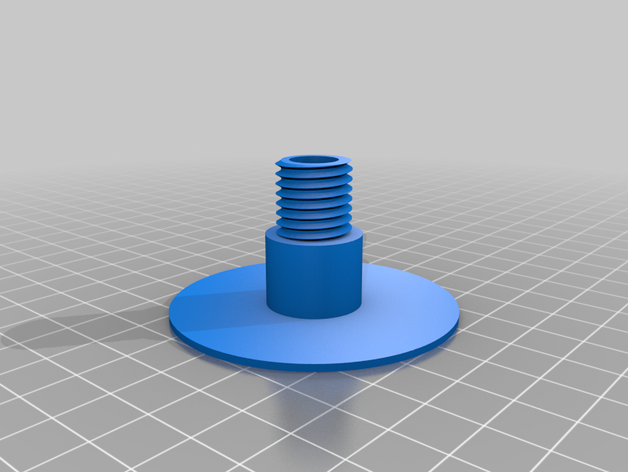

	Main-60x40-1.stl

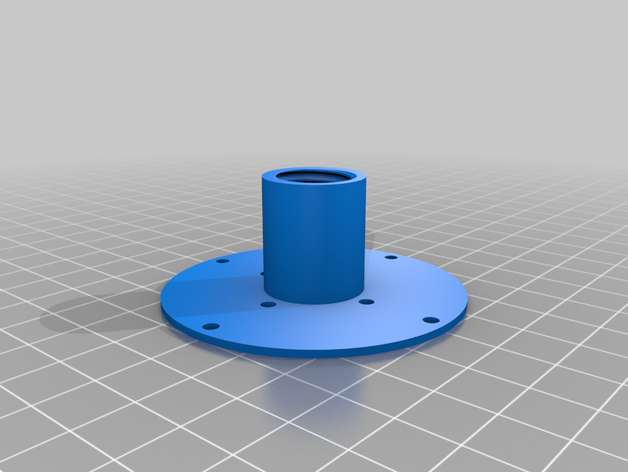

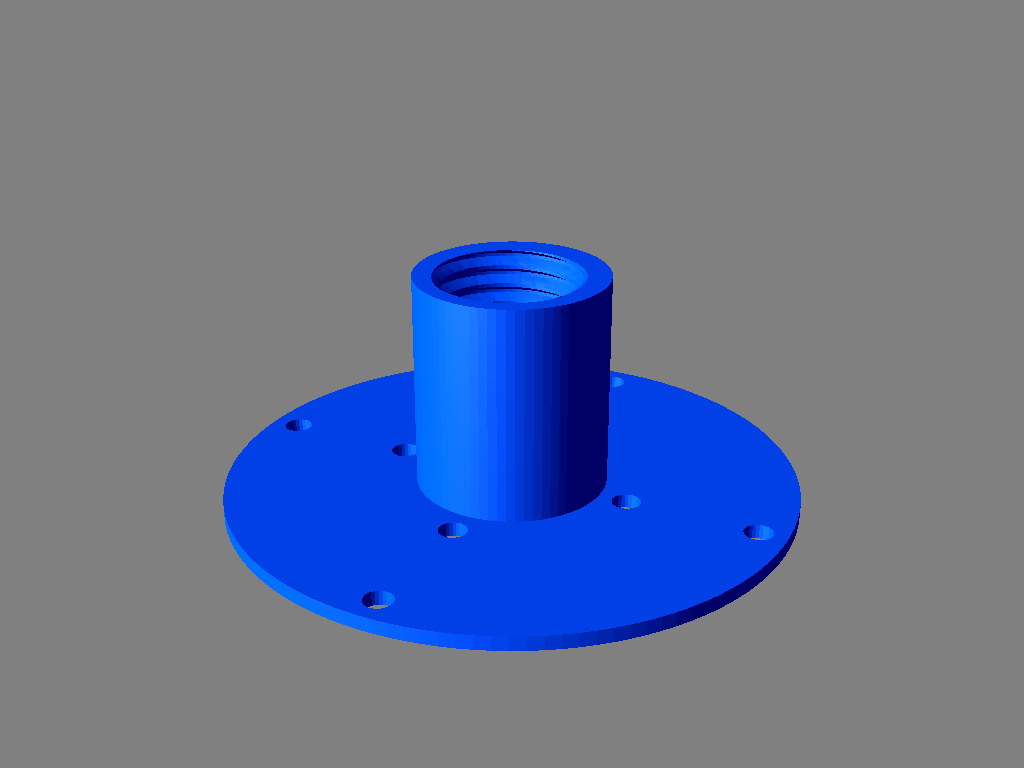

	EndCap-60x40-1.stl
	Main-60x50-1.stl
	EndCap-60x50-1.stl
	Main-60x60-1.stl
	EndCap-60x60-1.stl
	Main-80x40-1.stl
	EndCap-80x40-1.stl
	Main-80x50-1.stl
	EndCap-80x50-1.stl
	Main-80x60-1.stl
	EndCap-80x60-1.stl
