TronXY X5SA Bed Spring Tensioner

November 18, 2022 3D Printing object

Description

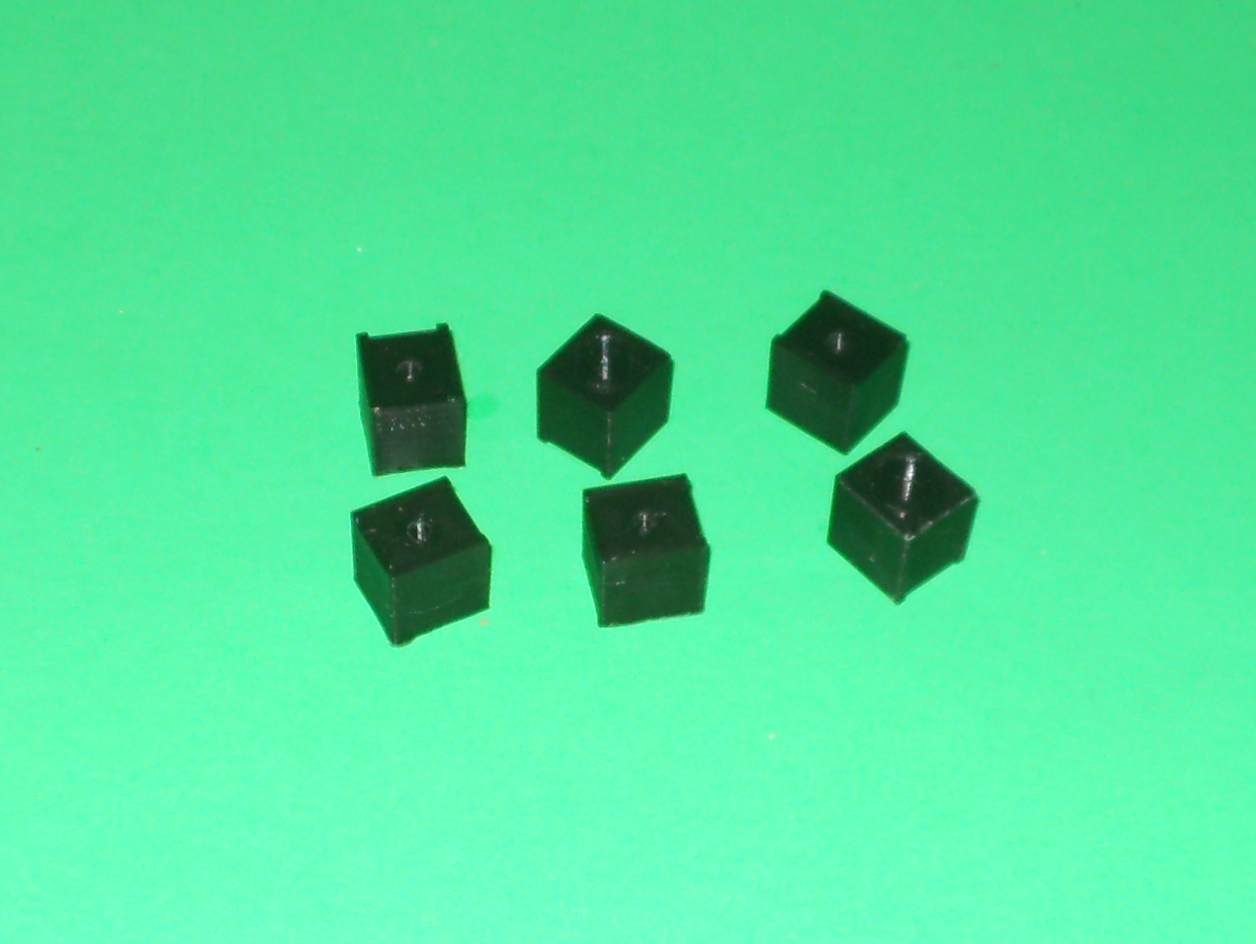

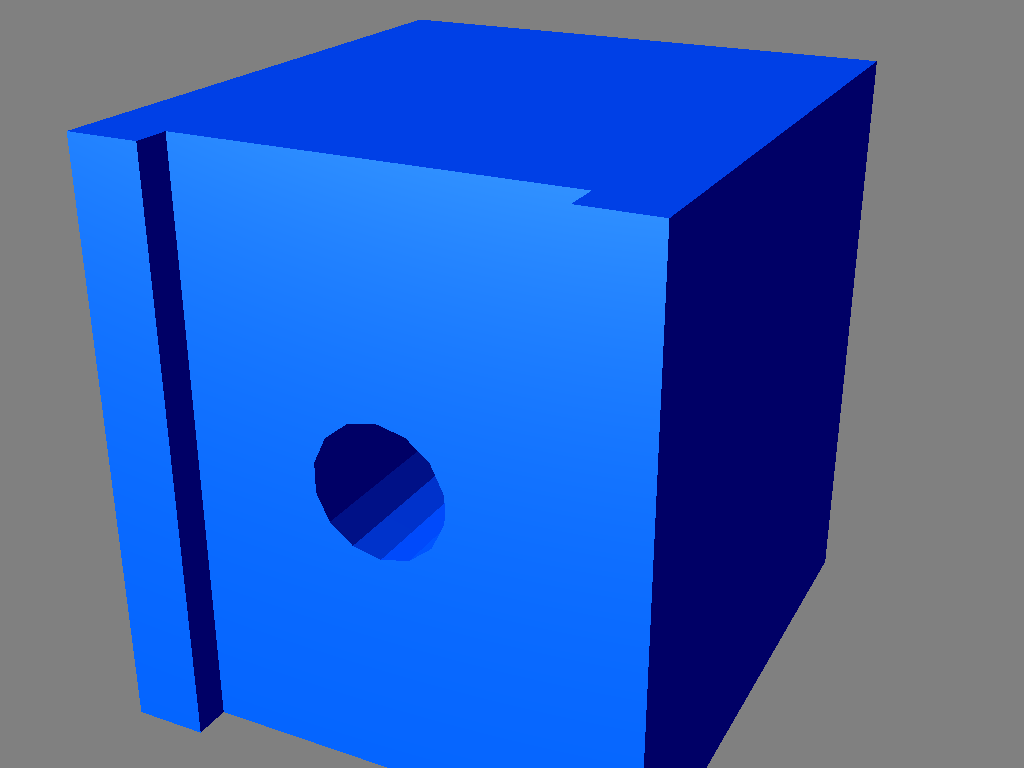

This is a TronXY X5SA bed spring tensioner and guide. This object was designed to increase the tension on the bed strings. It maximizes the space between the bed and the bed frame, so I could use the shown build plate clips. Without these, some of the bed level spring would have nearly no tension on it. It also keeps the spring strait. You'll have to print 6 of these.

Support material is not required if printed with the spring guide hole on the build plate. An infill of 100% is recommended.

This object was designed using Solid Edge Community Edition.

Files

Tensioner.stl
