Description

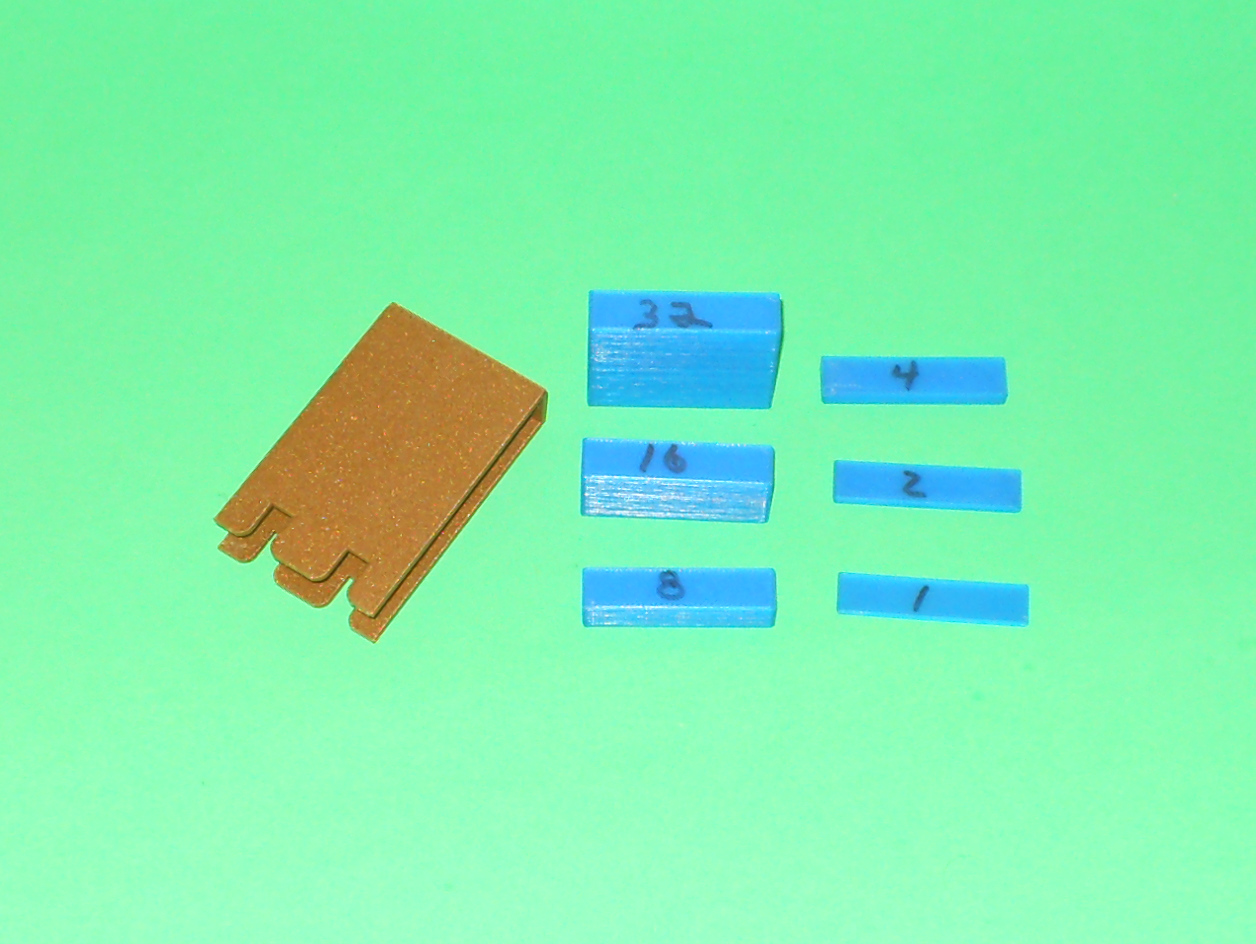

This is a set of thickness gauges. The supplied thickness are 1, 2, 4, 8, 16 and 32 mm. Thicknesses from 1 up to 63 mm may be achieved by combining some supplied ones.

Support is not required. An infill of 10% is recommended.

This object was designed using Solid Edge Community Edition.

Files

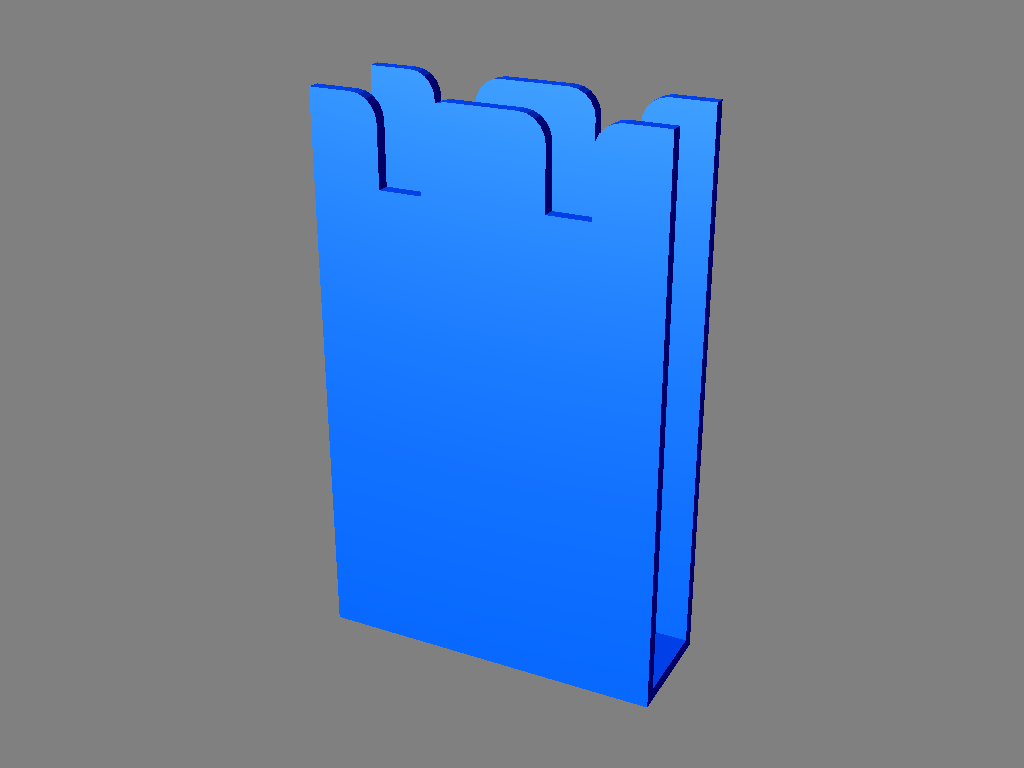

	Case.stl
	Thickness-Gauge-01-mm.stl
	Thickness-Gauge-02-mm.stl
	Thickness-Gauge-04-mm.stl

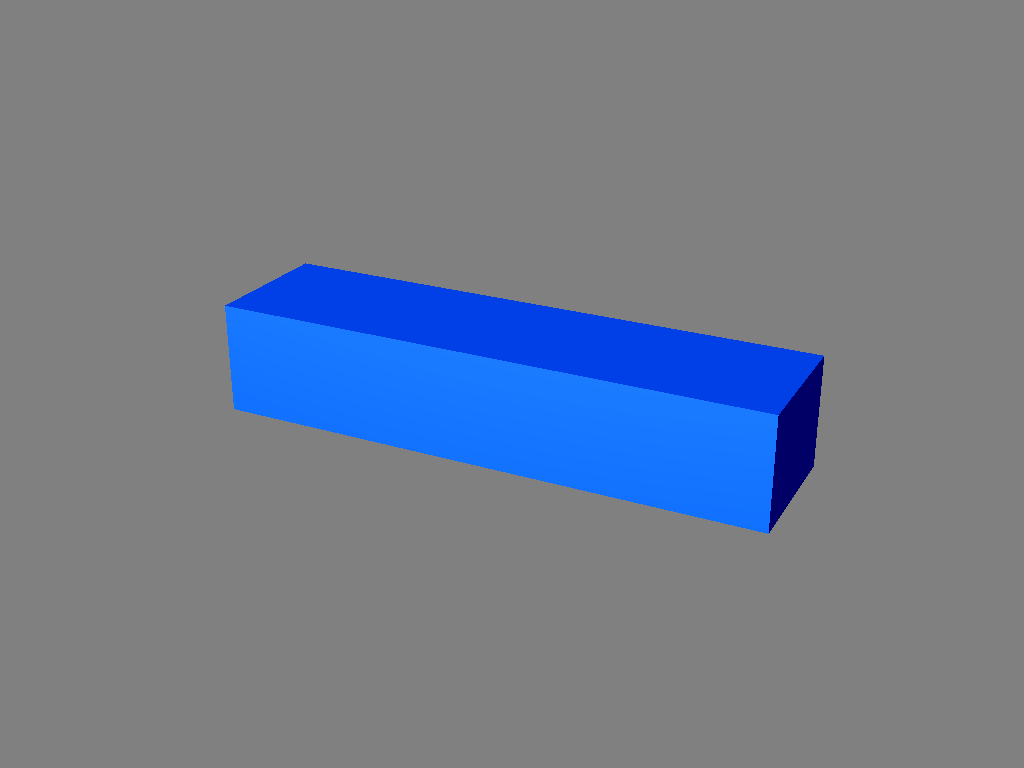

	Thickness-Gauge-08-mm.stl

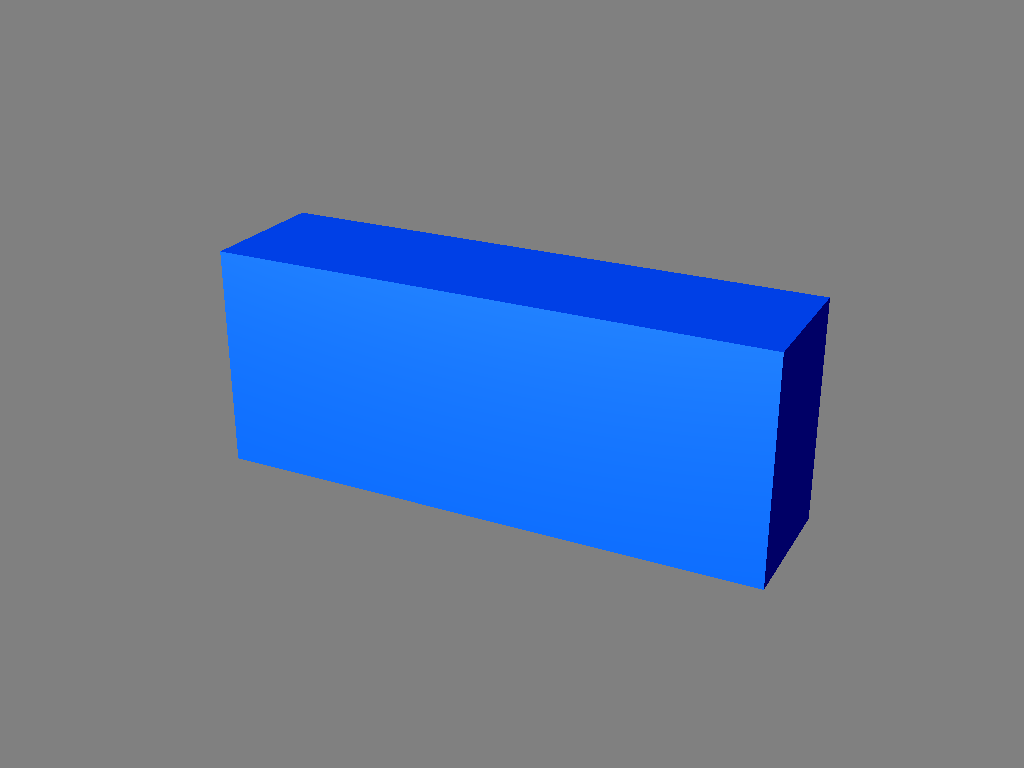

	Thickness-Gauge-16-mm.stl

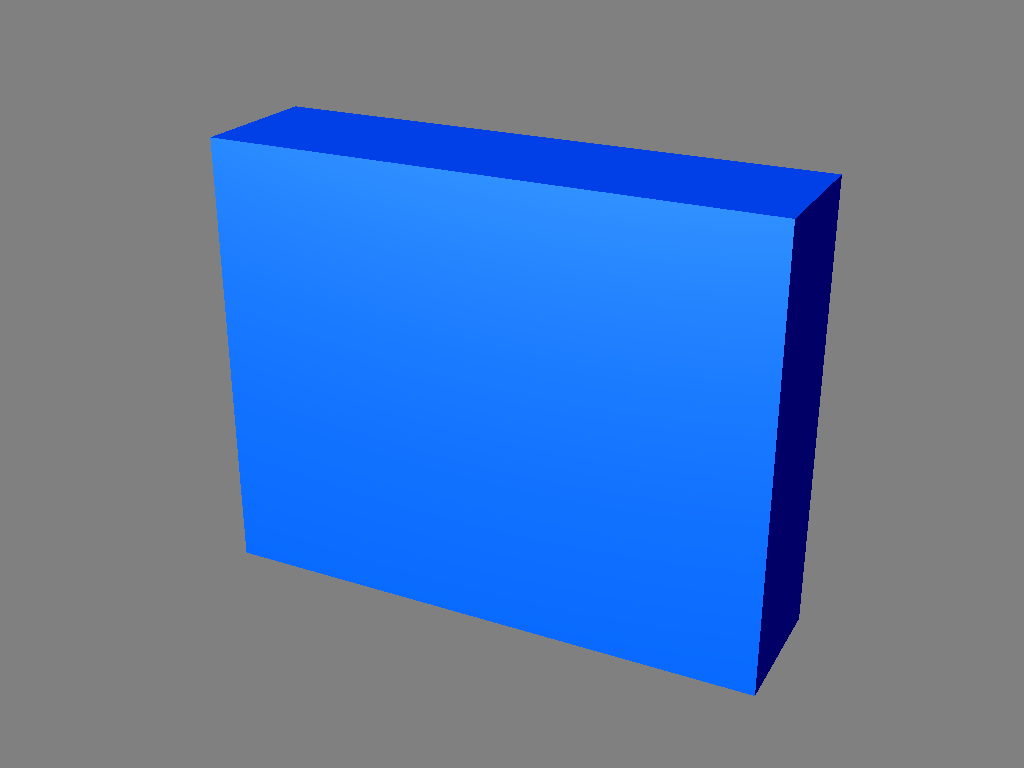

	Thickness-Gauge-32-mm.stl
