Prusa i3 X-Axis Leveling Tool

May 26, 2019 3D Printing object

Description

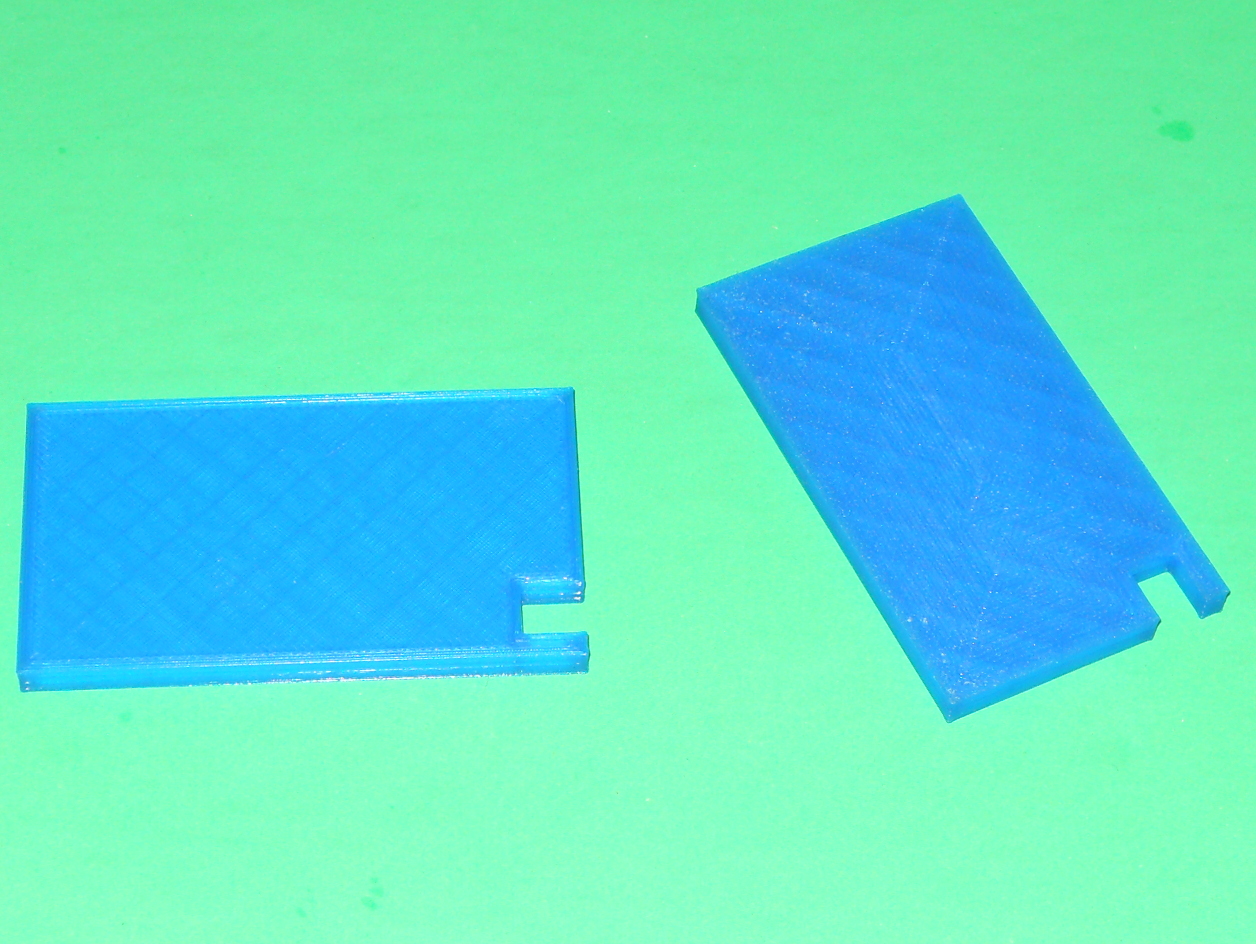

This is a simple tool that will help you level the X-axis of a Prusa i3. You will need to print two of this. You can use them either sitting on the Z frame or the Z motor mounts. On the main picture, they are sitting on the motor mounts. I have lowered the X-axis manually until both tools touch the lower rod of the X-axis.

Support is not needed.

This object was designed using Fusion 360

Files

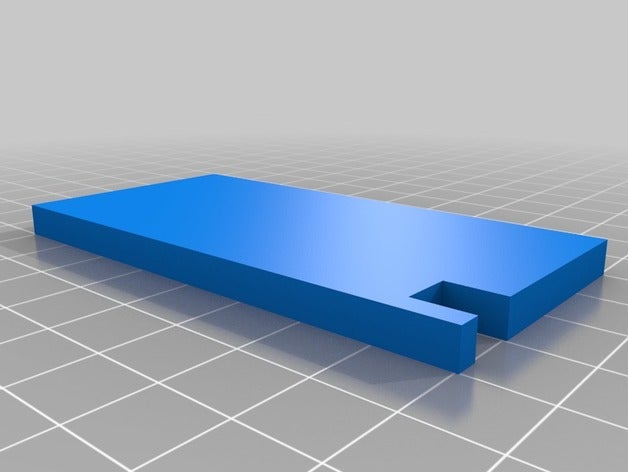

Z-Adjustment-Tool.stl
