Parametric NEMA 17 Motor Storage Box with Cover
Description

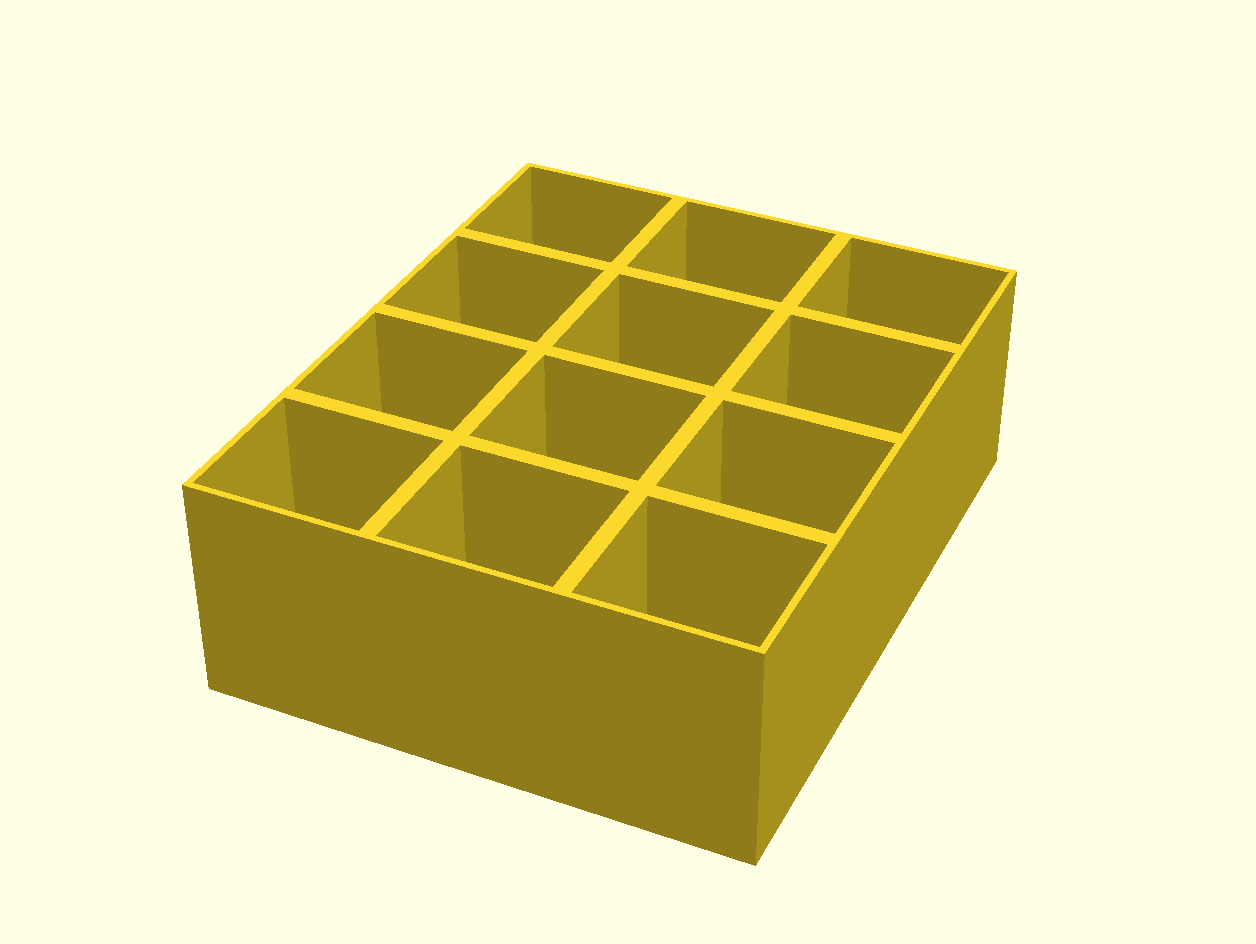

A parametric storage box designed to neatly hold and organize your NEMA 17 stepper motors. The box features a 3x4 grid of compartments, each sized to snugly fit a single motor, plus a matching snap-fit cover to keep everything dust-free and secure.
Included are pre-generated STLs for two common motor depths (65mm and 72mm), along with the source OpenSCAD file so you can customize the compartment count, size, and depth to match your own motors or printer volume. As with any parametric design, double-check the dimensions against your actual motors before printing, and review recommended print settings beforehand.
Files included:
- Nema17StorageBox-65mm.stl — box sized for 65mm-deep motors
- Nema17StorageBox-72mm.stl — box sized for 72mm-deep motors
- Nema17StorageBox-Cover.stl — matching cover for the box
- Nema17StorageBox.3mf — pre-arranged project file with box and cover
- Nema17StorageBox.scad — editable OpenSCAD source for full customization
Files
|
Storage Box - 65mm Motor Length |
|
Storage Box - 72mm Motor Length |
|

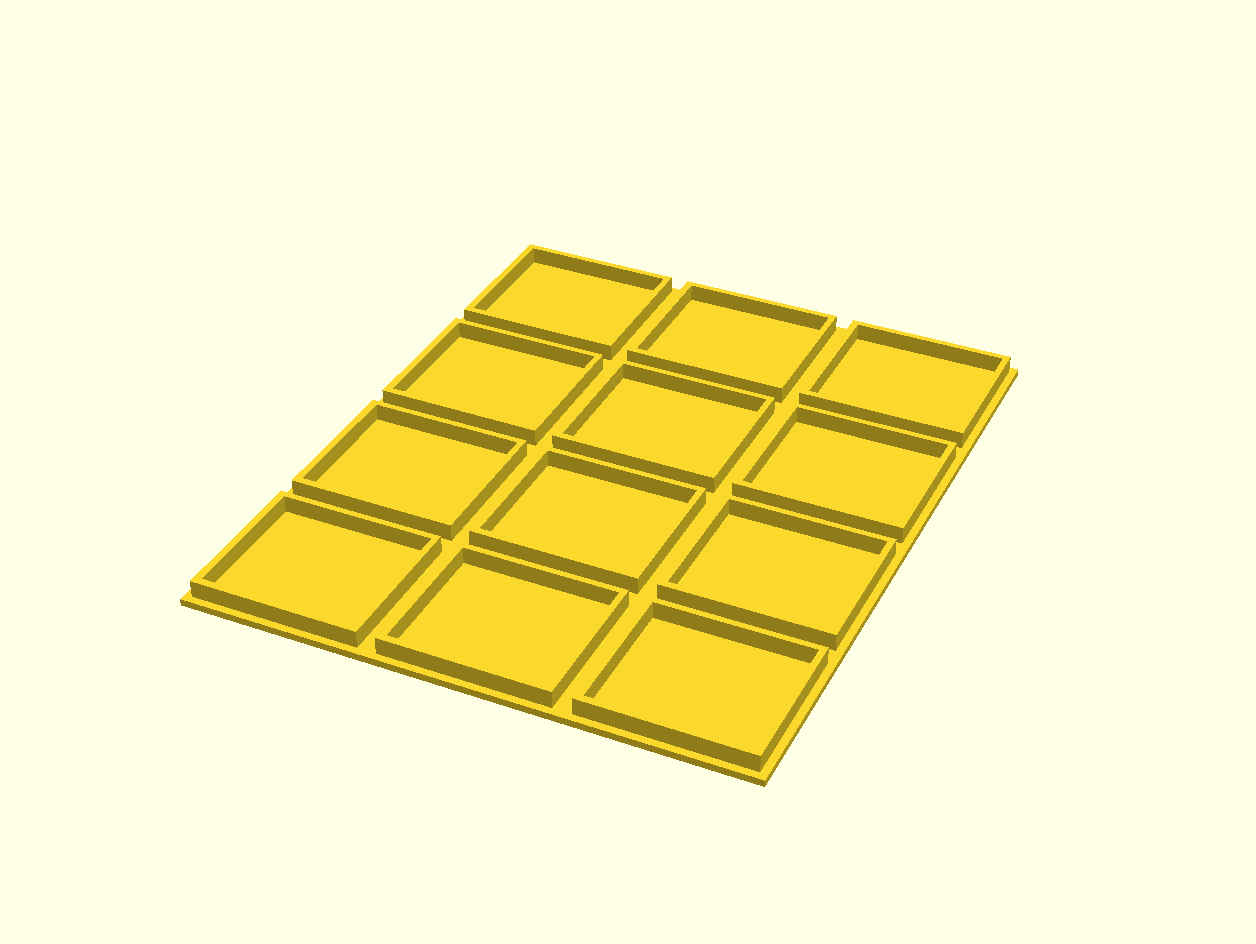

Box Cover / Lid |
|
OpenSCAD Source (Merged Assembly) |
|
|
OpenSCAD Source (Customizable) |
This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.
