Parametric Foot

October 6, 2023 · claude 3D Printing

Description

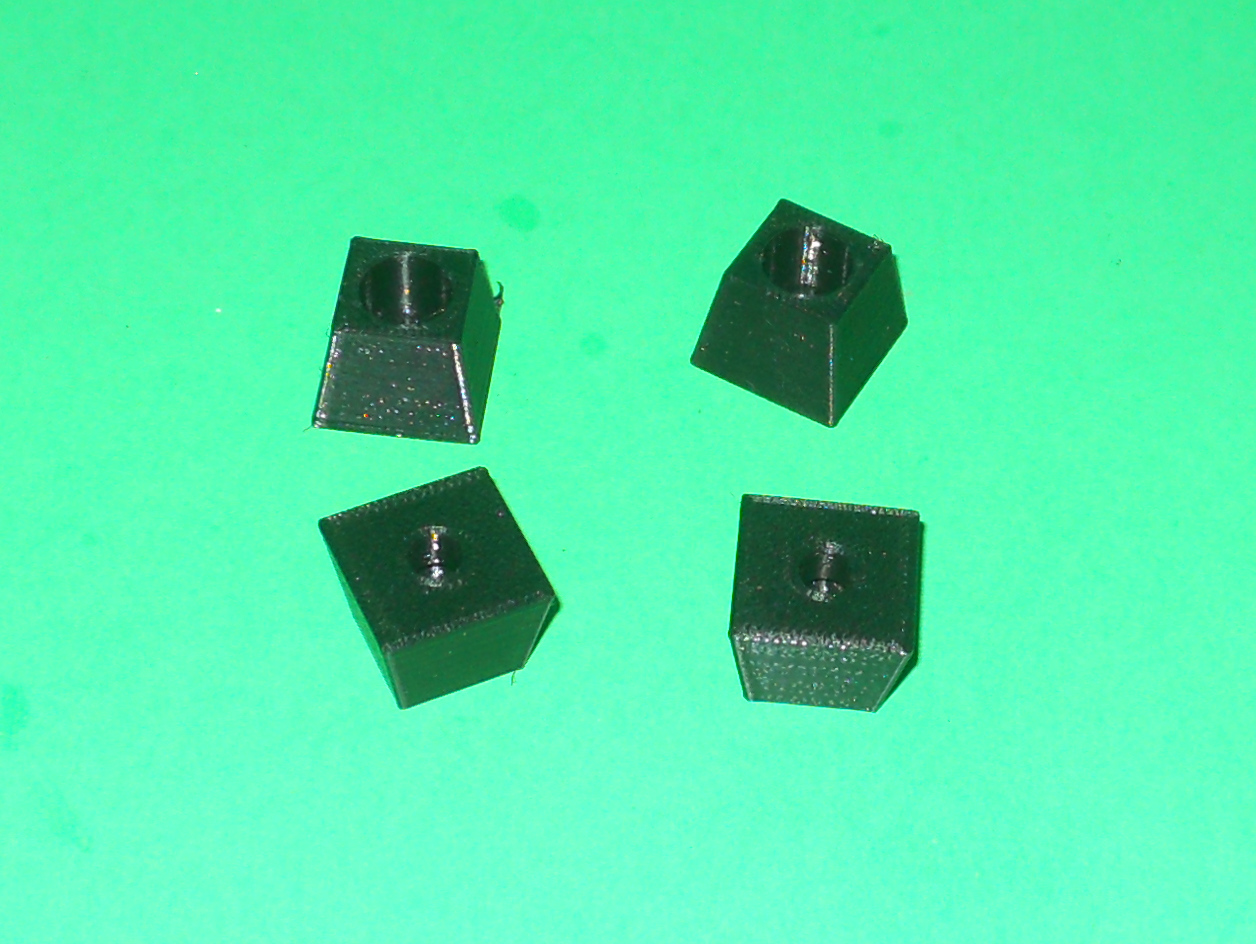

This openSCAD script create feet for projects. It was designed for aluminum extrusion, but can be used for other purposes. The thickness of the sides will have an impact on vibration dampening. TPU is recommended. The given example is for 20 x 20 mm extrusion using a M5 bolt.

Support material is not required. An infill of 15% is recommended.

This object was designed using openSCAD.

Files

	ParametricFeet.scad

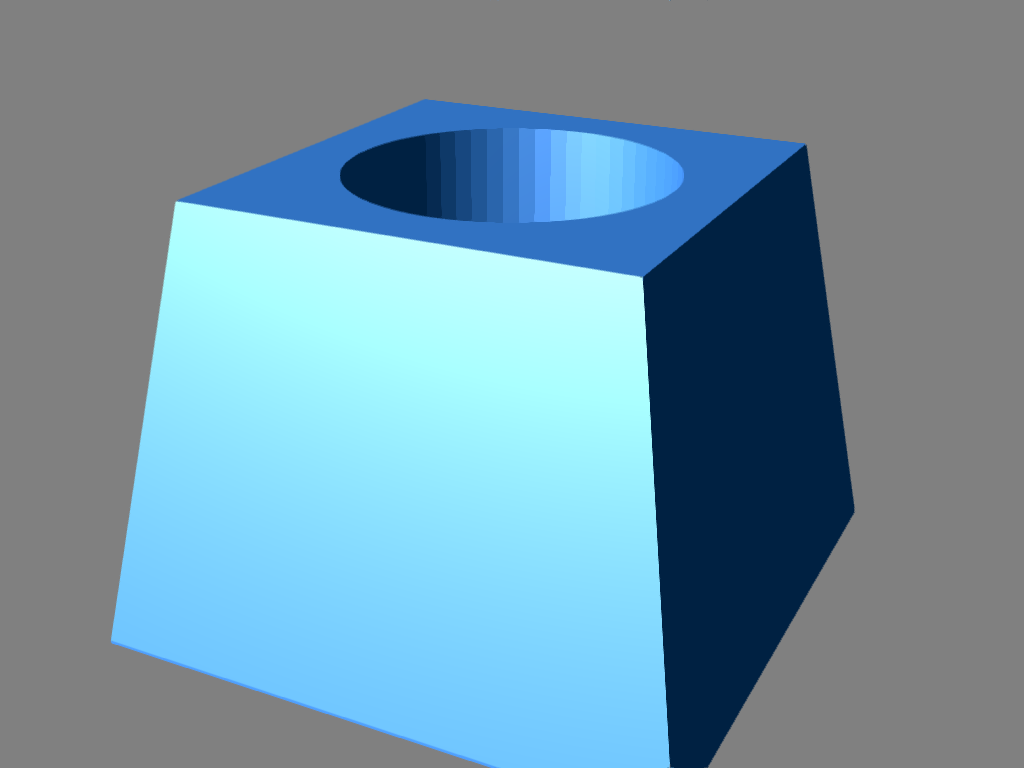

	20-mm-Extrusion-M5-screw.stl

This object is also published on the following site(s):

Printables
Thingiverse

This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.
