Parametric DeWalt Bit Holders

October 21, 2022 · claude 3D Printing

Description

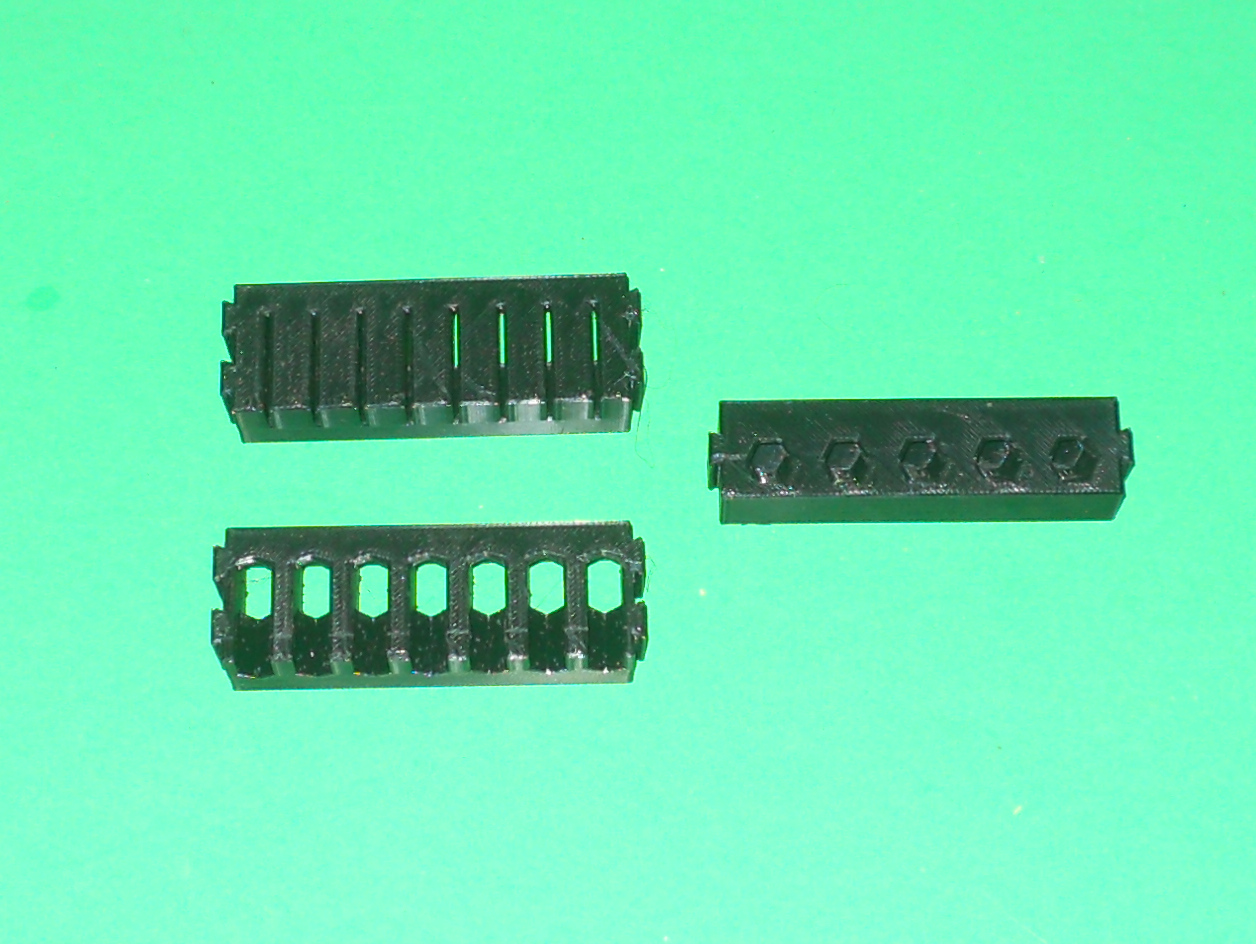

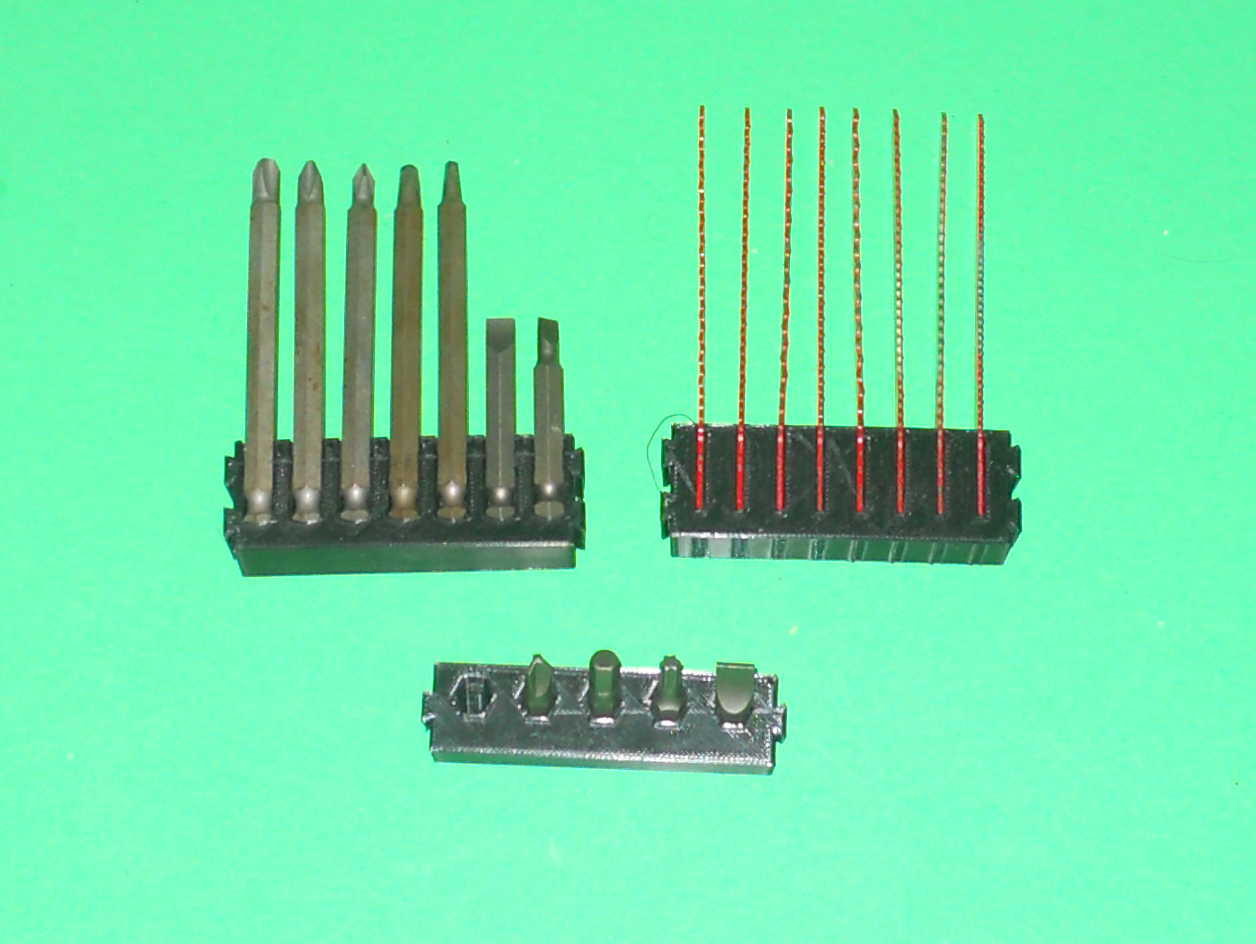

These openSCAD parametric object generates bits and blades holders for the DeWalt Tough Cases.It can generate horizontal hexagonal bit holders, arbitrary angled hexagonal bit holders along with T-blade Jigsaw blade holders. Many parameters are available to customize the holders including but not limited to the width of the holder, the number of bits it can hold based on the width of each bit, the thickness of the blades, and so on.Some STL file examples are provided. You can select to generate various test objects at the beginning of each script prior to printing a complete one in order to adjust the clearance if needed.Comments are given in the script for each parameter. Make sure that the script DeWaltLibrary.scad is in the same folder as the other scripts.These designs are inspired by the designs of Benjamen Johnson (https://www.thingiverse.com/benjamenjohnson/designs). Printed with TPU gives better results. Nevertheless, they can be printer in any material. Support material is not required. An infill of 20% is recommended.

This object was designed using openSCAD.

Files

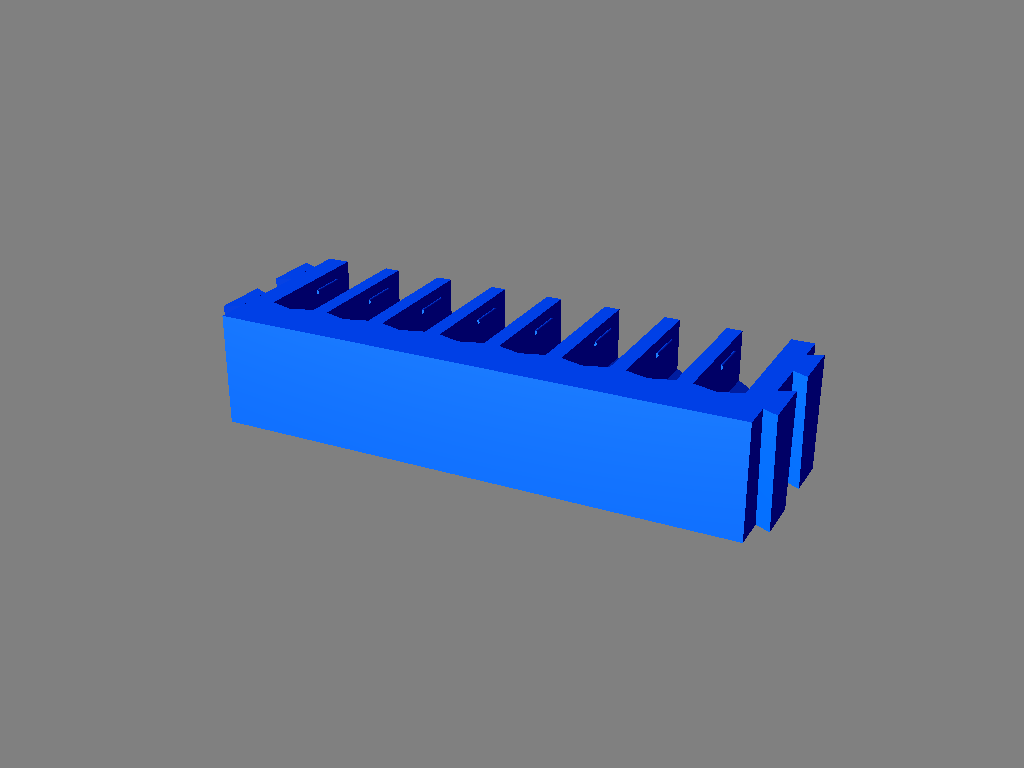

	Hex8Bits.stl

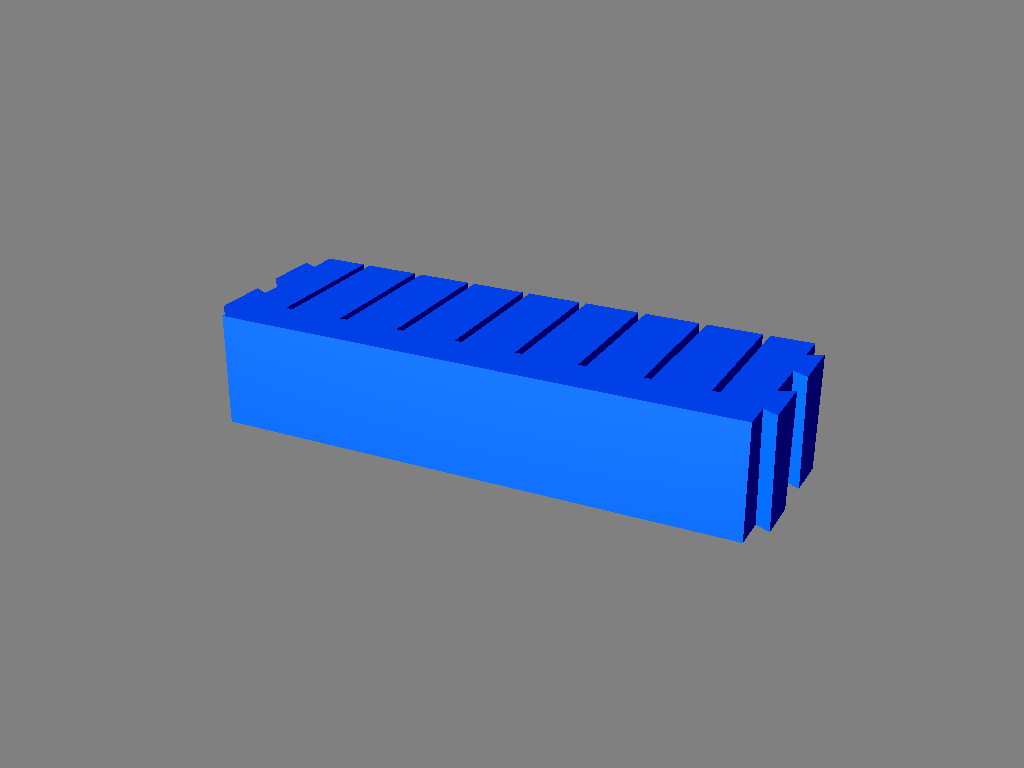

	Blades1mmx8.stl

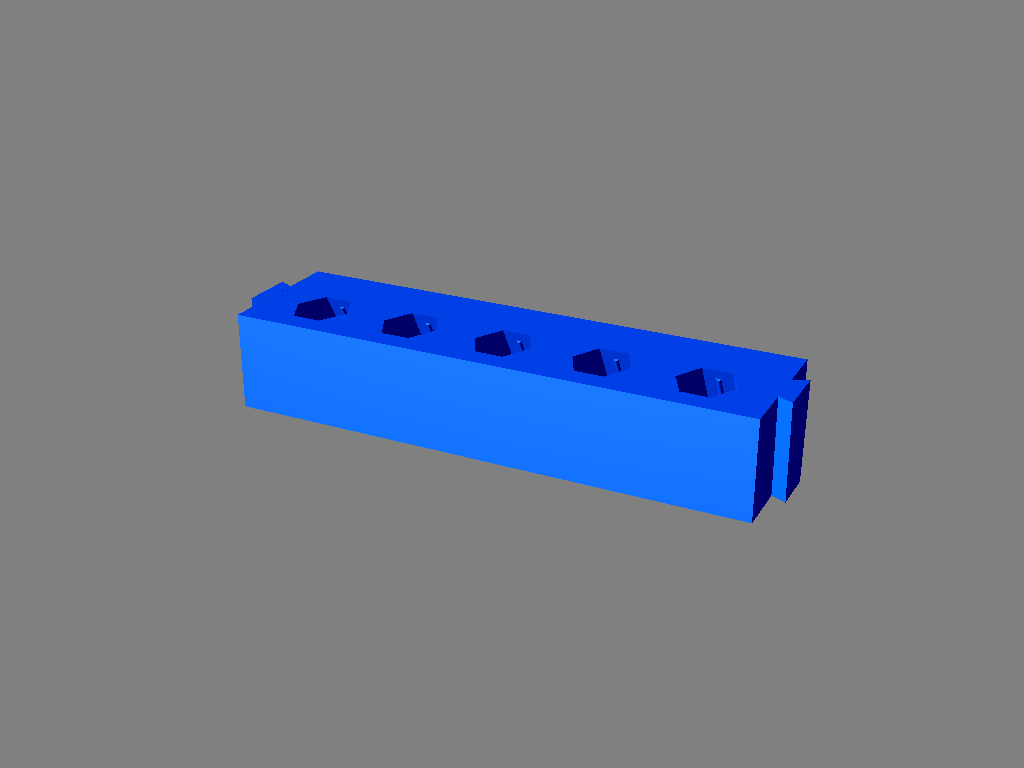

	AngledHex5BitsHolder.stl
	DeWaltLongBitHolder.scad
	DeWaltJigsawBladeHolder.scad
	DeWaltAngledBitHolder.scad
	DeWaltLibrary.scad

This object is also published on the following site(s):

Parametric DeWalt Bit Holders (341)

You may request the source file(s) for this object by posting a comment below. Your email address will be used solely to deliver the requested source file(s) and for no other purpose.

By requesting the source file(s), you are granted permission to:

Share — Copy and redistribute the material, excluding the source file(s), in any medium or format.
Adapt — Remix, transform, and build upon the material.

By requesting the source file(s), you also agree to:

Give appropriate credit, provide a link to the license, and indicate whether changes were made. You may do so in any reasonable manner, provided that it does not suggest that the licensor endorses you or your use.
Not use the material for commercial purposes.
Distribute any derivative works under the same license as the original if you remix, transform, or build upon the material.
Not apply legal terms or technological measures that legally restrict others from exercising the rights granted by the license.
Not upload the source file(s) or any modified versions of the source file(s) to any website or file-sharing service.
The source file(s) are provided for your personal use only. However, you may freely upload and distribute any STL or OBJ files generated from the source file(s).

If you do not agree to all of these conditions, please do not request the source file(s).

Name

Comment

Do you agree to all these conditions?

This form cannot be submitted until 30 seconds have elapsed. You have time to read the conditions and fill out the form.

This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.

Comments

Dave Morgan February 3, 2025

Greetings, your work is excellent and very helpful. Would it be possible to design a version to fit SDS Plus bits? Or could the normal hex-bit version be used for SDS Plus bits?

ctheroux February 8, 2025

Hi, thanks contacting me. Unfortunately, I don't have SDS Plus bits. It's not possible for me to answer your questions.

Ryan June 25, 2023

Please send the files and thank you!!

ctheroux June 25, 2023

Hi, the source files are already available as downloads. These objects were designed using openSCAD. Regards
