Keyes Mosfet Power Control Board Mounting And Drilling Plates

April 14, 2015 3D Printing object
Keyes Mosfet Power Control Board Mounting And Drilling Plates
Keyes Mosfet Power Control Board Mounting And Drilling Plates Keyes Mosfet Power Control Board Mounting And Drilling Plates Keyes Mosfet Power Control Board Mounting And Drilling Plates

Description

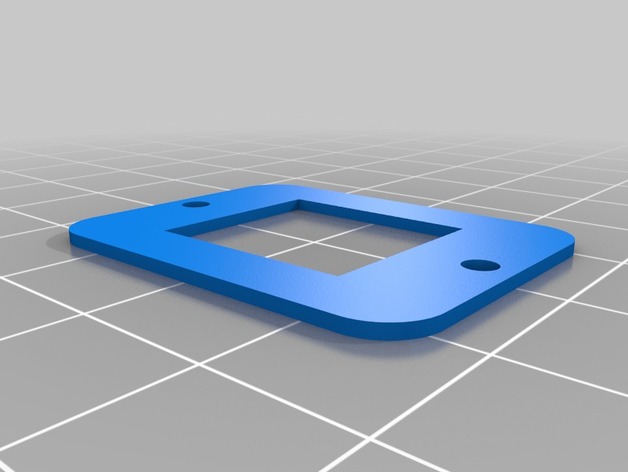

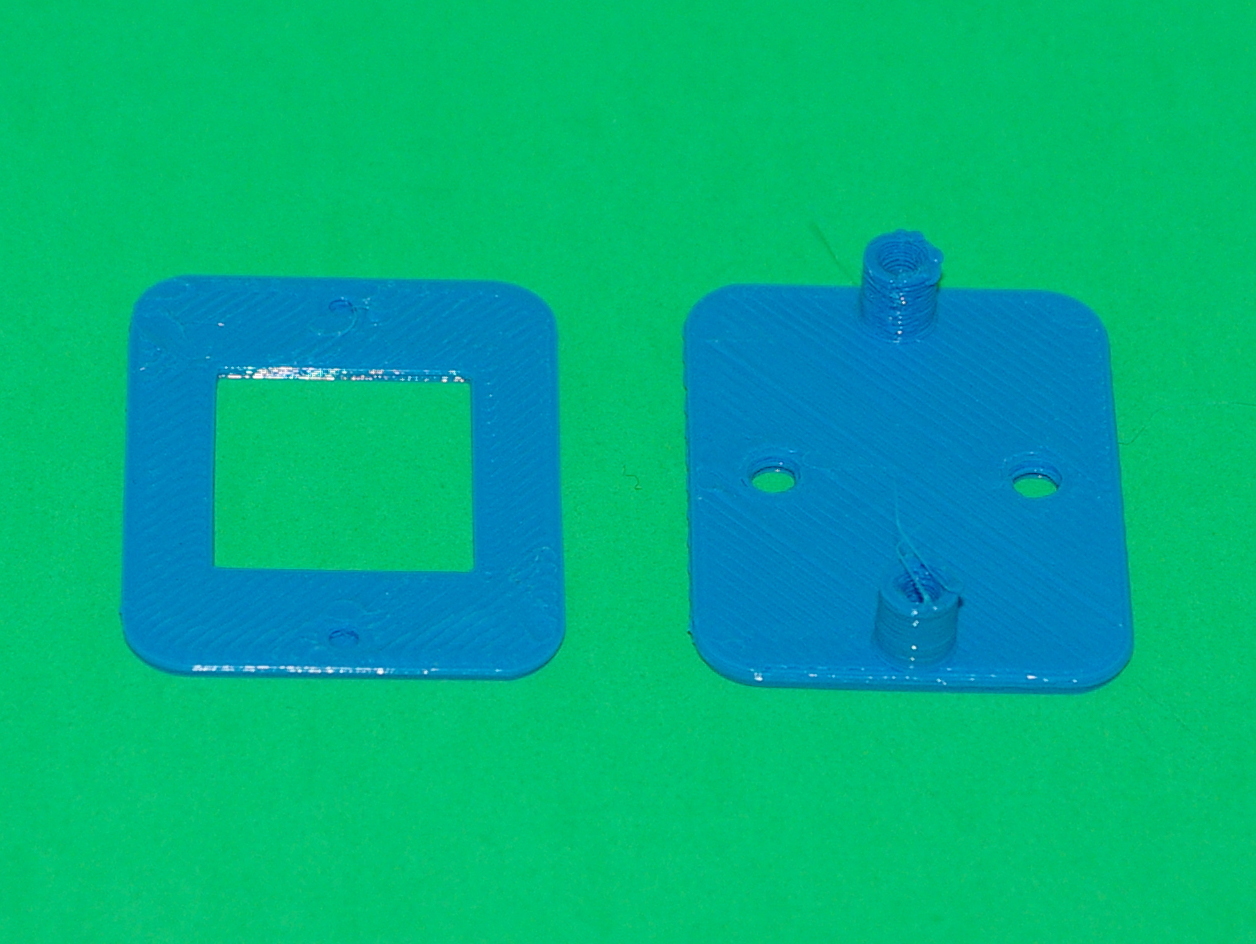

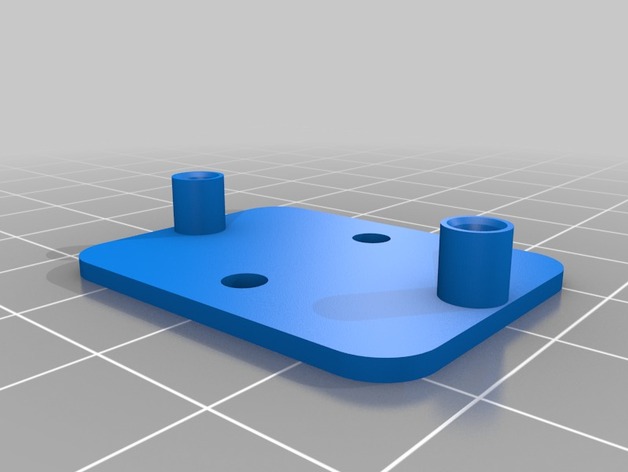

This thing contains a mounting plate and a drilling guide for the “Keyes Mosfet Power Control Board”. The base plate is 1.5 mm thick. M2 5 mm or 1/4″ 4-40 screws are needed to fasten the board to the mounting plate. The mounting holes are three mm in diameter. The holes do not go through the lower layer to make it easier to print. You will have to drill them.

This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.
