Jetson Nano Base with Camera

May 20, 2019 · claude 3D Printing

Description

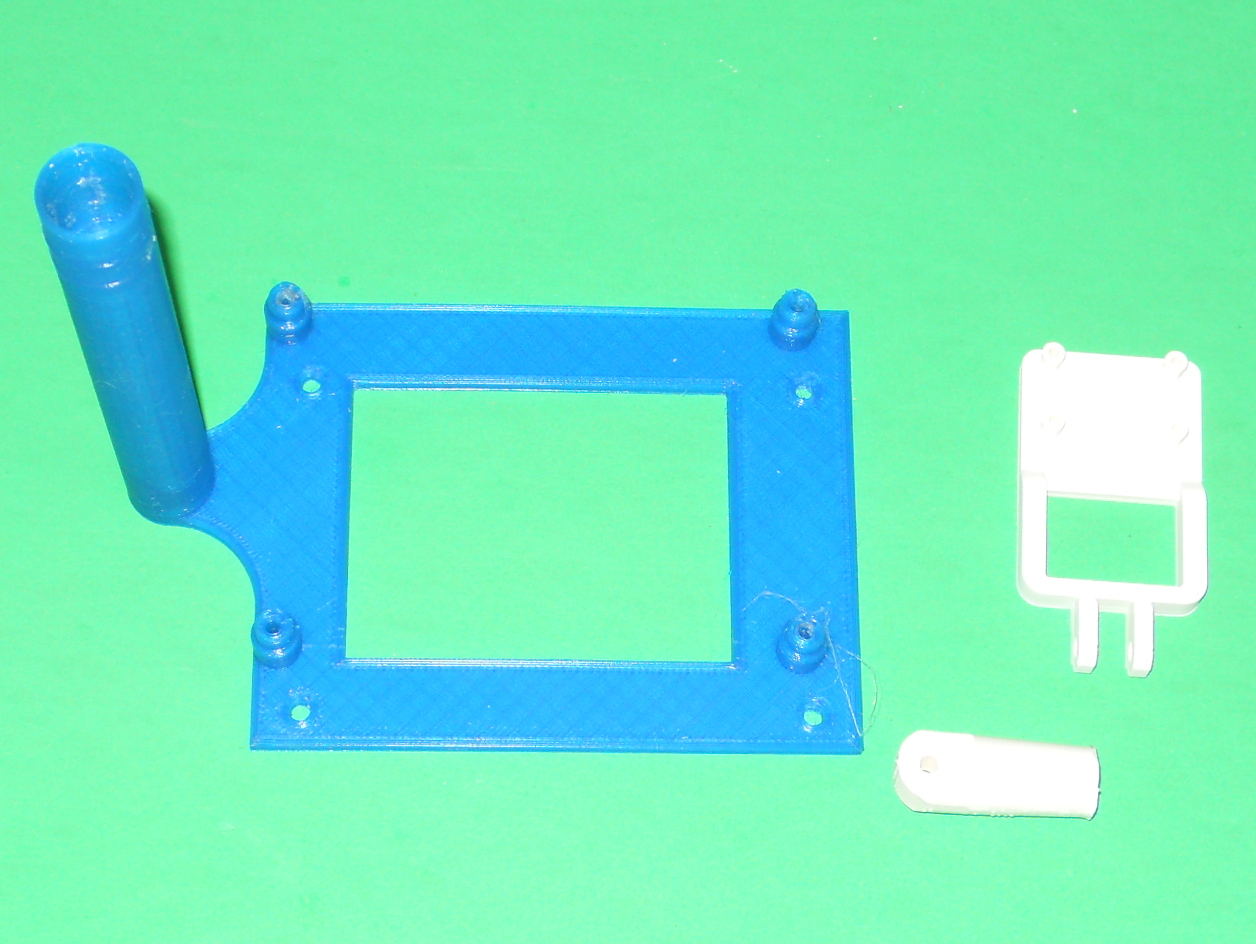

This is a simple base plate for the NVidia Jetson Nano development board along with a Raspberry PI v2.1 camera holder. It can be tilted and panned. To assemble it, you will need:

4 x M3, 6 mm bolts
4 x M2, 4mm bolts
1 x M3, 20 mm with a nut.

No support is required. An infill of 20 to 30% is sufficient. A built in raft is included in the Camera holder model. It must be removed after printing.

This object was designed using Fusion 360

Files

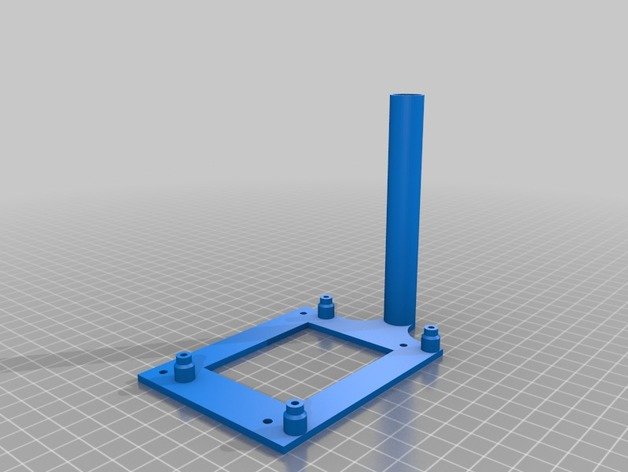

	Base-Plate-with-Camera.stl

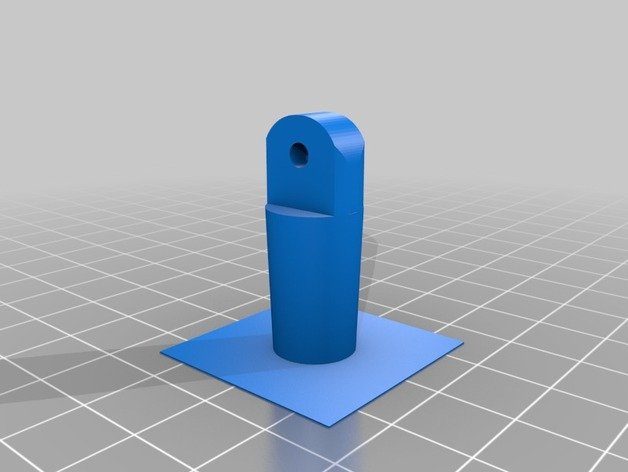

	Camera-Holder.stl

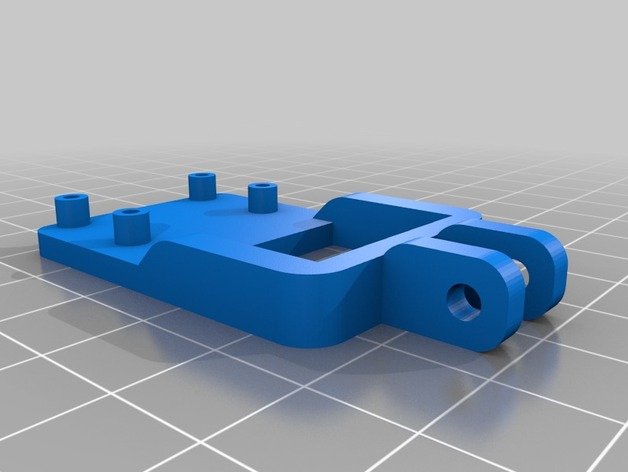

	Camera-Housing.stl
