Ivar FlashLight Holder 2

August 19, 2018 3D Printing object
Ivar FlashLight Holder 2

Ivar FlashLight Holder 2 Ivar FlashLight Holder 2 Ivar FlashLight Holder 2 Ivar FlashLight Holder 2 Ivar FlashLight Holder 2

Description

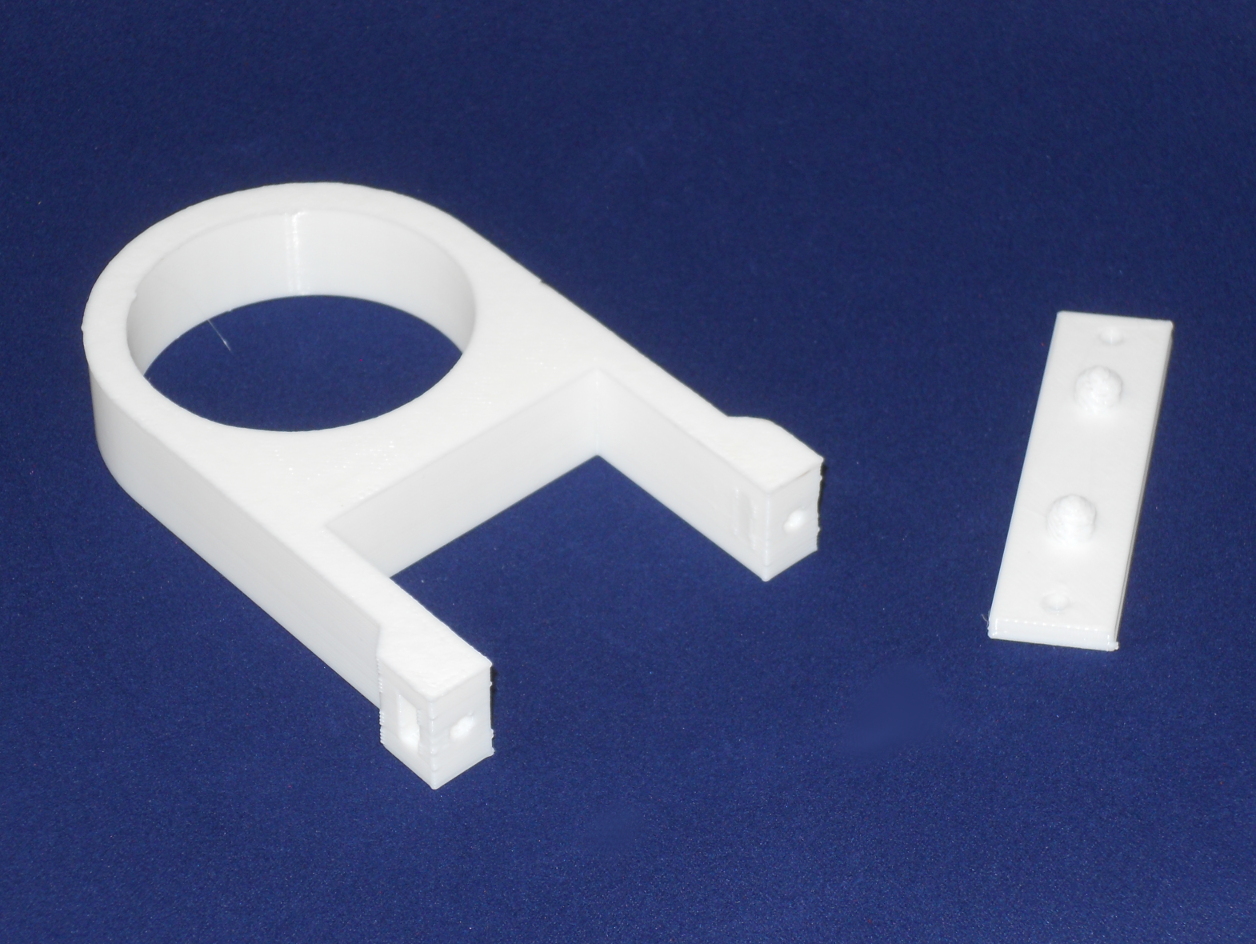

This is a flashlight holder who is installed on the side unit of the Ivar shelving system. The hole holding the flashlight is 4.5 cm in diameter. It fits flashlight that uses D-cell batteries. You will also need 2 #4-40, 3/8" bolts and the matching nuts. Support material is not needed. An infill of 40% is recommended.

This object was designed using Fusion 360


Files

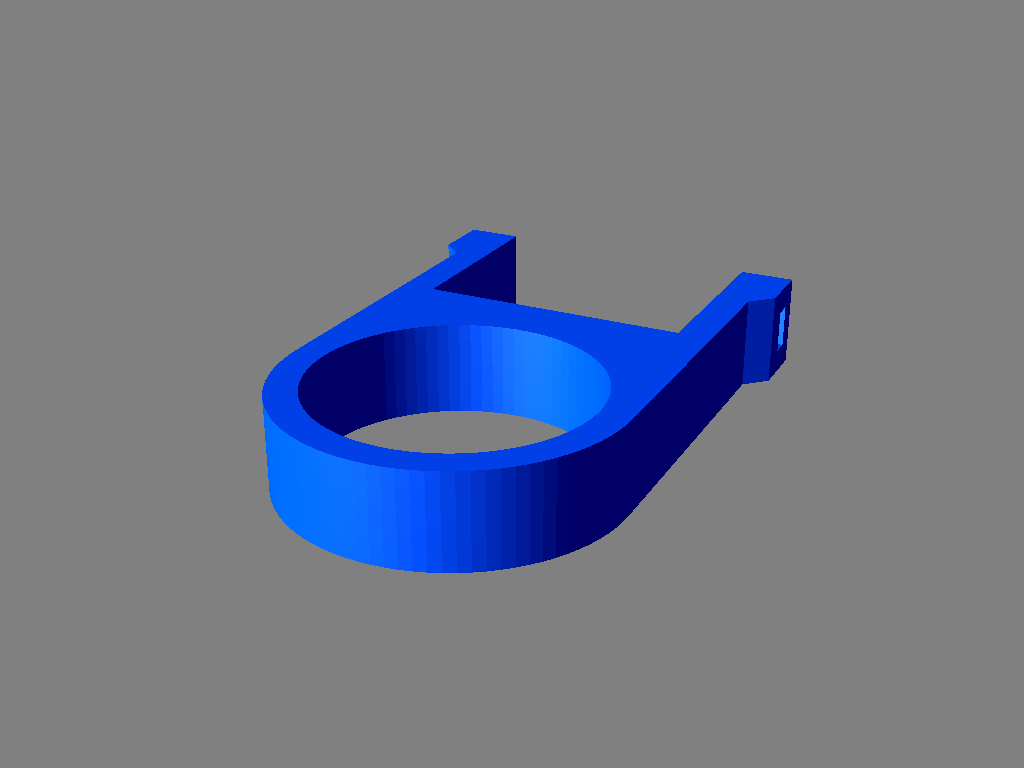

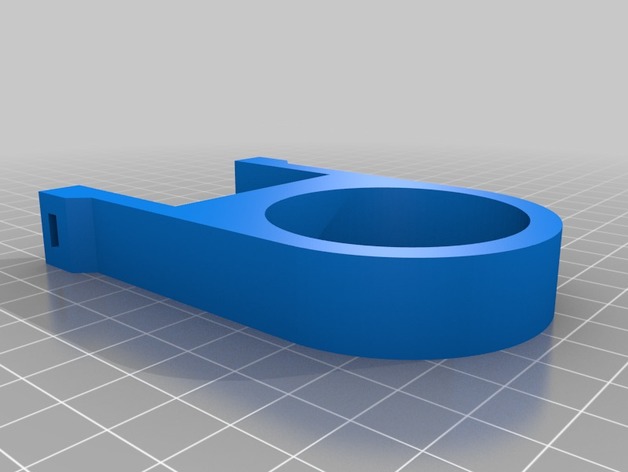

Ivar-FlashLight-2-Main-Body.stl Ivar-FlashLight-2-Main-Body.stl

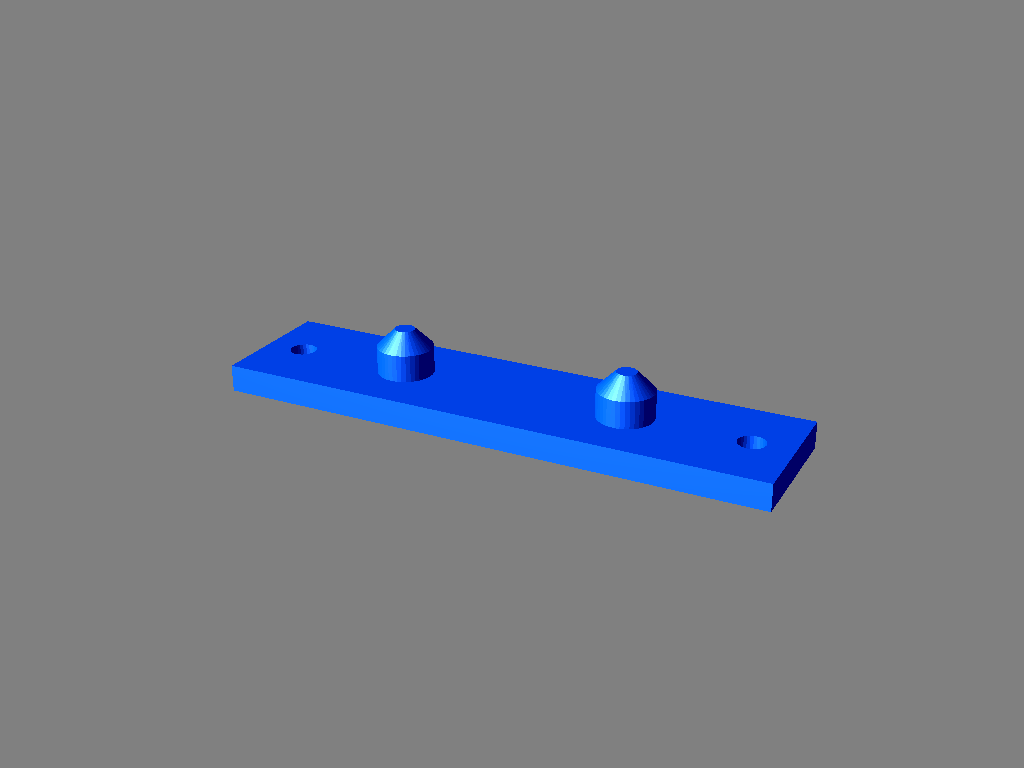

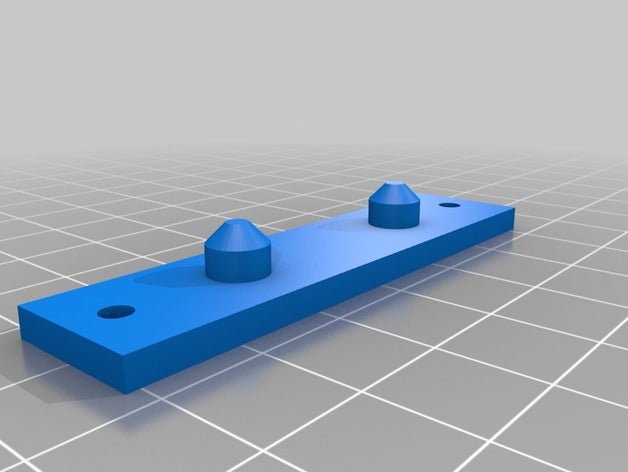

Ivar-FlashLight-2-Base-Plate.stl Ivar-FlashLight-2-Base-Plate.stl

This object is also published on the following site(s):


This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.
