Ikea Skogsta Screwdriver Holders

June 5, 2018 3D Printing object

Description

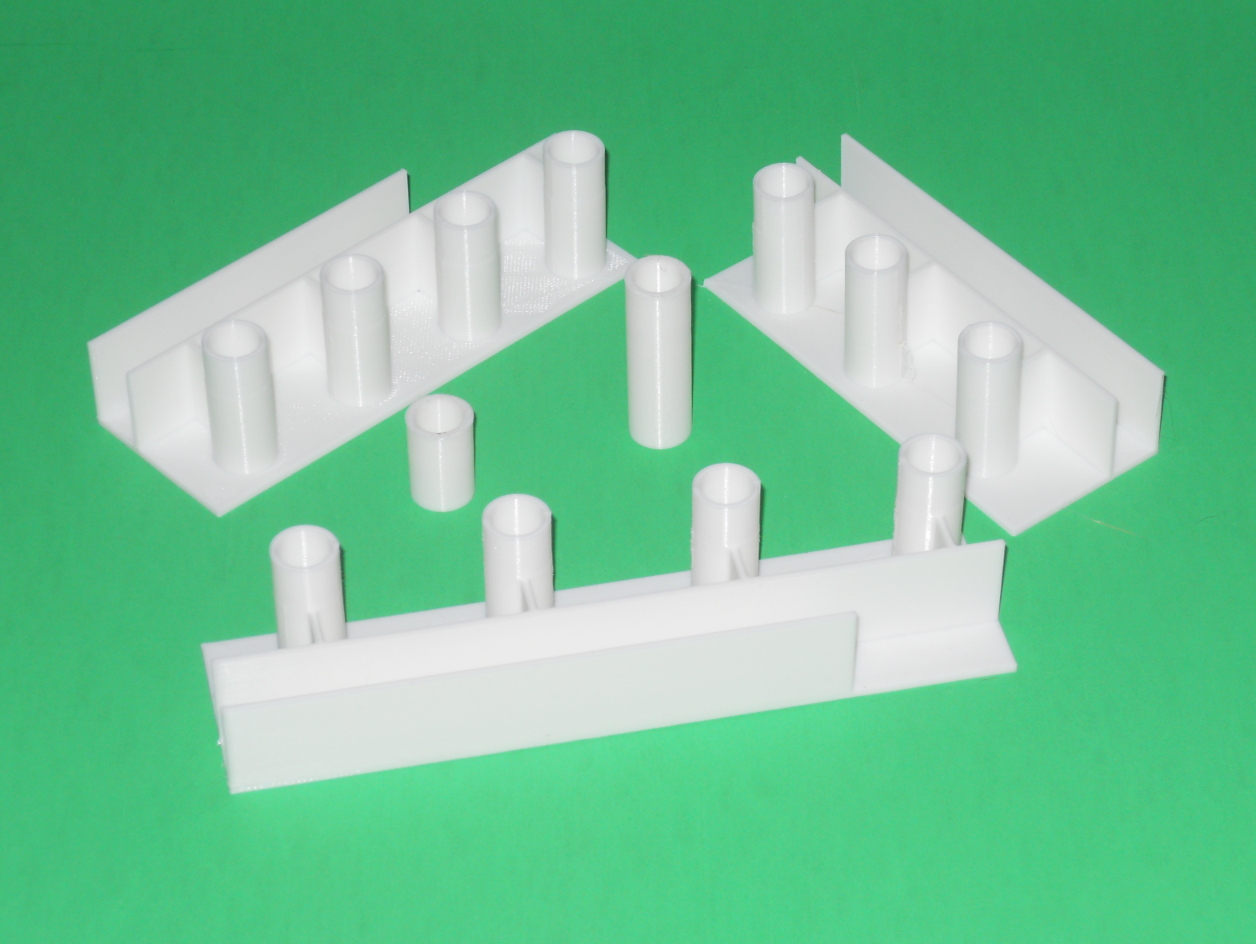

These are screwdriver holders for the Ikea Skogsta tool box. One can hold four screwdrivers. The holes are 40 mm apart from each other. This holder is designed to be placed on the right side. The one designed for the left side can hold four screwdrivers, 30 mm apart from each other. The center one can hold three screws drivers, 35 mm and 30 mm apart from each other.

Holes for the tools are 10 mm in diameter.

The spacers are used to lift tools that are longer so they do not touch the surface where the tool box sits. Use some hot glue to attach them to the screwdriver holders.

The sides are 1.5 mm thick. Print the bins upright with 100% infill along with support.

This object was designed using Fusion 360

Files

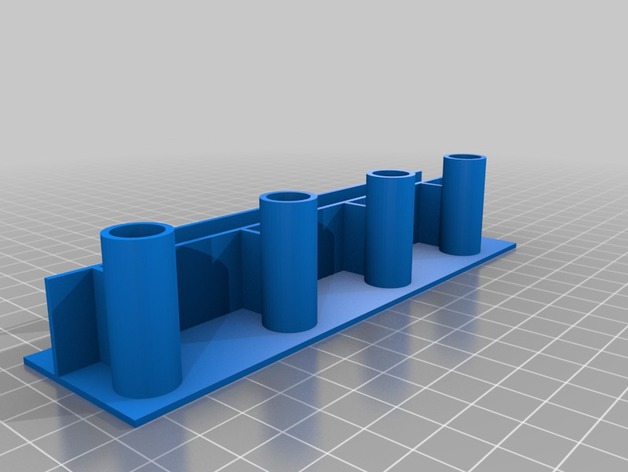

	Screw-Driver-Holder-4cm.stl

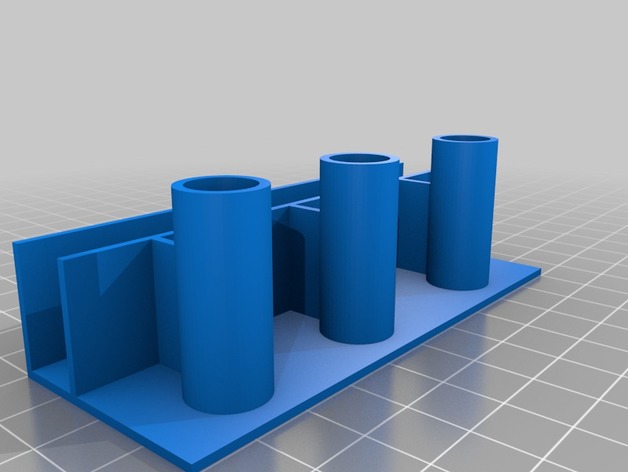

	Screw-Driver-Holder-3cm-3-holes.stl

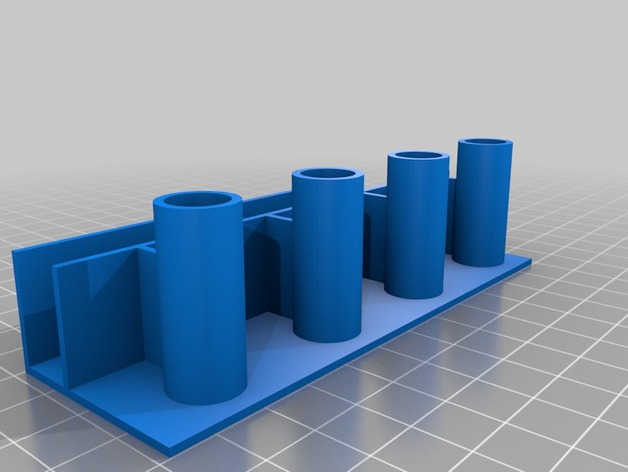

	Screw-Driver-Holder-3cm-4-holes.stl

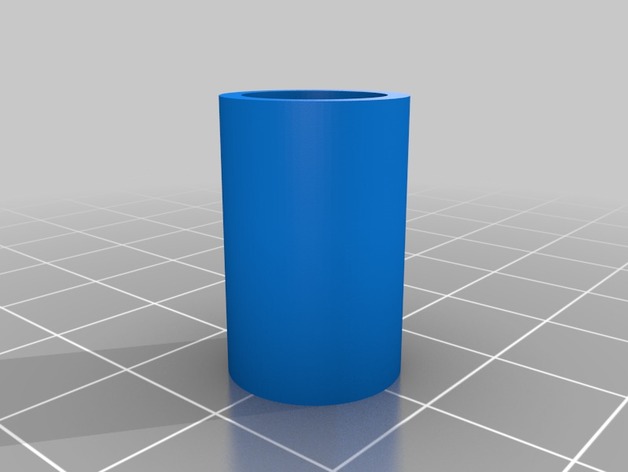

	Long-Tool-Spacer-20-mm.stl

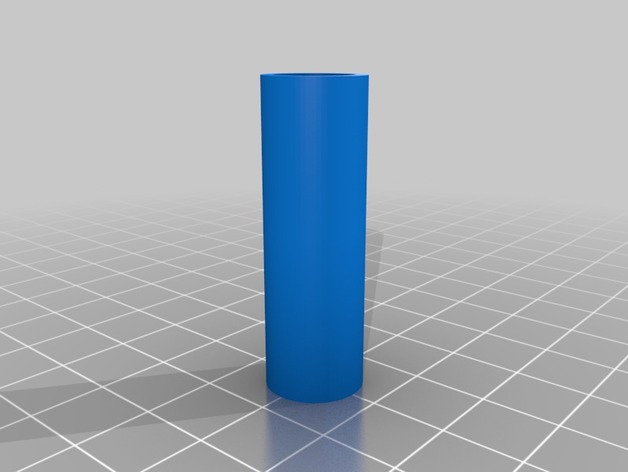

	Long-Tool-Spacer-40-mm.stl
