Ikea Hemma Mounting Bracket

July 15, 2018 · claude 3D Printing

Description

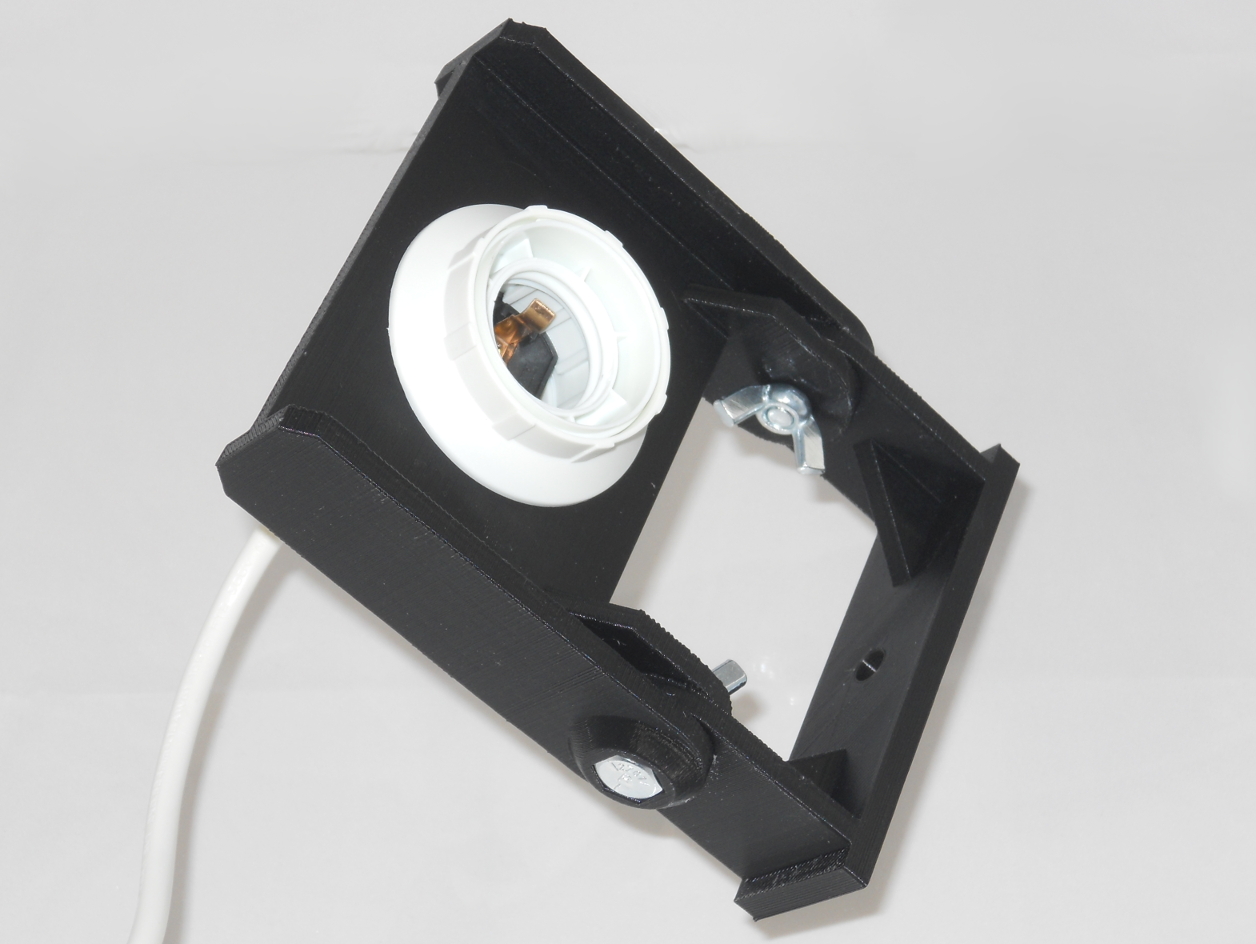

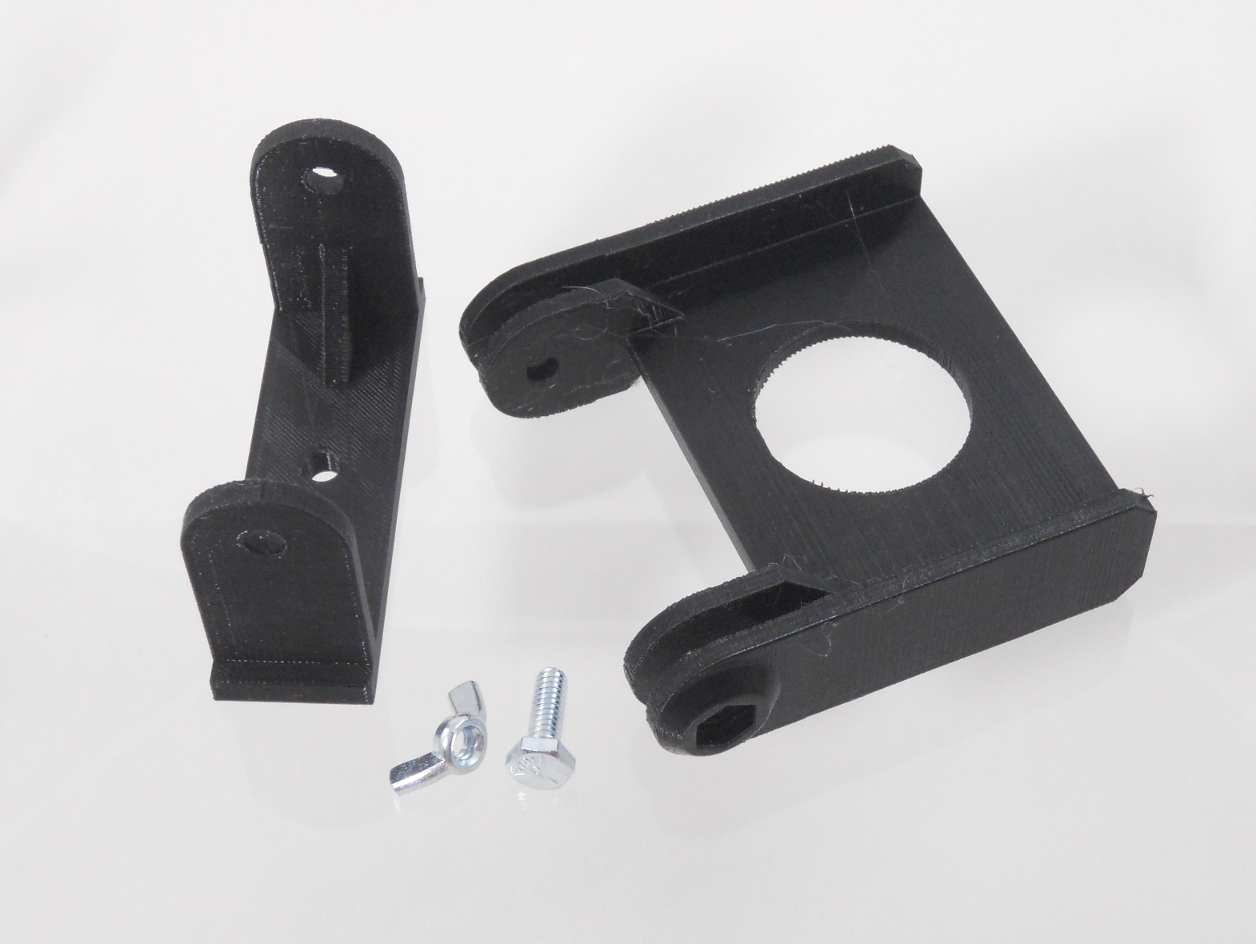

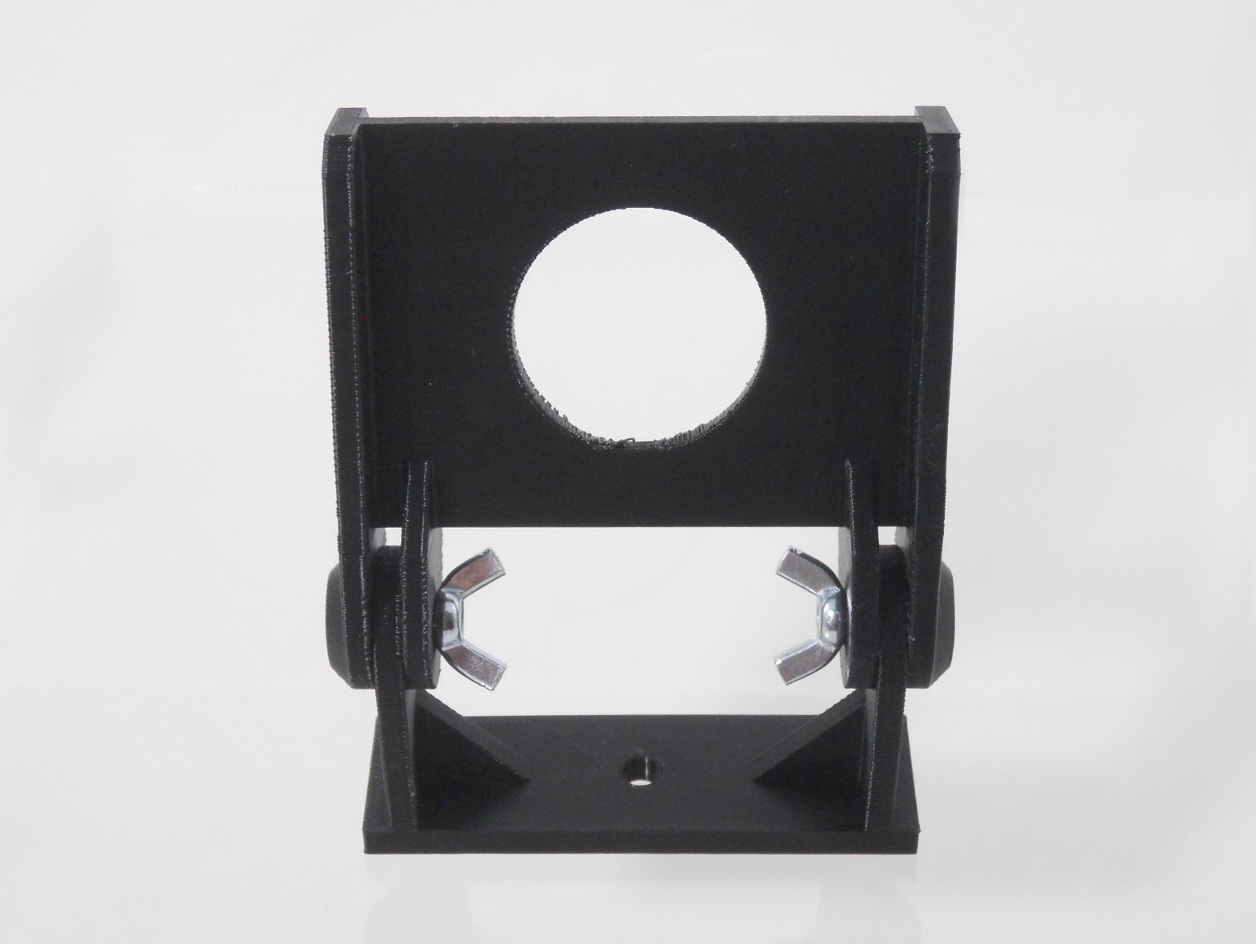

This is a mounting bracket for the Ikea Hemma light socket (E26). It is articulated in the Z axis. You will also need 2 hex bolts (1/4" x 3/4" or any equivalent) and the 2 matching butterfly nuts in order to assemble it.

There is a 7 mm hole in the base to mount the bracket on a device such a tripod, etc. The base is 10 cm x 3cm. The overall height of the bracket is 14 cm.

The holder should be printed upside down. A brim might be required. I did not needed it.

They can be printed without support.

This object was designed using Fusion 360

Files

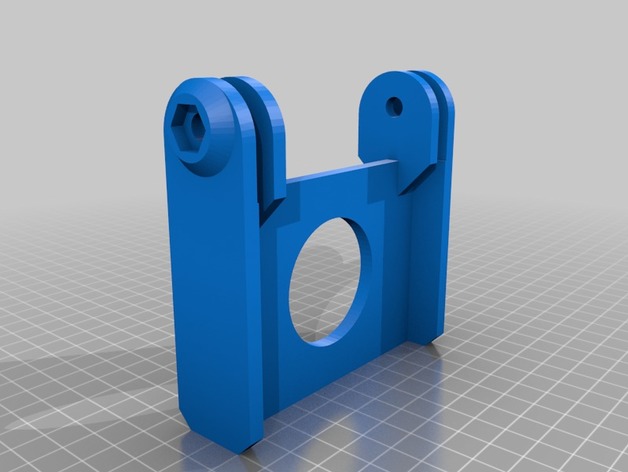

	Holder.stl

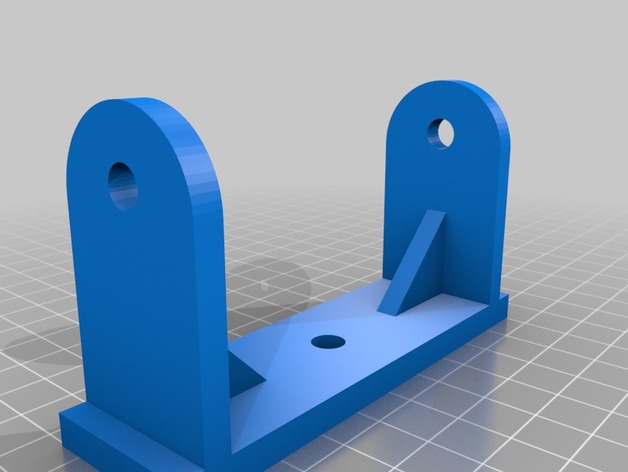

	Base.stl
