Ikea Bror Caster Holder V02

July 6, 2024 3D Printing object

Description

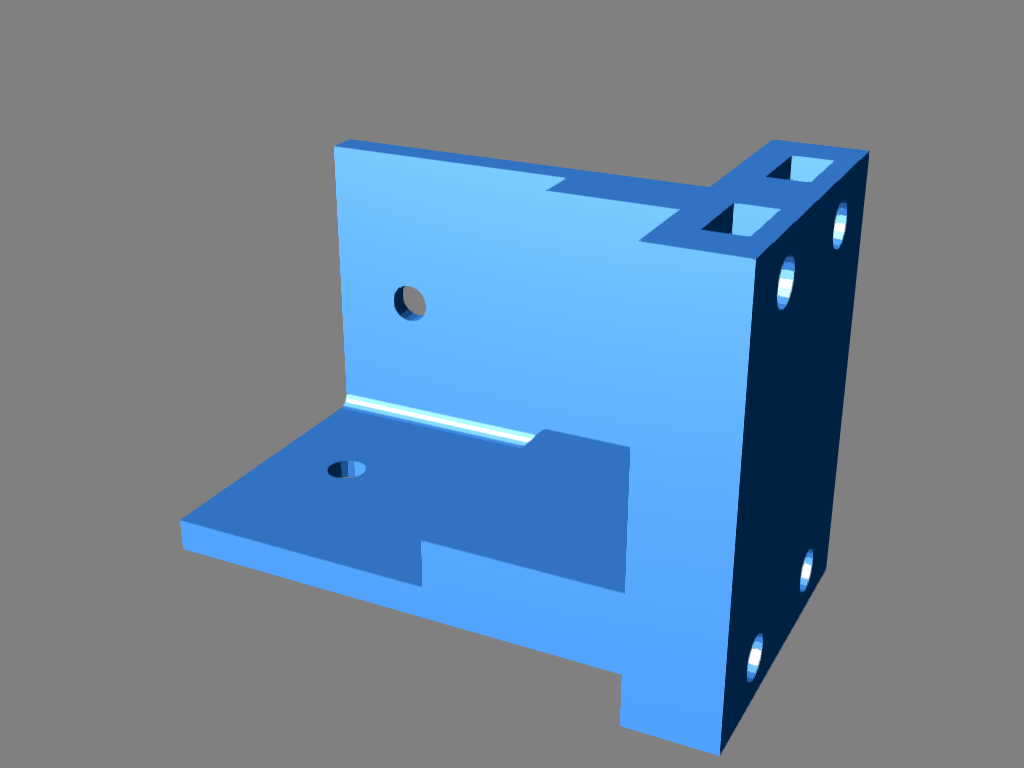

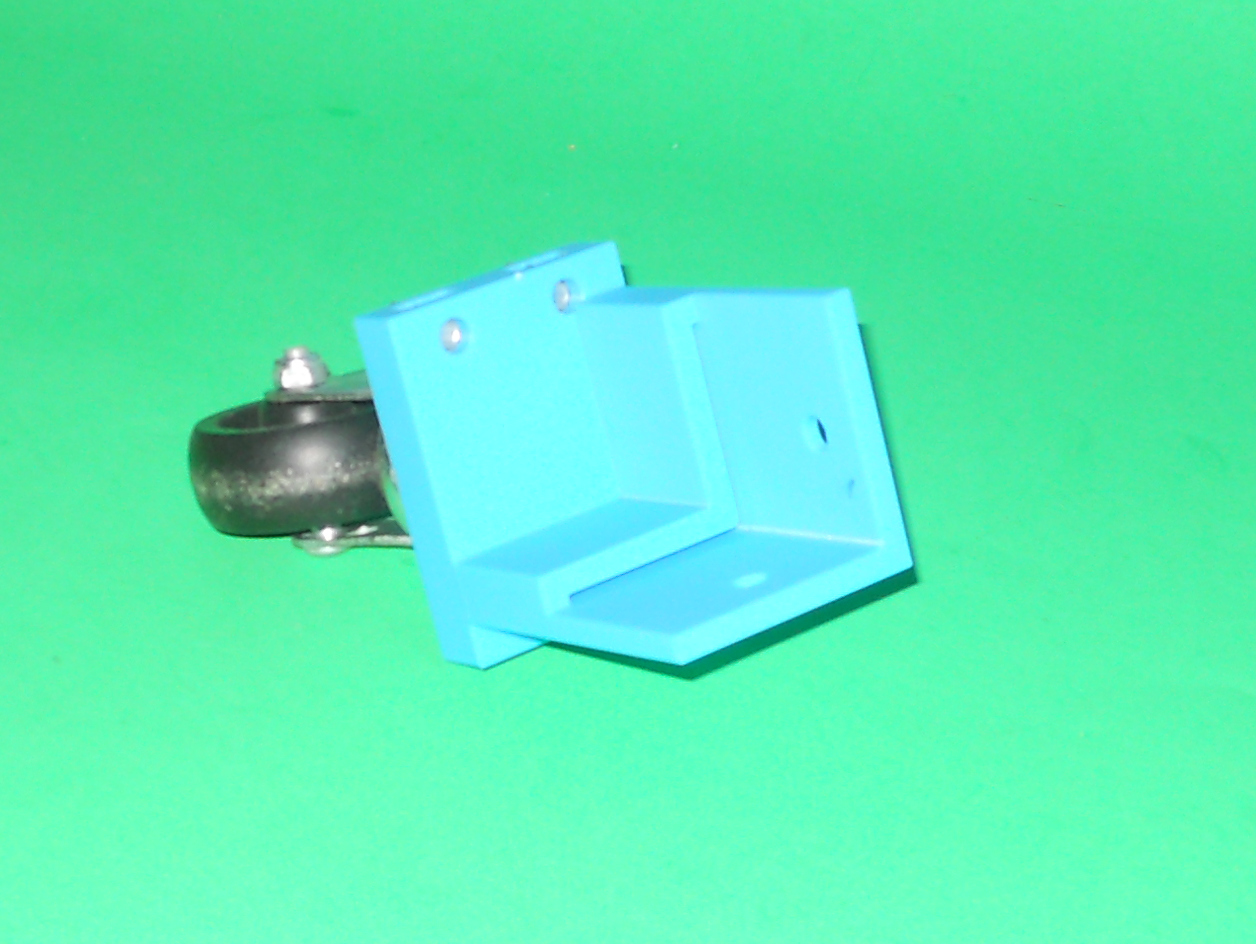

This object lets you install casters to a Bror workbench. This is a new version of my previous design ( http://www.ctheroux.com/ikea-bror-caster-holder/ ). It is more robust. This design was inspired from the design of Arek ( https://www.printables.com/model/453244-ikea-bror-wheel-caster-mount ). It is designed for 1-7/8" (48.5 mm) x 2-9/16" (65.5 mm) casters. The holes for the bolts are 2-1/8" (54 mm) x 1" (25 mm) apart. The bolts I used are 1/4" (6.25 mm) in diameter, 1/2" (12.5 mm) long.

This object works very well for me. Nevertheless, YOU must make sure that this object can handle the usage you will make of it. Many factors may contribute to making this object fail. The quality of the print, the strength of the casters, and so on. You are solely responsible for using it.

Printing them at 45 degrees will make them way stronger. You'll need to print 2 that has been mirrored. Support material is not needed. An infill of 35% is recommended.

This object was designed using Solid Edge Community Edition.

Files

IkeaBrorCasterHolderV02.stl

This object is also published on the following site(s):

Ikea Bror Caster Holder V02 (411)

You may request the source file(s) for this object by posting a comment below. Your email address will be used solely to deliver the requested source file(s) and for no other purpose.

By requesting the source file(s), you are granted permission to:

Share — Copy and redistribute the material, excluding the source file(s), in any medium or format.
Adapt — Remix, transform, and build upon the material.

By requesting the source file(s), you also agree to:

Give appropriate credit, provide a link to the license, and indicate whether changes were made. You may do so in any reasonable manner, provided that it does not suggest that the licensor endorses you or your use.
Not use the material for commercial purposes.
Distribute any derivative works under the same license as the original if you remix, transform, or build upon the material.
Not apply legal terms or technological measures that legally restrict others from exercising the rights granted by the license.
Not upload the source file(s) or any modified versions of the source file(s) to any website or file-sharing service.
The source file(s) are provided for your personal use only. However, you may freely upload and distribute any STL or OBJ files generated from the source file(s).

If you do not agree to all of these conditions, please do not request the source file(s).

Name

Comment

Do you agree to all these conditions?

This form cannot be submitted until 30 seconds have elapsed. You have time to read the conditions and fill out the form.

This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.

Comments

Elizabeth Van Orden February 23, 2026

Would you mind sharing the source files? These holes are an inch off for the Bror Workbench with drawers so I need to extend the design.

ctheroux April 18, 2026

Hi, sorry for the late response. You will receive them shortly. Regards

Myrdhin August 27, 2024

Hello,

Very goid work 👍. I was wondering if it would be possible for you to adapt your model to fit the "Rill" casters from Ikea. I would have loved to do it myself, but I unfortunately lack any skills in 3D modeling.

Thank you very much for considering my request.

Best regards,

ctheroux September 14, 2024

Hi, thanks for the comment. Sorry for the late response. Unfortunately, I don't own these casters. Nevertheless, if you send me the distances between the centre of the holes, I might be able to easily update the model.
