Description

The FLSun Cube 3D printer does not come with an X-Axis belt tensioner. So, I designed one. The design is simple but very effective.

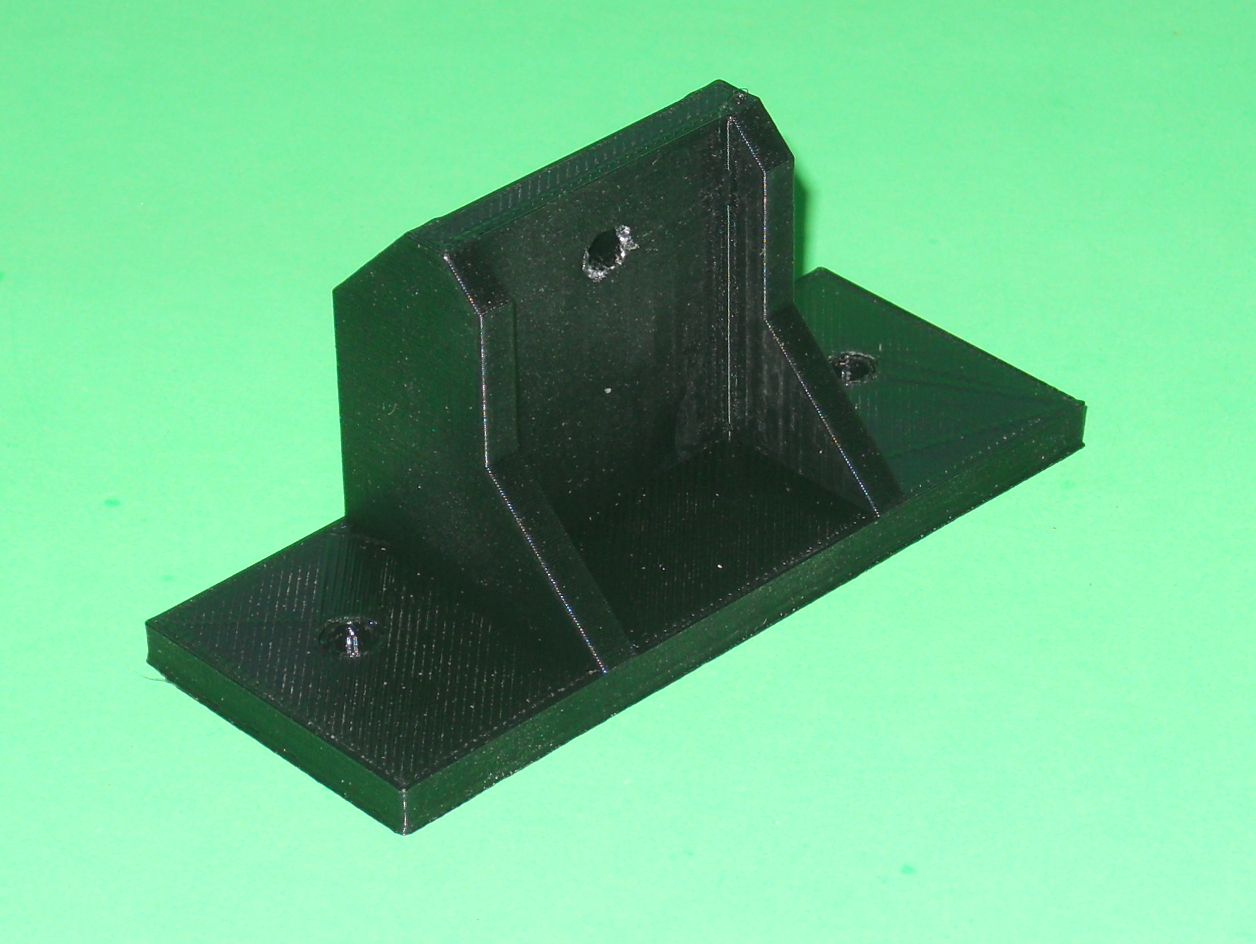

It is mounted using the nuts and bolts of the outer linear bearings. Nevertheless, you will need longer bolts. M4 x 20mm works great.

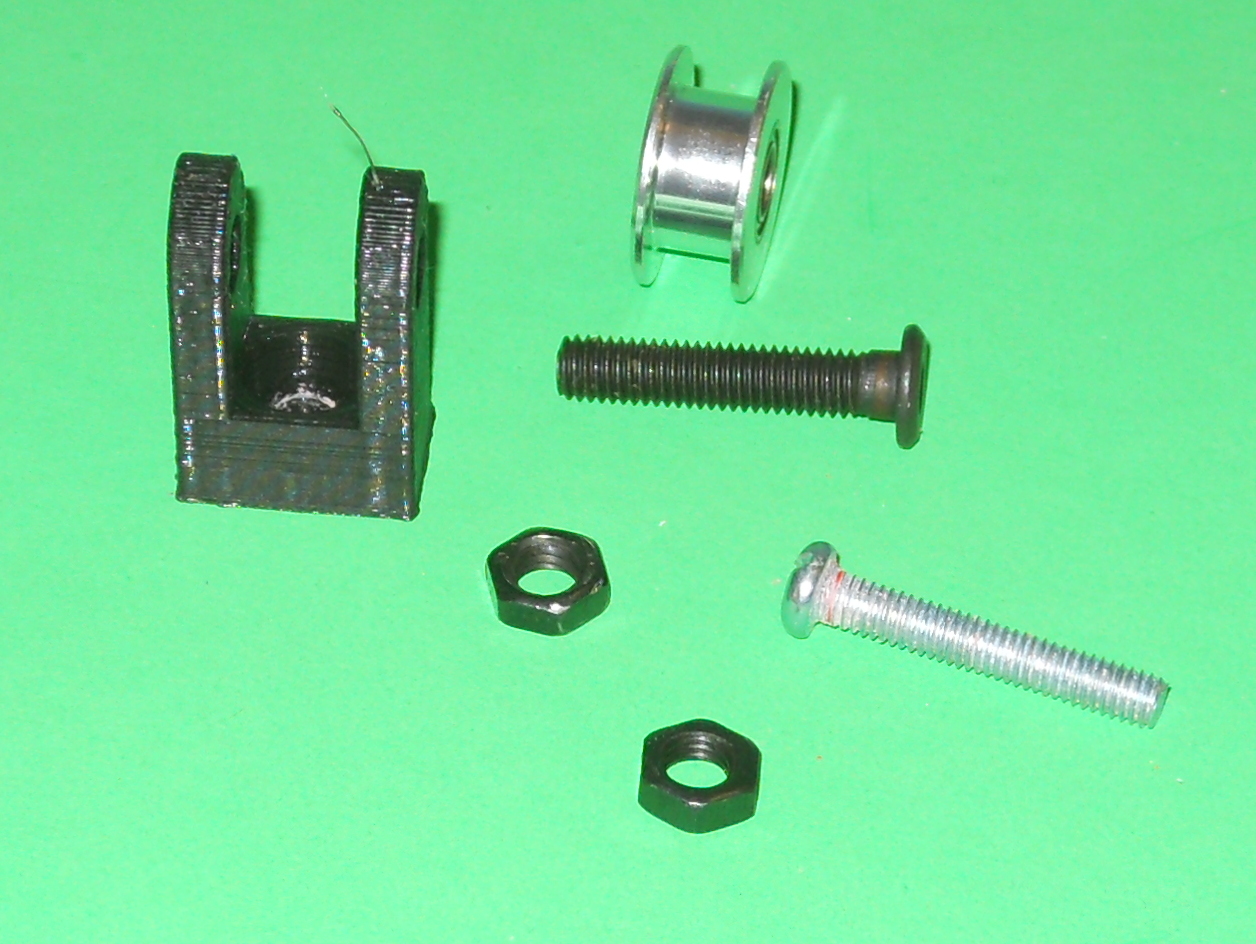

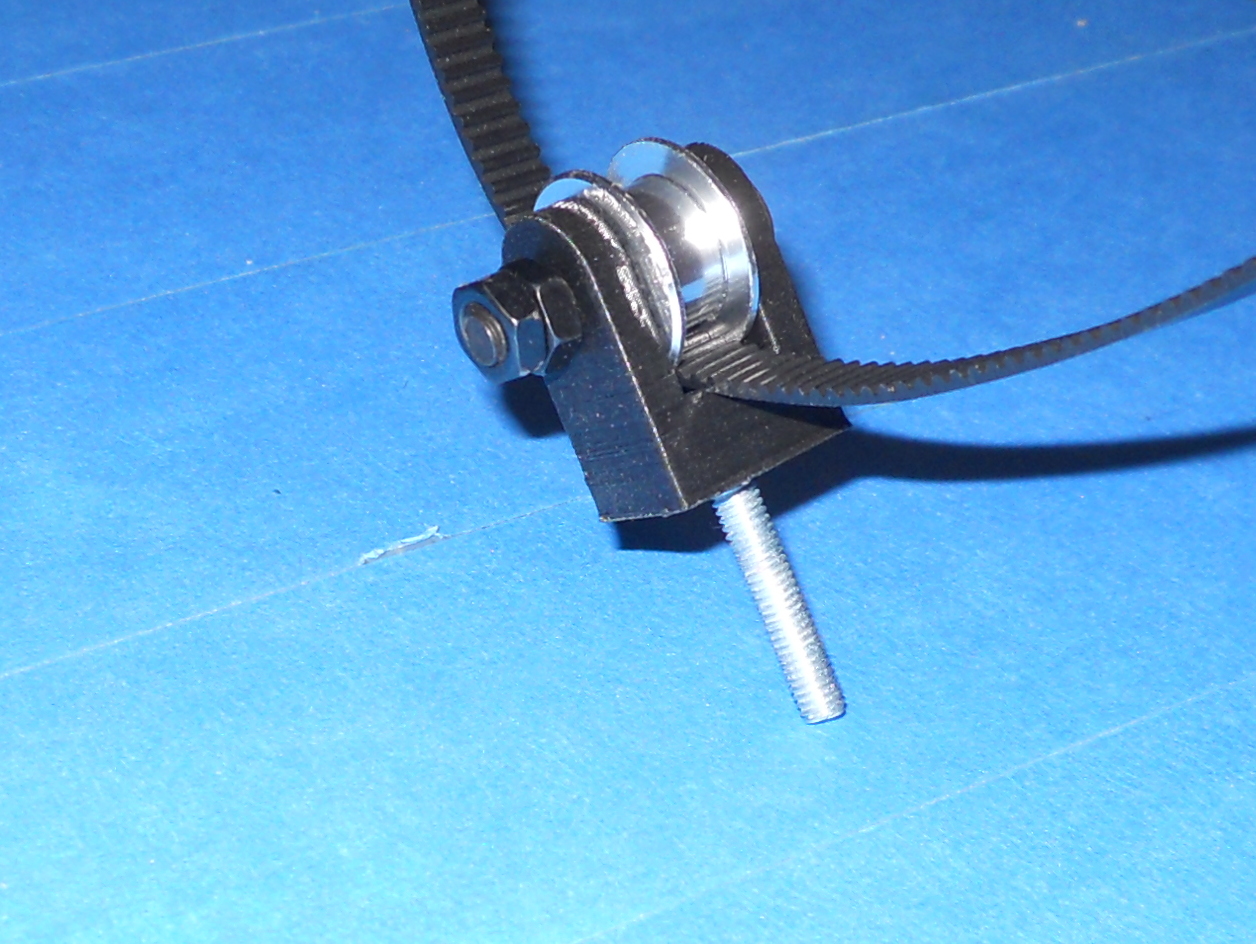

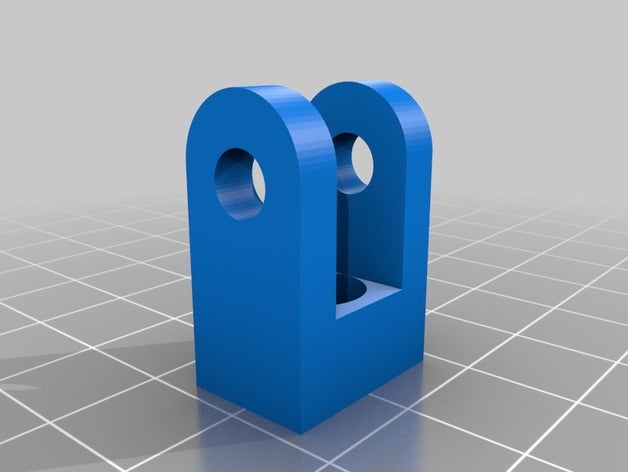

Some extra hardware is also needed for the belt idler. You will need:

an M5 x 25 mm to mount the pulley
either 2 M5 nuts or a lock nut to mount the pulley
an M4 x 25 mm bolt and nut to attach the idler to the base

Its assembly is pretty straight forward.

This object was designed using Fusion 360

Files

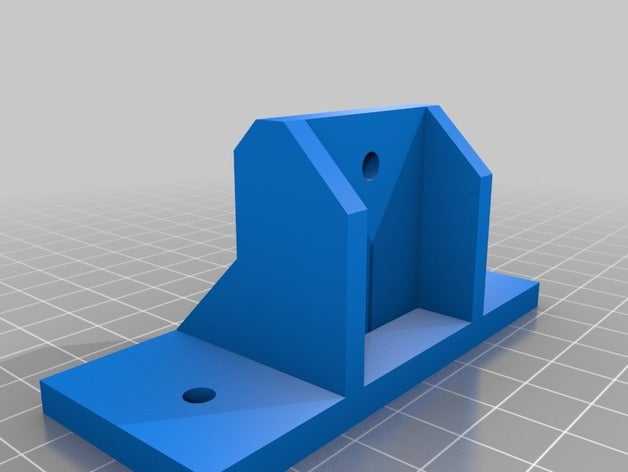

	X-Axis-Tensioner-Base.stl
	X-Axis-Tensioner.stl

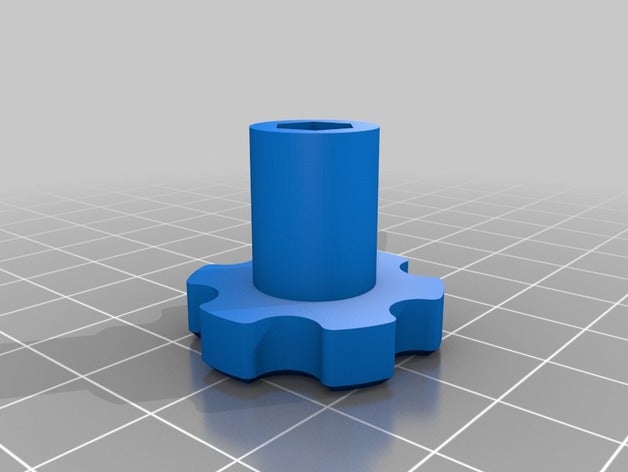

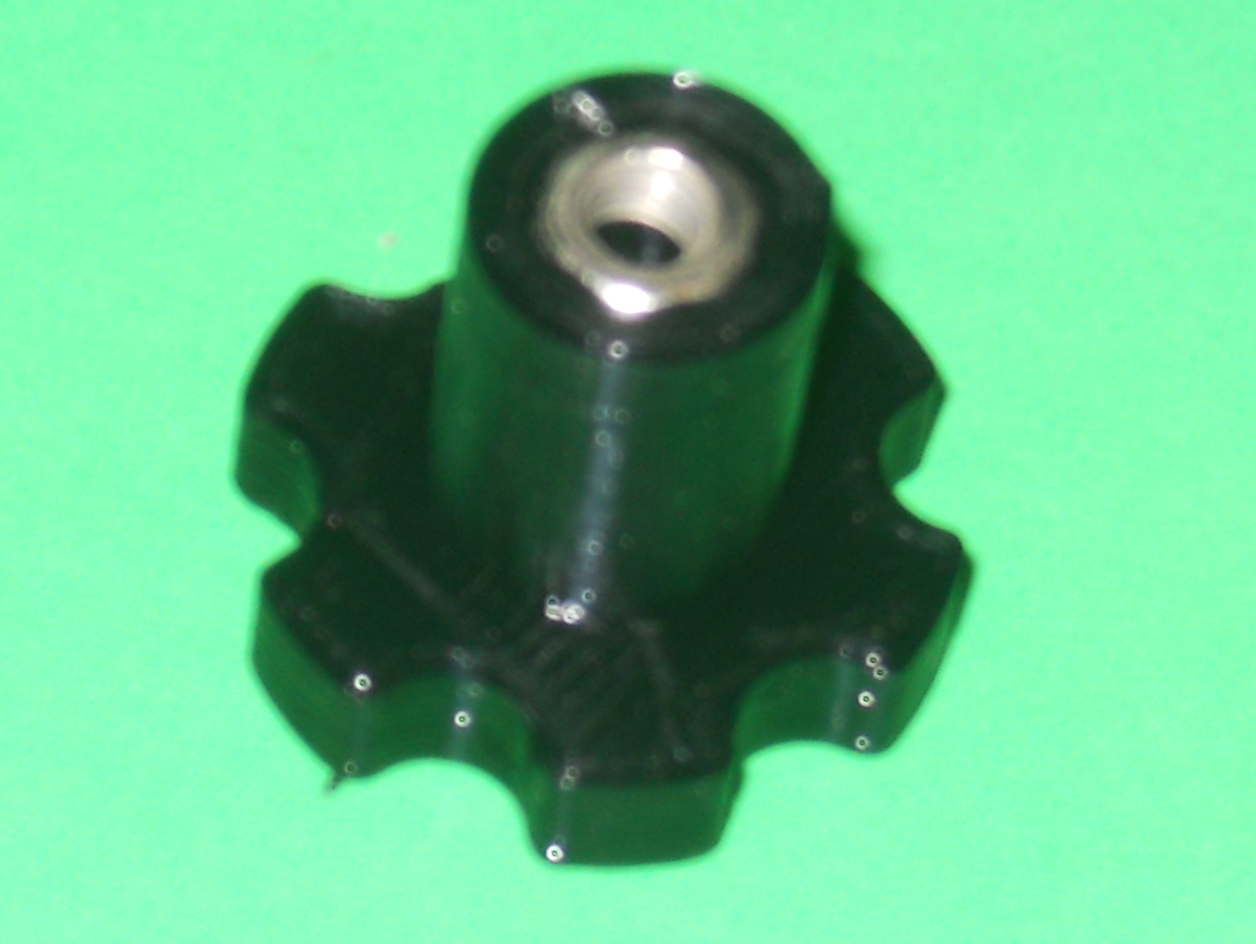

	X-Axis-Tensioner-Knob.stl
