FLSun Cube Extruder Cable Strain Relief/Holder

July 13, 2019 3D Printing object

Description

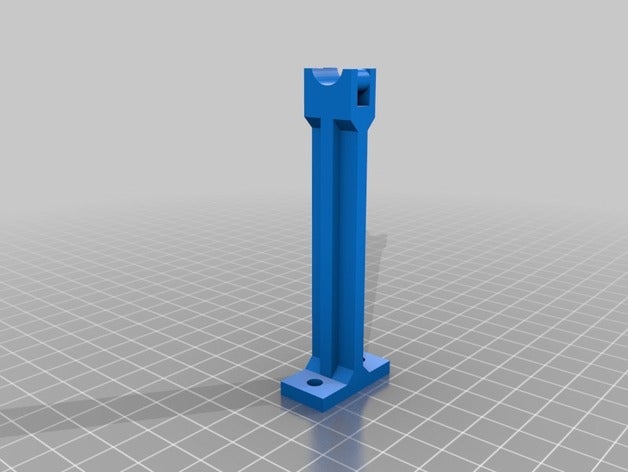

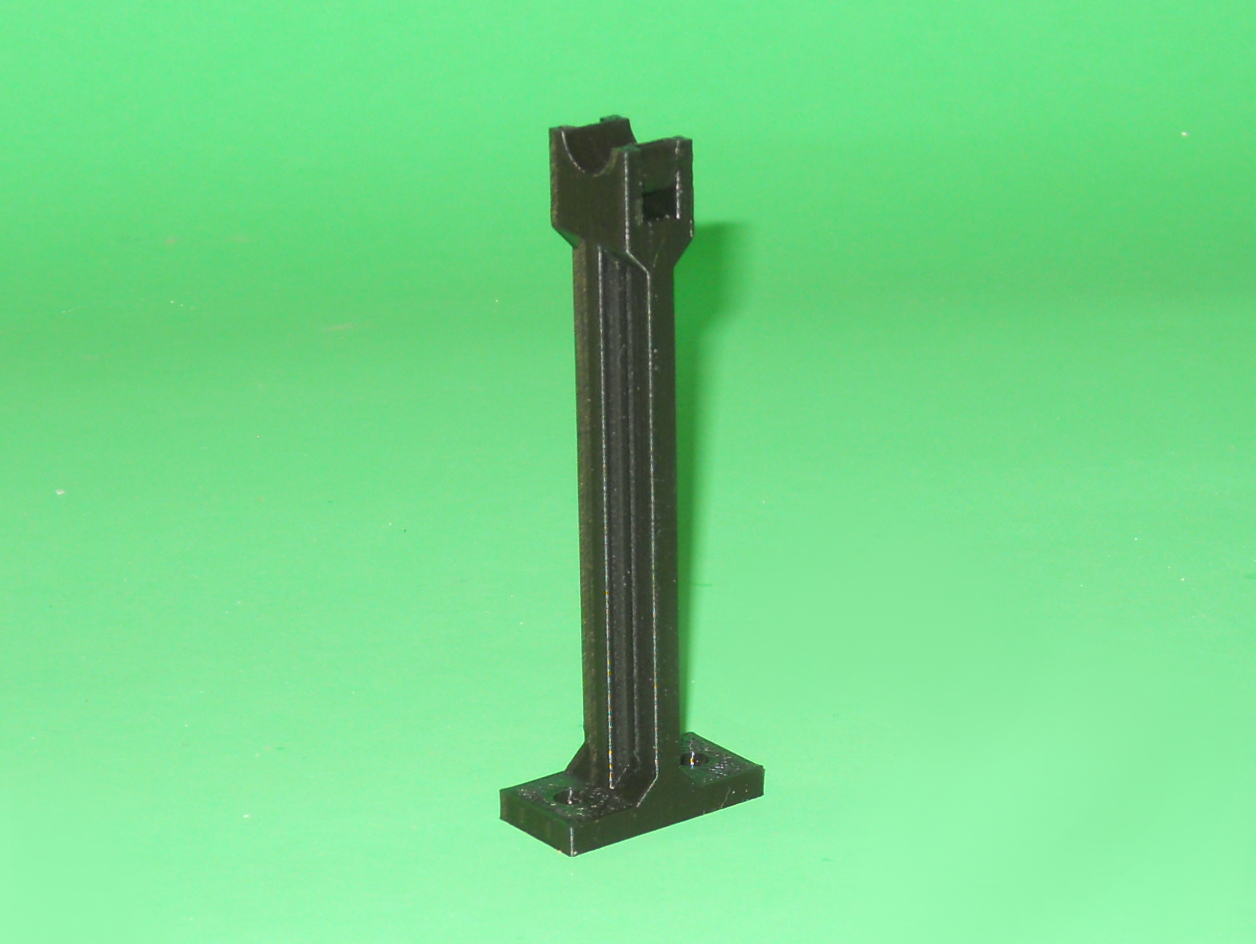

This is a strain relief for the wires and the PTFE tube attached to the extruder of the FLSun Cube 3D printer. It is installed using the bolts of 2 of the linear bearing holders. The M4x16 bolts will need to be replaced by M4x20 bolts. A zip tie is used to attach the wires and the PTFE tube.

No support is required to print this part. 20% infill is sufficient.

A tougher version of it is available at https://www.thingiverse.com/thing:3772780 .

Support is not needed

This object was designed using Fusion 360

Files

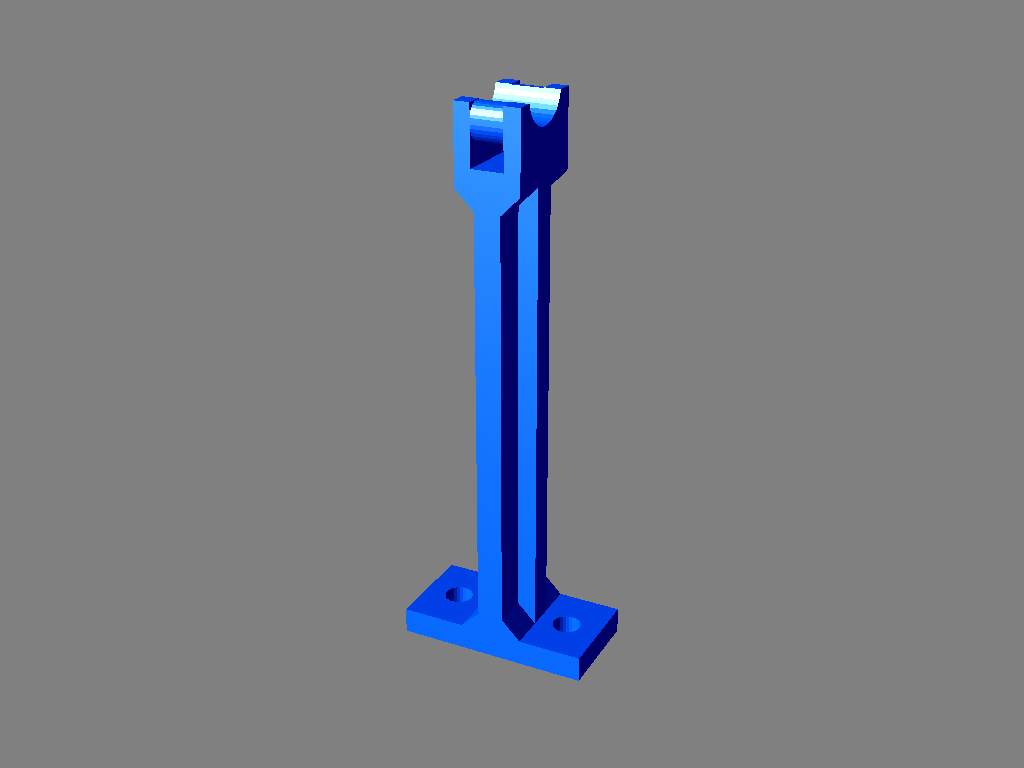

X-Carriage-Strain-Relief.stl
