Editing Extra large 20x4 LCD Project Box

June 30, 2019 · claude 3D Printing

Description

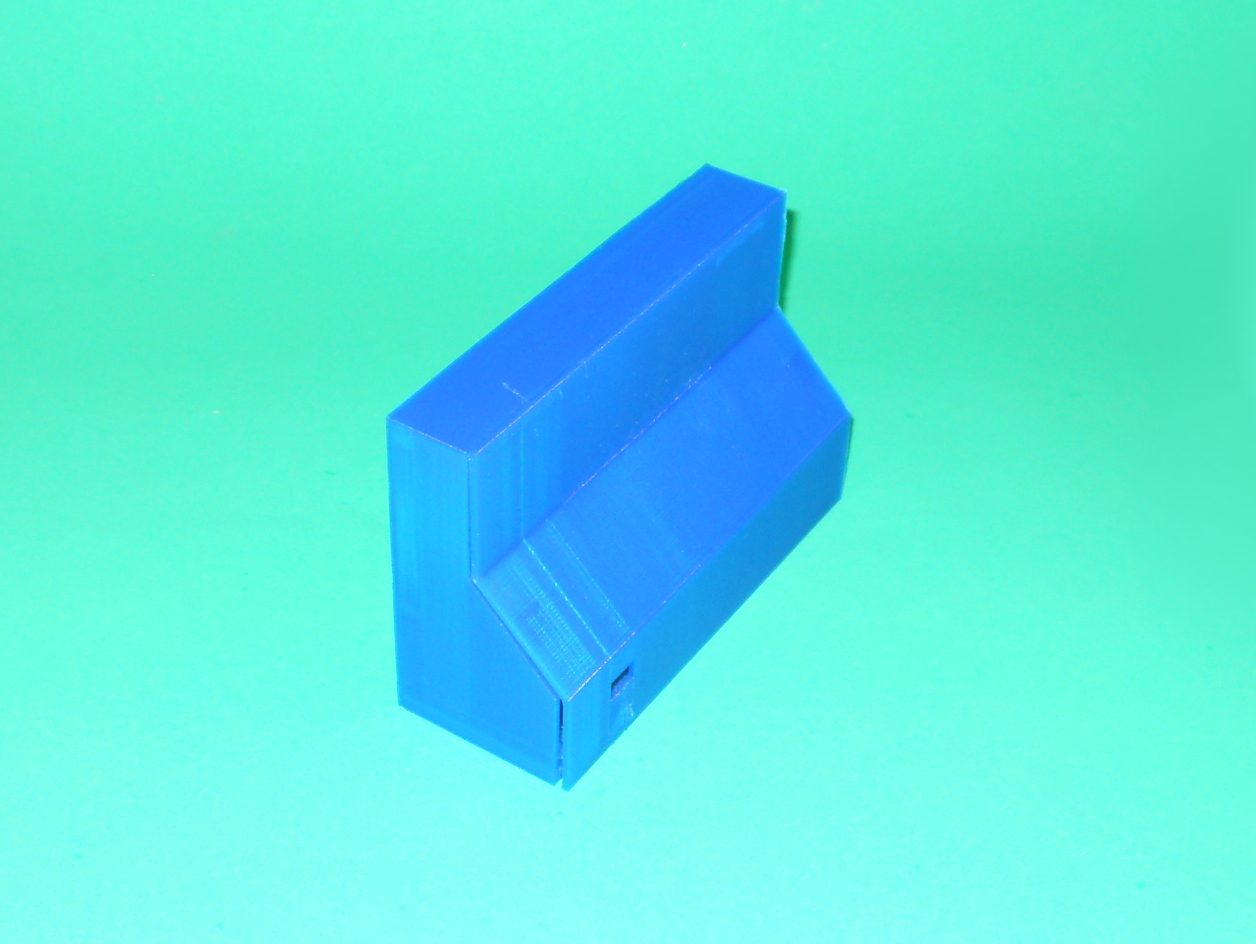

This is a project box for a large 20 x 4 LCD display. The LCD module dimensions are 146mm x 62.5mm x 20mm (5.75 inches x 2.46 inches x 0.79 inches). The viewing area is 123mm x 43mm (4.86 inches x 1.69 inches). The character size is 9.65mm x 4.57mm (0.38 inches x 0.18 inches).

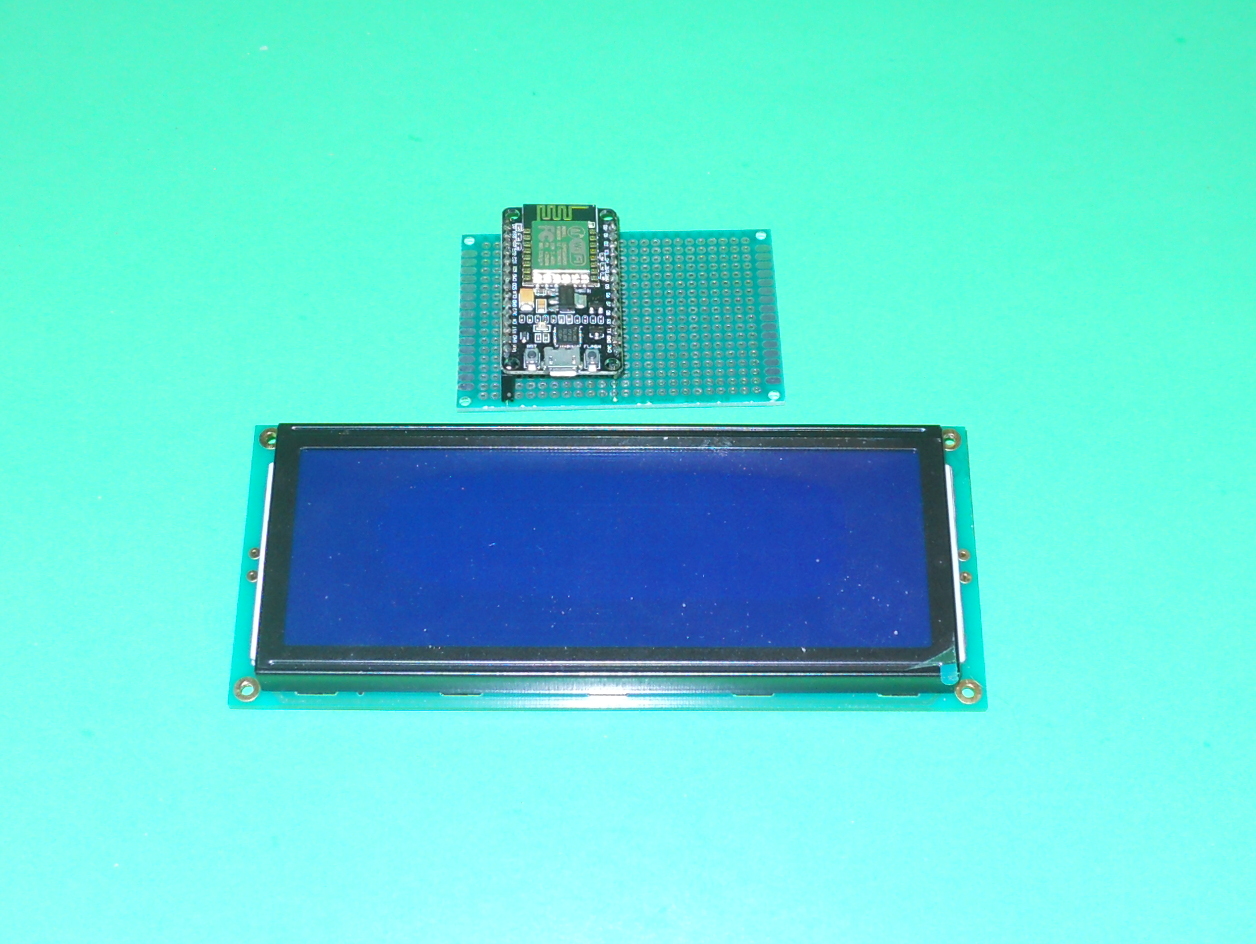

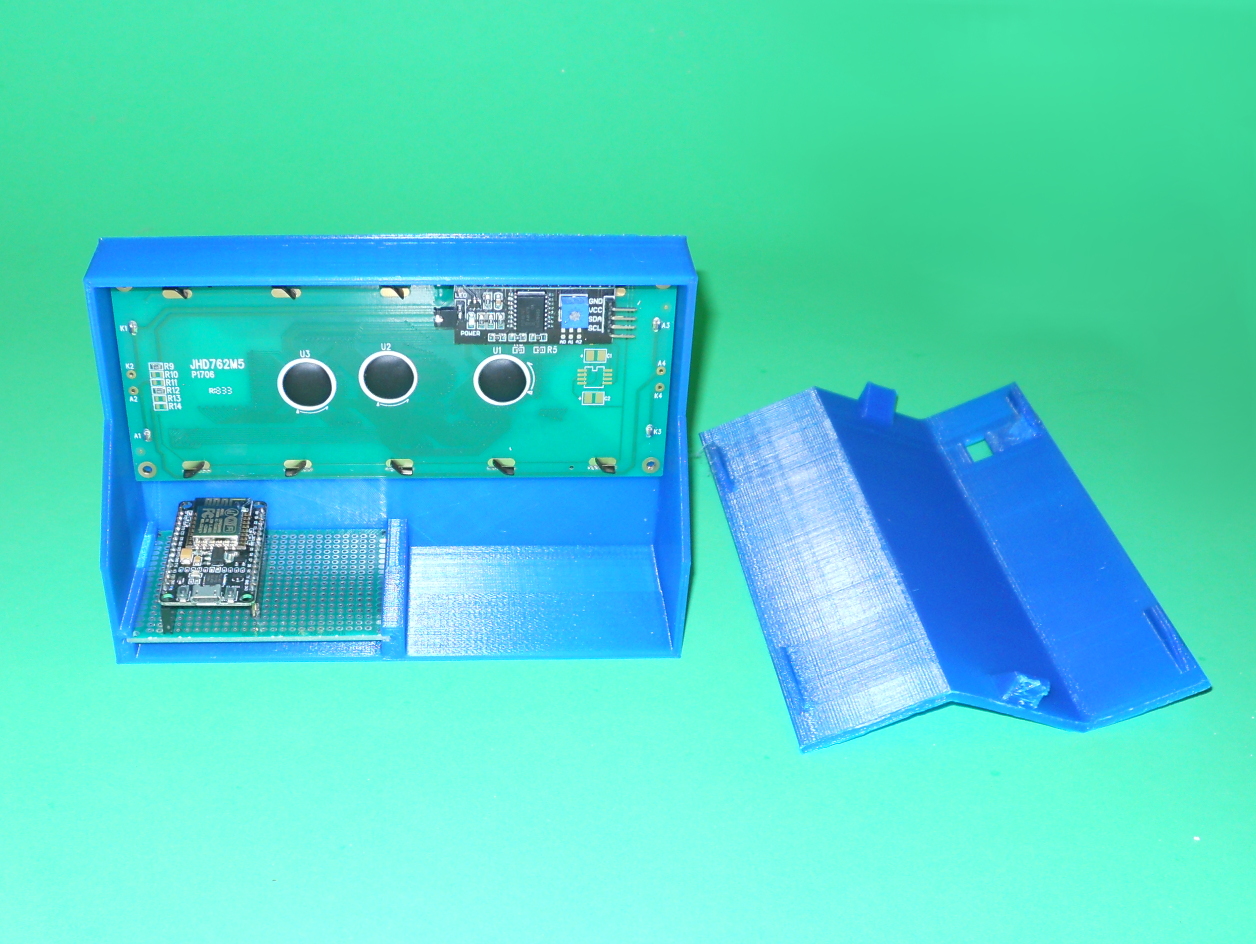

A 5mm x 7mm printed circuit board can be mounted inside which can hold an ESP32 or an ESP8266. Perforated board of this size can be found on EBAY or on Chinese E-commerce platforms.

You will need 4 M2 screws or equivalent screws to mount the LCD display. A few dabs of glue are required to mount the back cover onto the project box.

This object was designed using Fusion 360

Files

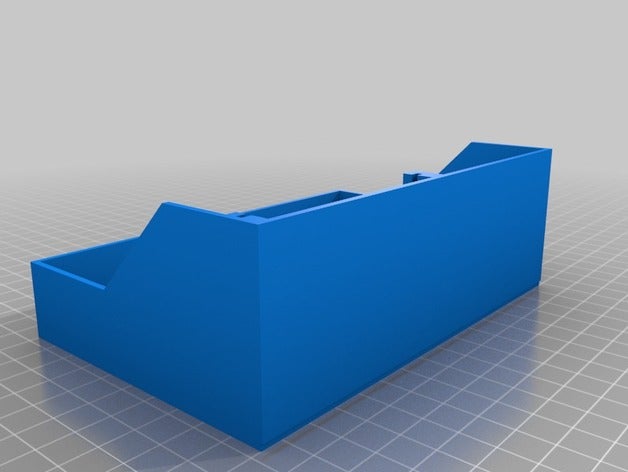

	Bezel.stl

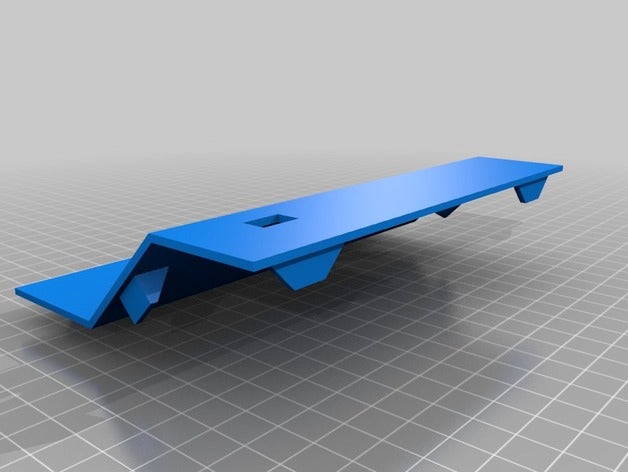

	Cover.stl
