DIY Clock Kit Case (YSZ-4 or ZM-804)

November 23, 2024 · claude 3D Printing

Description

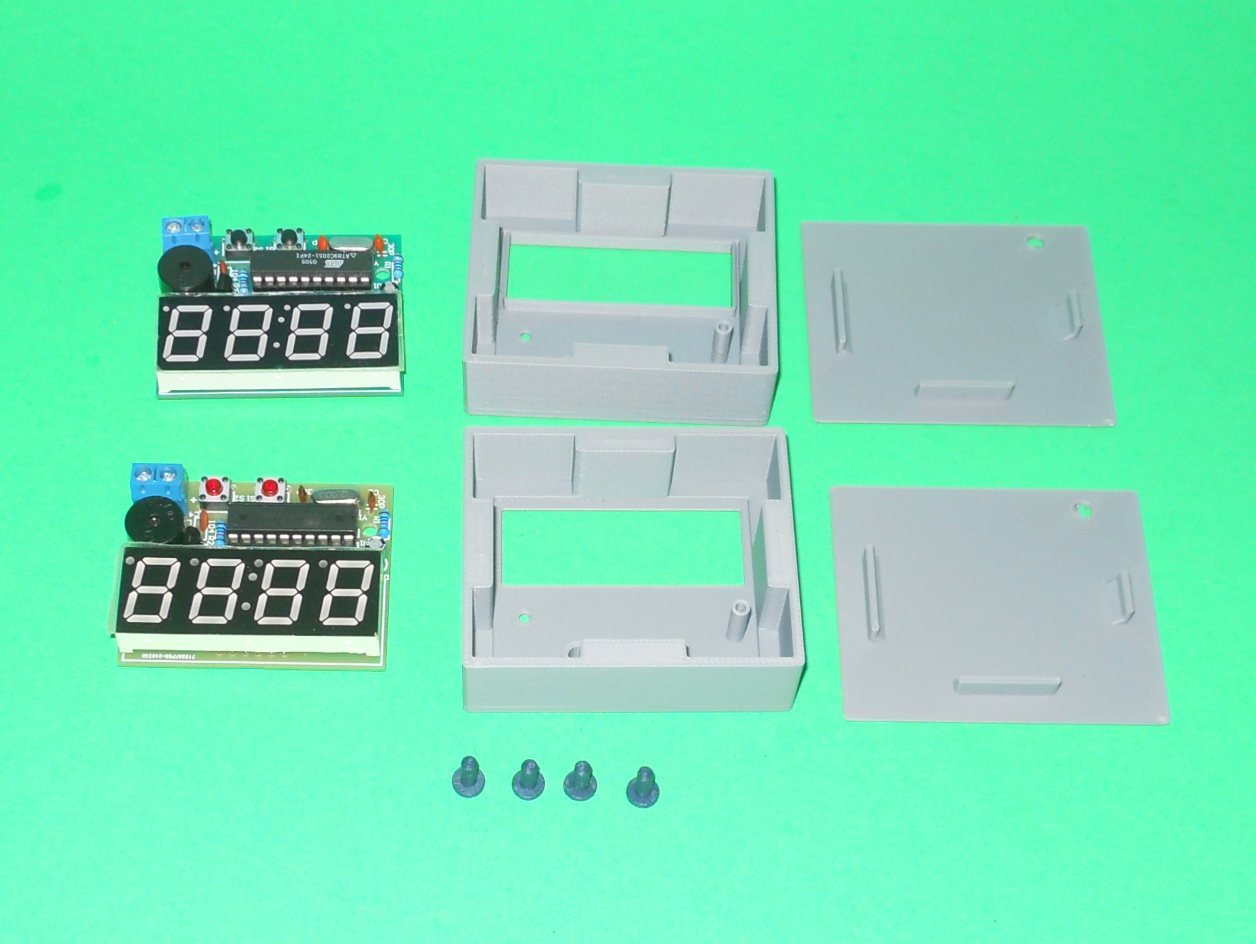

This is a case for the DIY clock kit YSZ-4 or ZM-804. Two versions are available: one when the display is soldered touching the PCB board and one when the display is soldered above the PCB without cutting the leads of the display. You'll need to print two Push button extensions. A few dabs of glue is required to hold the back to the case.

Support material is not required. An infill of 20% is recommended.

This object was designed using Solid Edge Community Edition.

Files

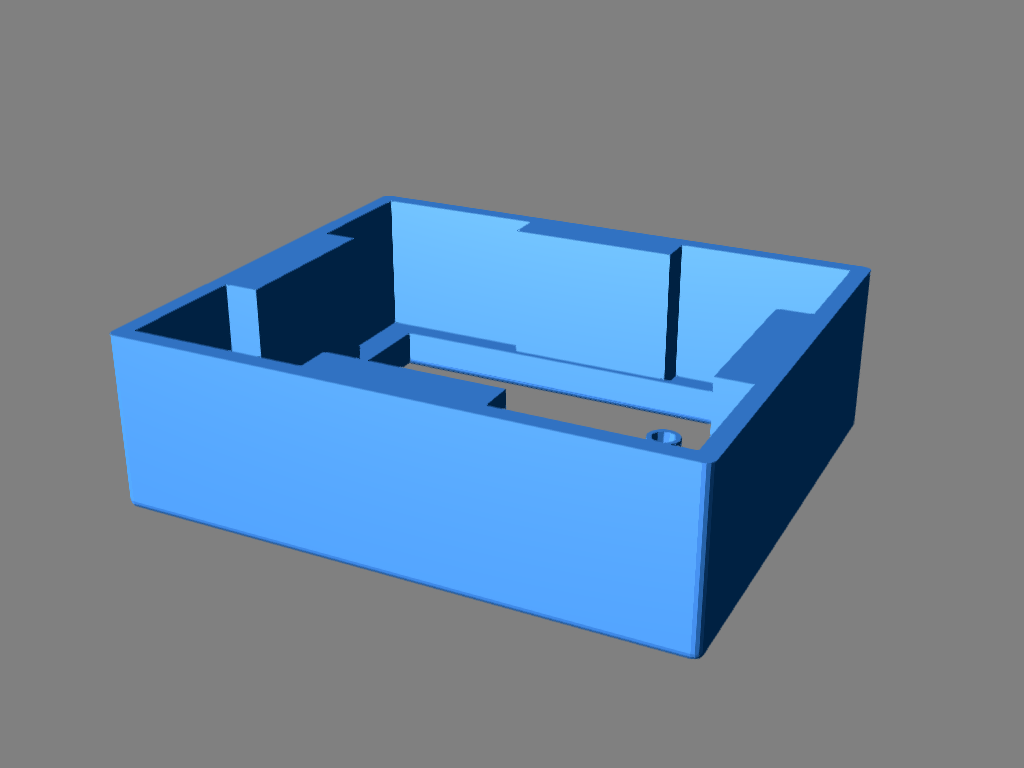

	Front-Display-On-PCB.stl

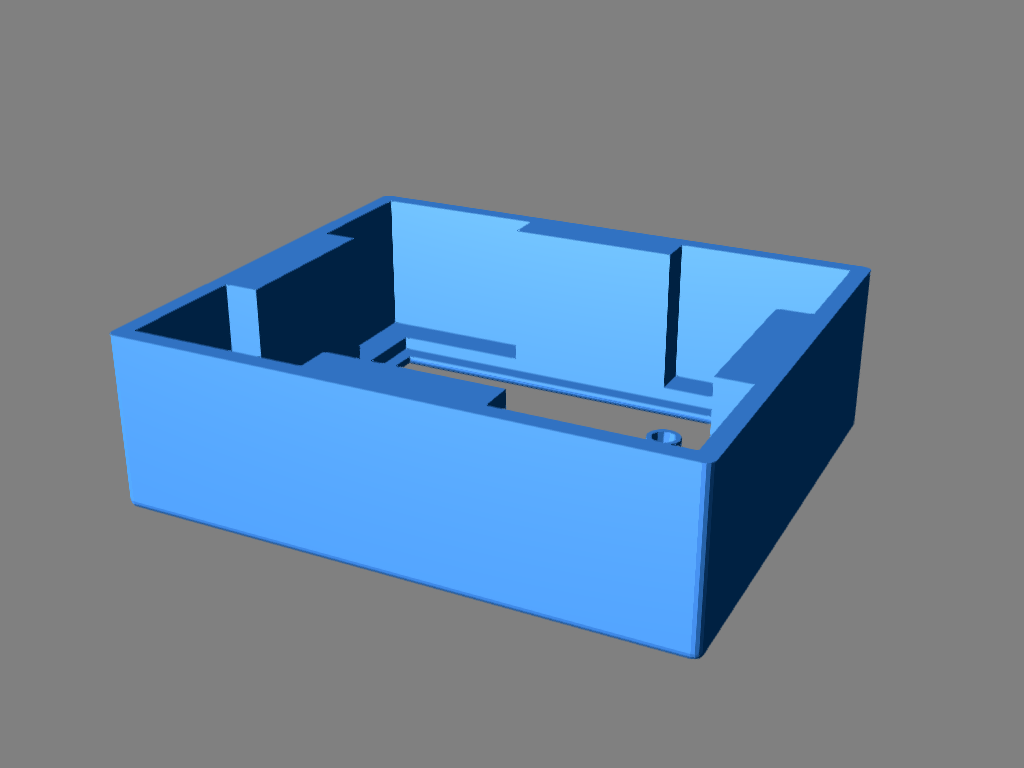

	Front-Long-Pins.stl

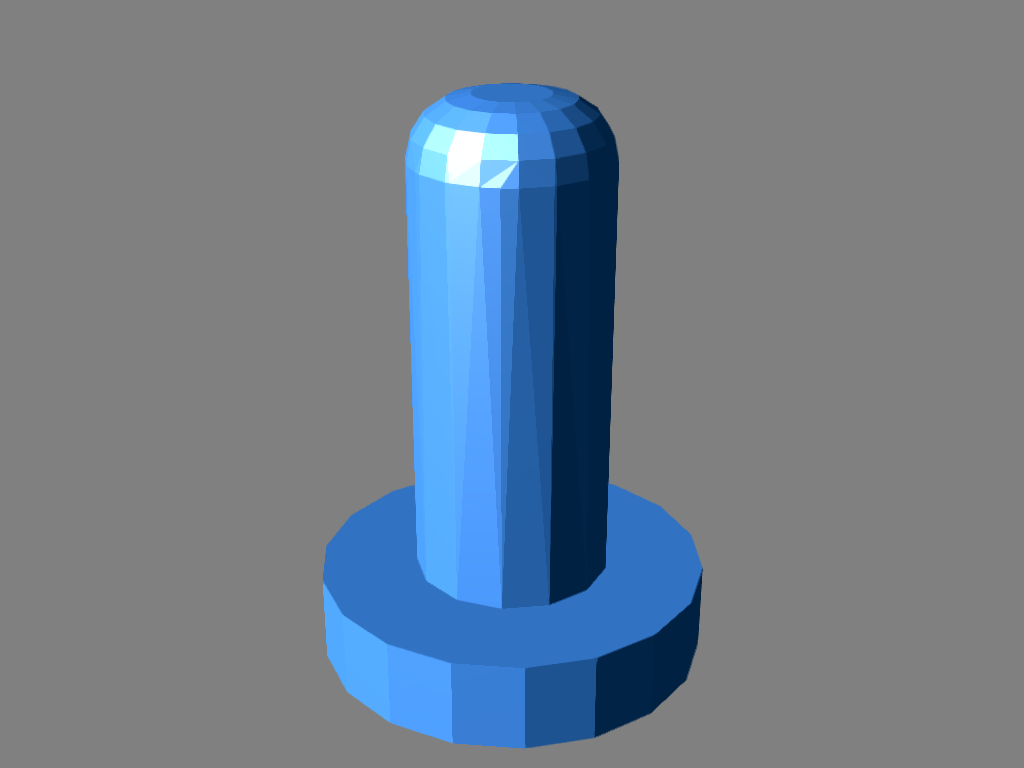

	PushButton.stl

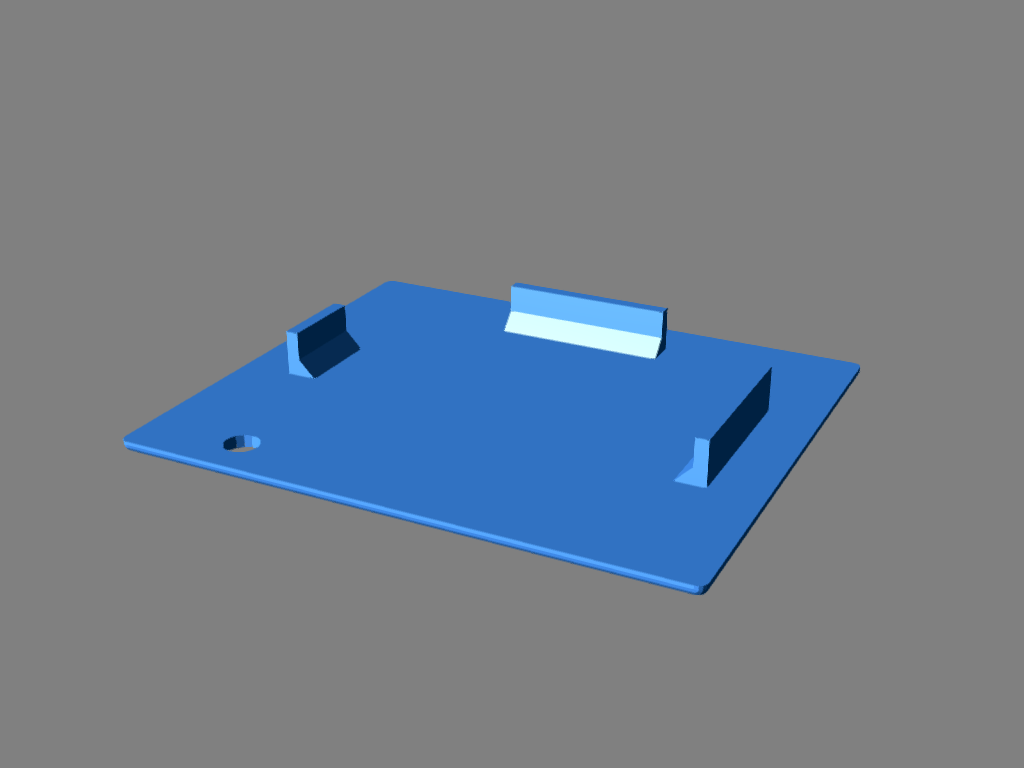

	Back.stl
