Din Rail Breadboard Mounts

October 28, 2023 3D Printing object

Description

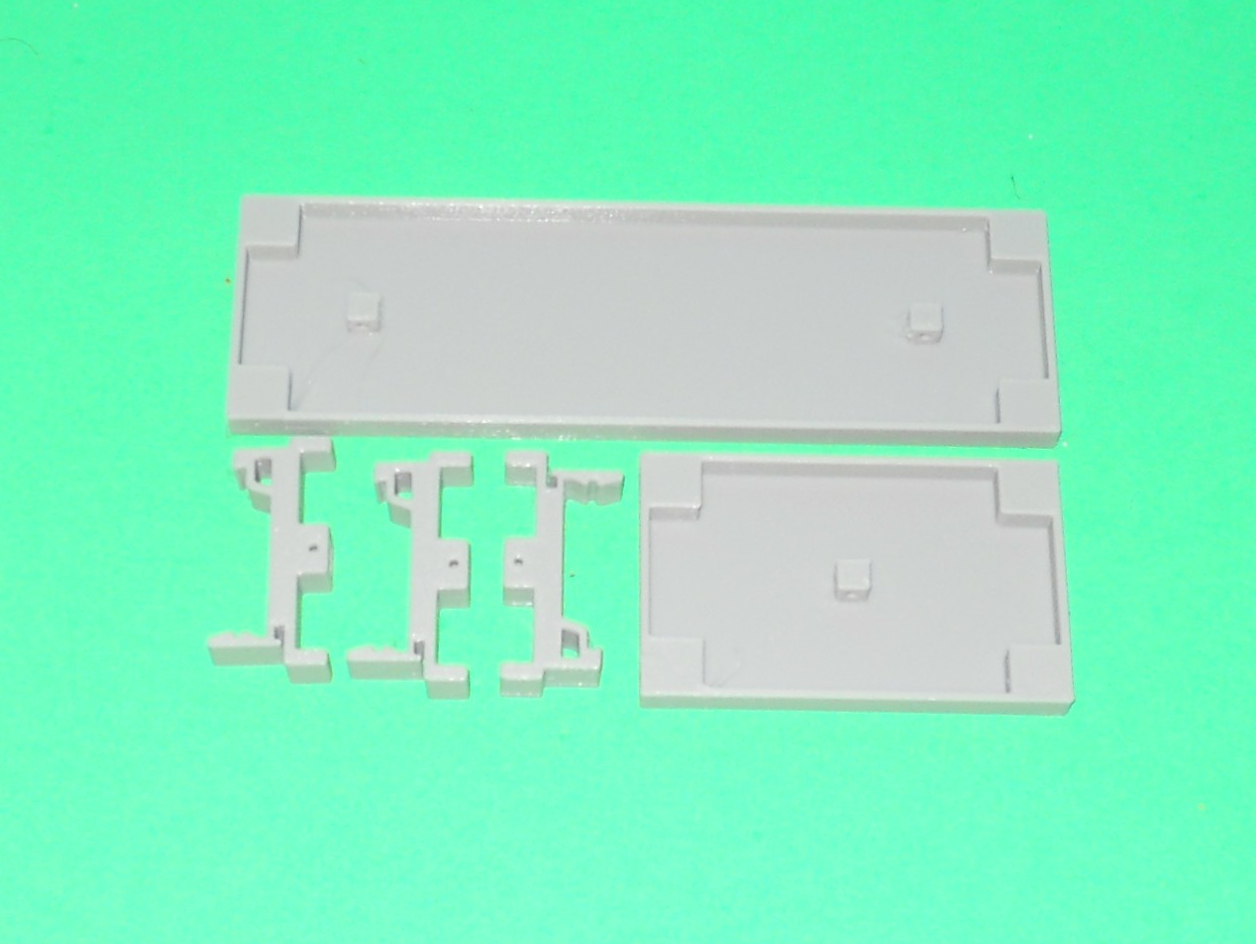

These are din rail breadboard mounts for 400 and 830 points breadboards. The din rail clips can be attached temporarily to the breadboard base using a piece of 1.75 mm filament. The clips can be attached horizontally or vertically to the breadboard base. They can also be glued to the breadboard base for a permanent setup. Clips shall be printed on their side. The 830 points Breadboard base needs two clips.

Support material is not required. An infill of 20% is recommended.

This object was designed using Solid Edge Community Edition.

Files

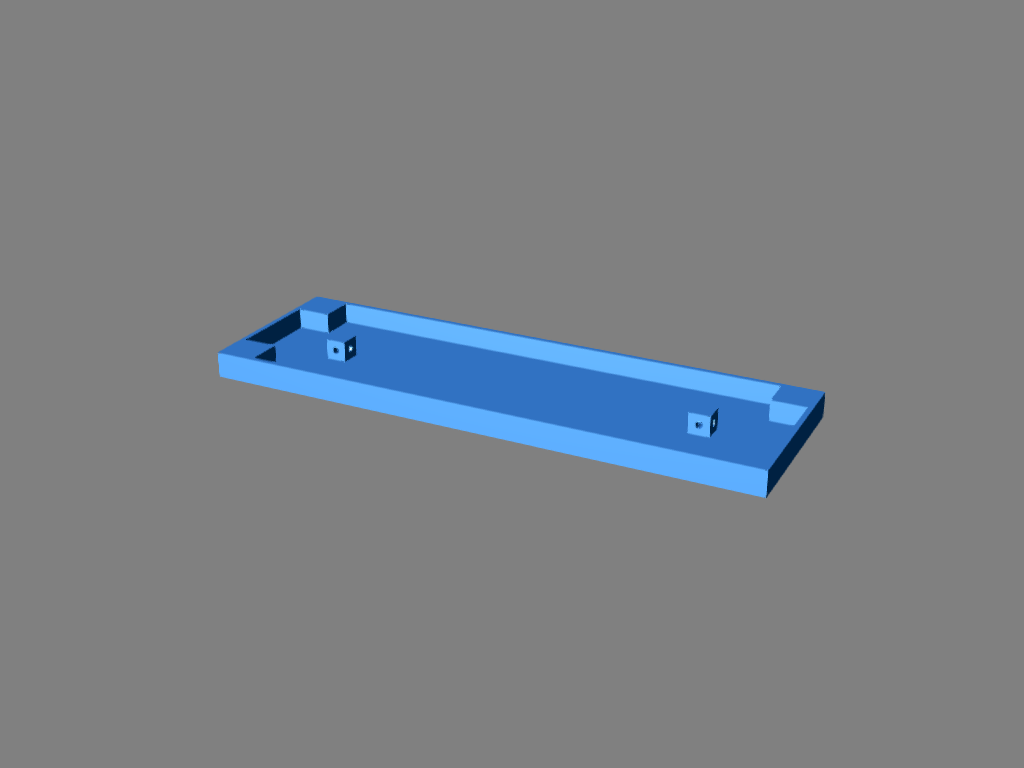

	830-points-breadboard-base.stl

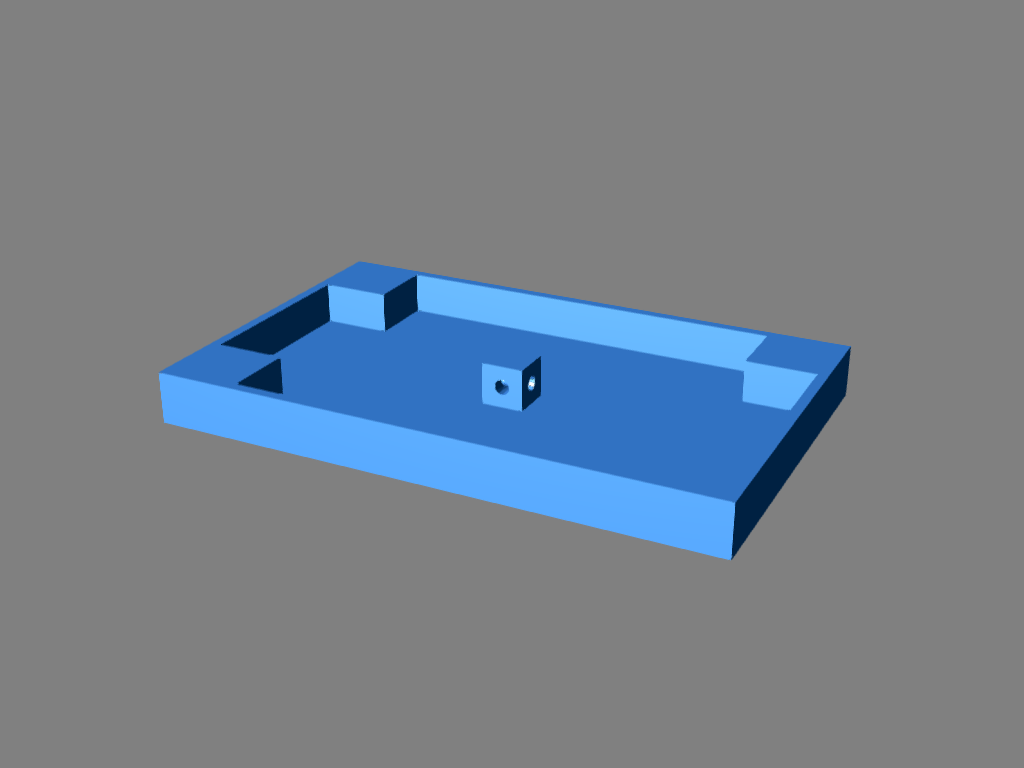

	400-points-breadboard-base.stl

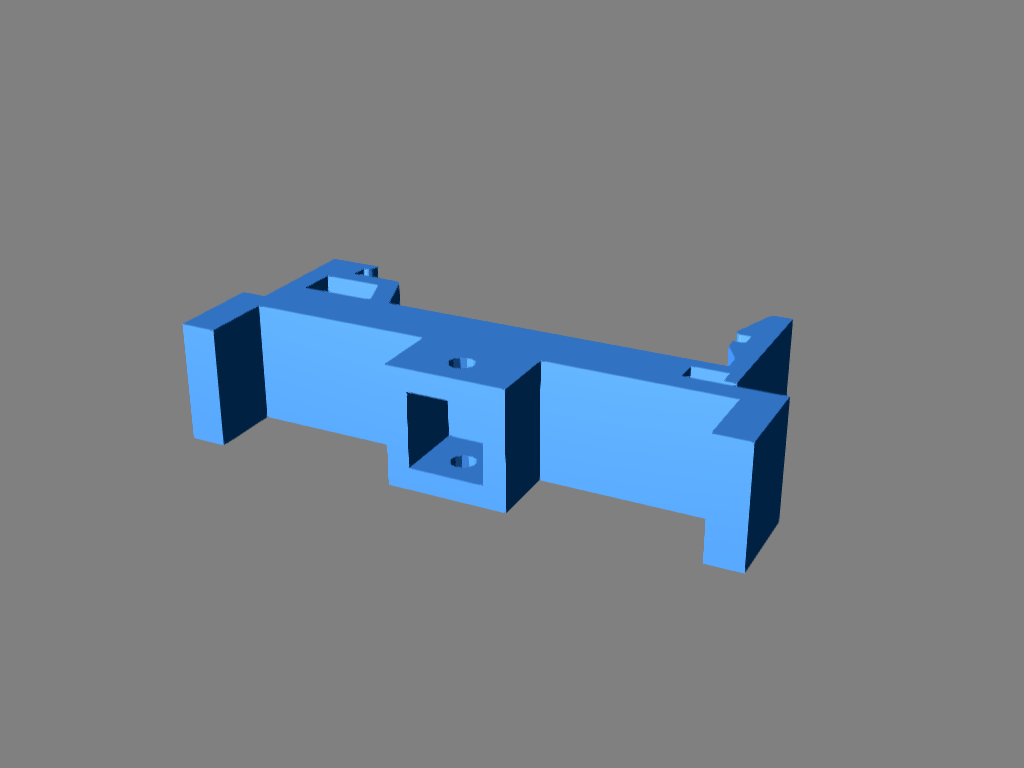

	Breadboard-Clip.stl
