DIN Rail Arduino Uno and Mega Mounts

November 10, 2023 3D Printing object

Description

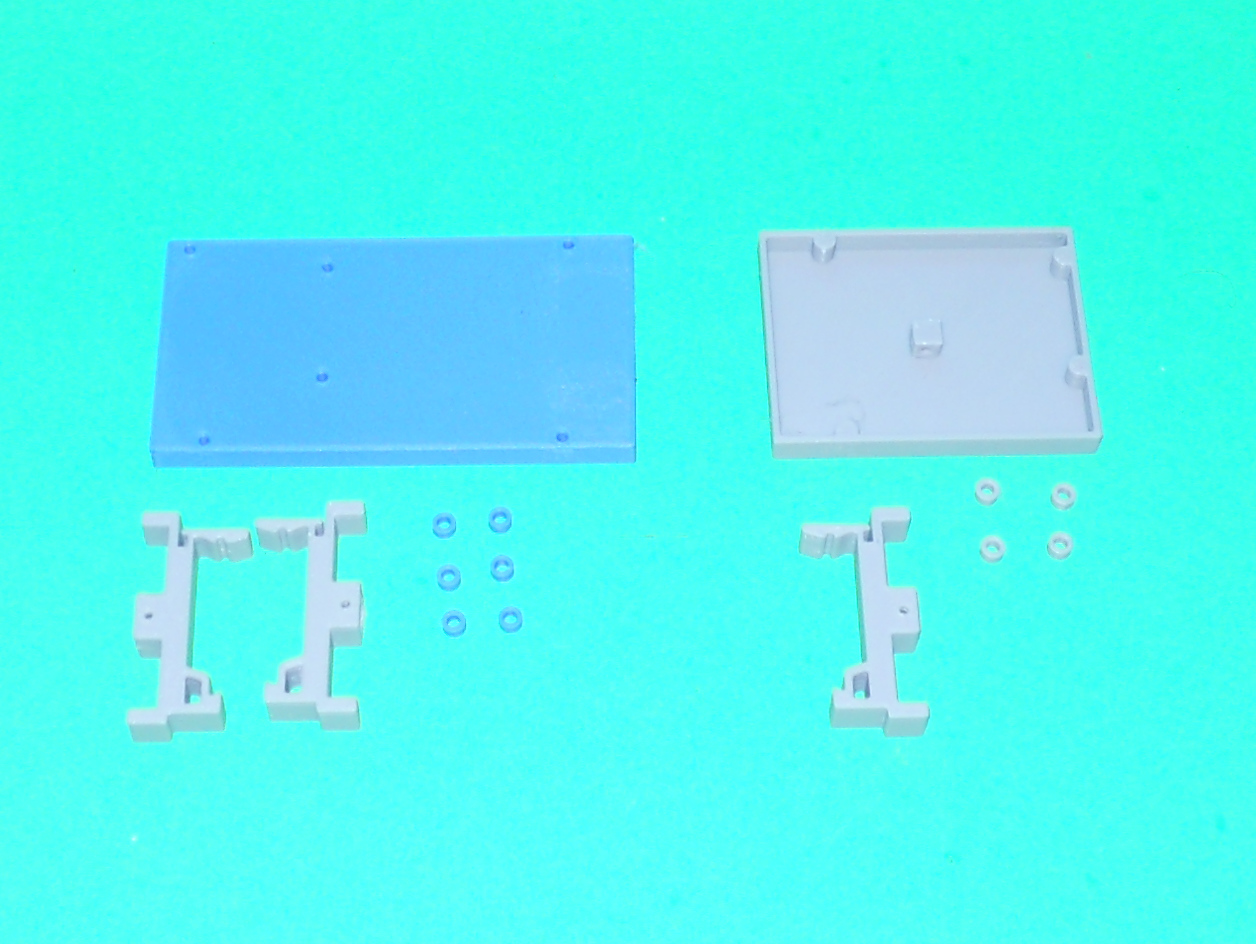

These are din rail mounts for an Arduino Uno and Mega 2560 or any board that has these form factors. The din rail clip can be attached temporarily to the Arduino base using a piece of 1.75 mm filament. The clip can be attached horizontally or vertically to the Arduino base. It can also be glued to the Arduino base for a permanent setup. The clip shall be printed on its side. The spacers shall be put between the base and the Arduino board, held by the screws. Four or six M2.5 x 8 mm screws are required, but may be substituted.

Support material is not required. Nevertheless, the recess of the clip must be clean-up to prevent breaking the Arduino baseplate. An infill of 20% is recommended.

This object was designed using Solid Edge Community Edition.

Files

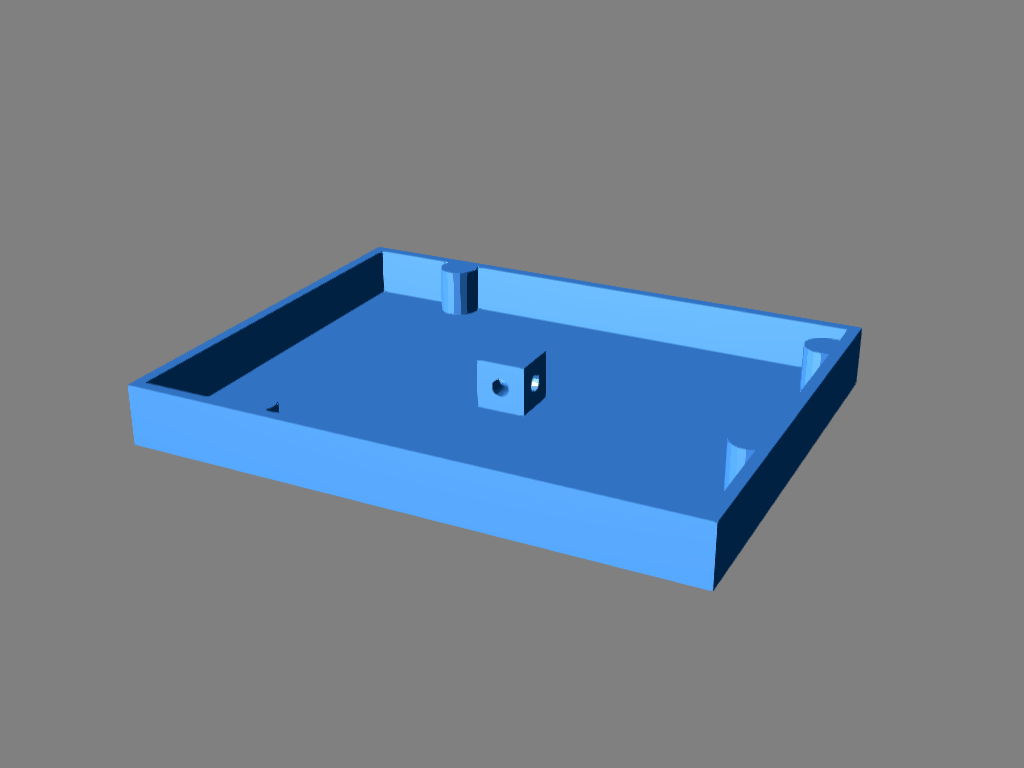

	ArduinoUnoMount.stl

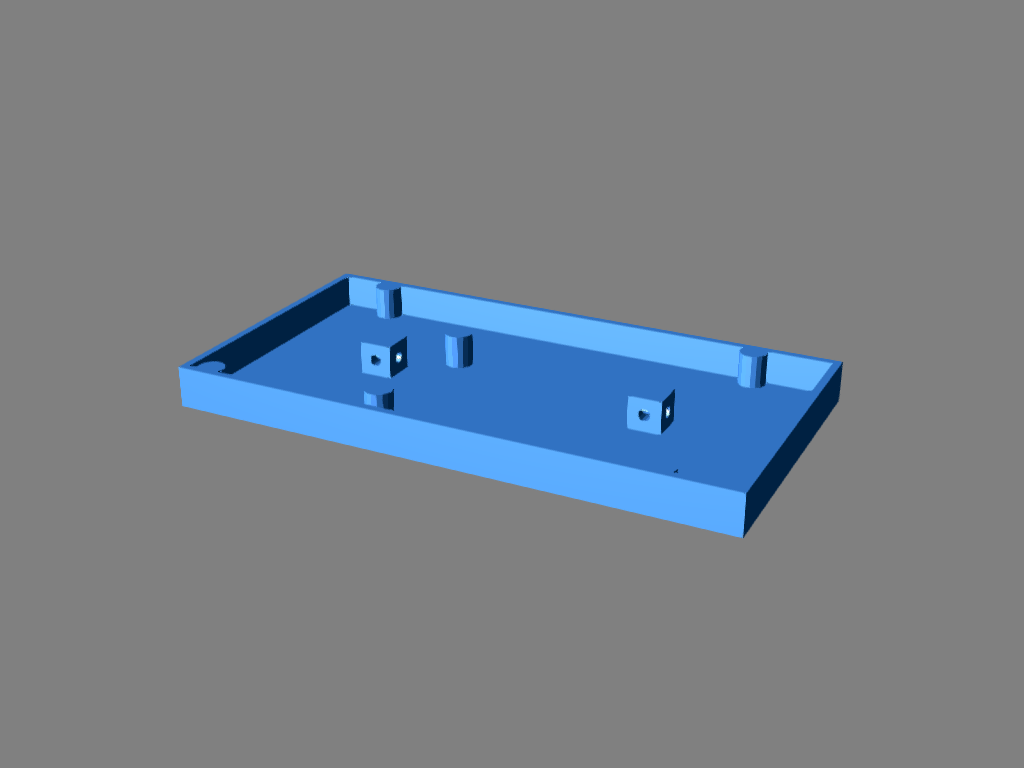

	ArduinoMega2560Mount.stl

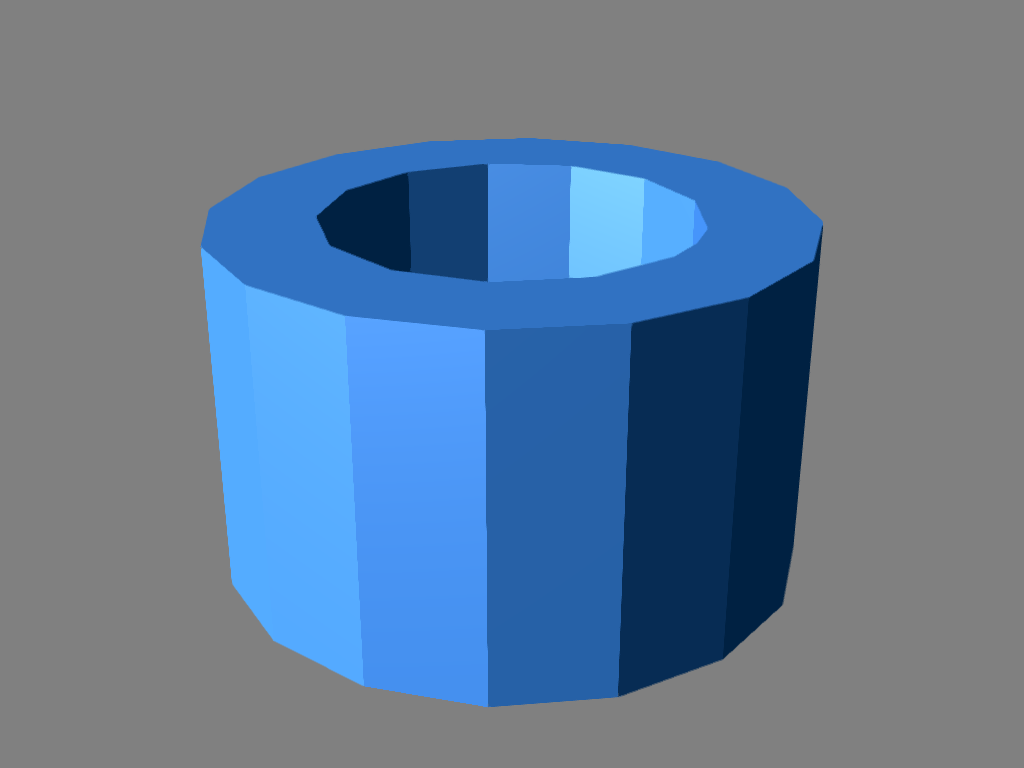

	BoardSpacer3mm.stl

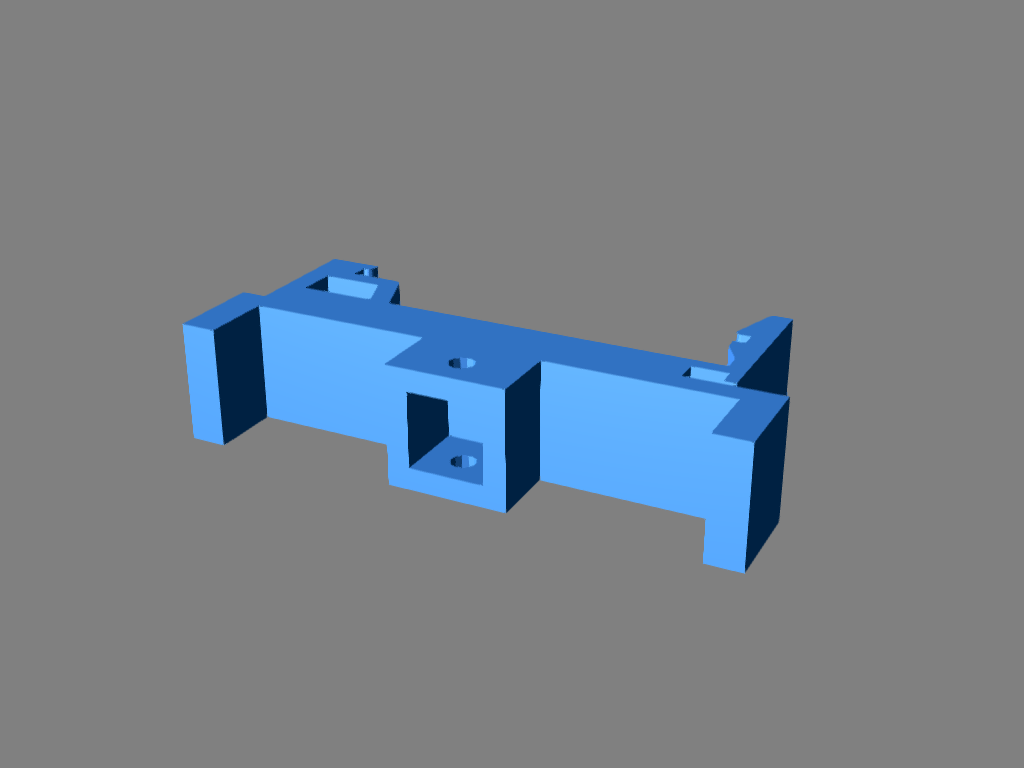

	Breadboard-Clip.stl
