Arbitrarily Compartmented Box With Overlapped Lid

September 29, 2023 · claude 3D Printing
Arbitrarily Compartmented Box With Overlapped Lid
Arbitrarily Compartmented Box With Overlapped Lid Arbitrarily Compartmented Box With Overlapped Lid

Description

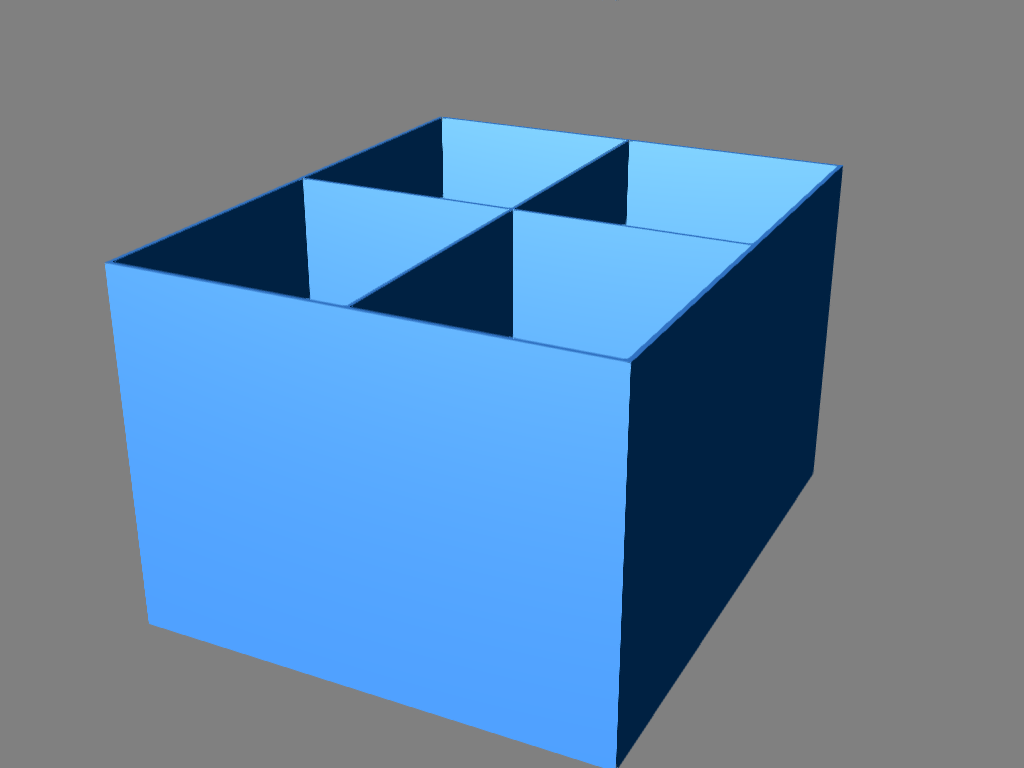

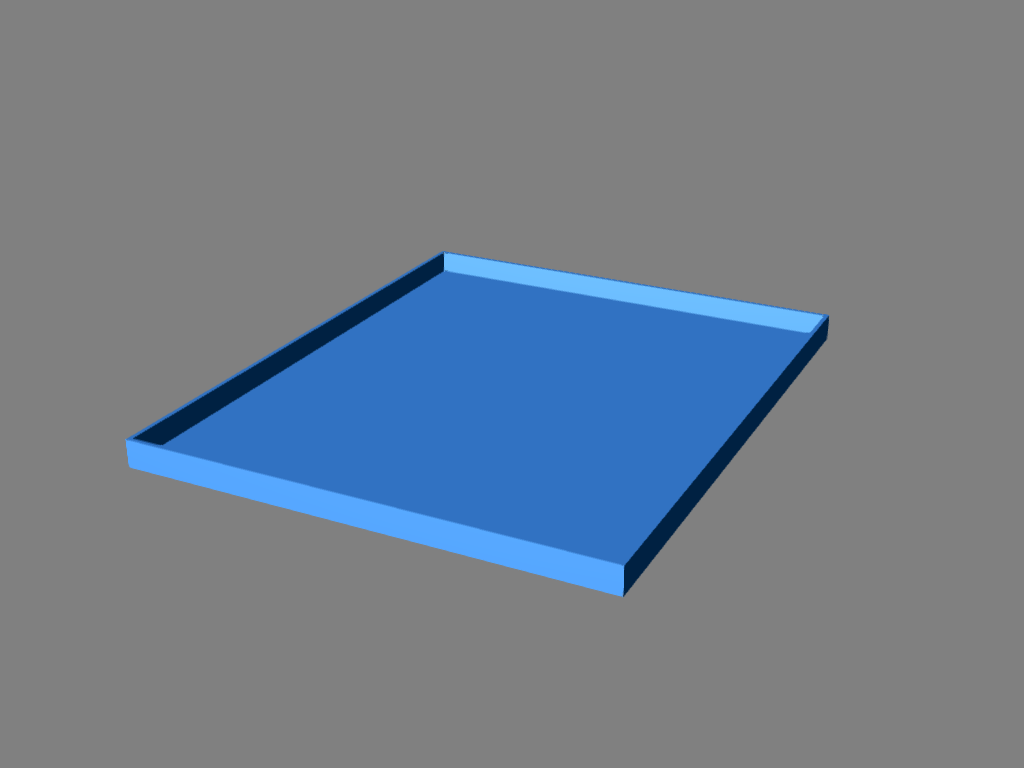

This is a parametric compartmented box with overlapped lib. The example is a box that contains electronic boards in small bags.

Support material is not required. An infill of 20% is recommended.

This object was designed using openSCAD.

Files

ArbitrarilyCompartmentedBoxWithOverlappedLid.scad ArbitrarilyCompartmentedBoxWithOverlappedLid.scad
MediumBagBox.stl MediumBagBox.stl
MediumBagBoxLid.stl MediumBagBoxLid.stl

This object is also published on the following site(s):

This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.
