ALTERA FPGA Cyclone II Minimum System Board Plate

November 14, 2014 · claude 3D Printing
ALTERA FPGA Cyclone II Minimum System Board Plate
ALTERA FPGA Cyclone II Minimum System Board Plate ALTERA FPGA Cyclone II Minimum System Board Plate

Description

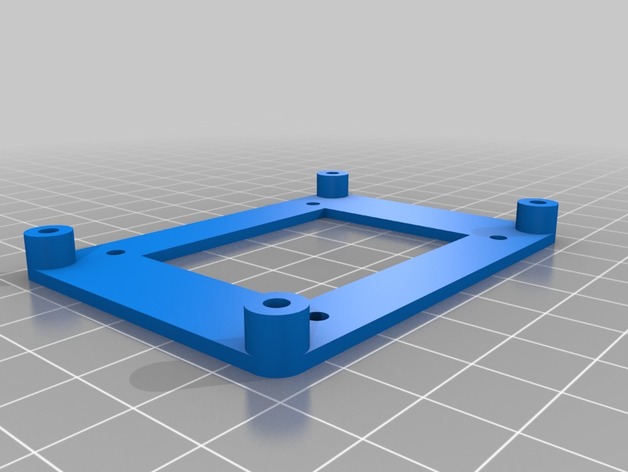

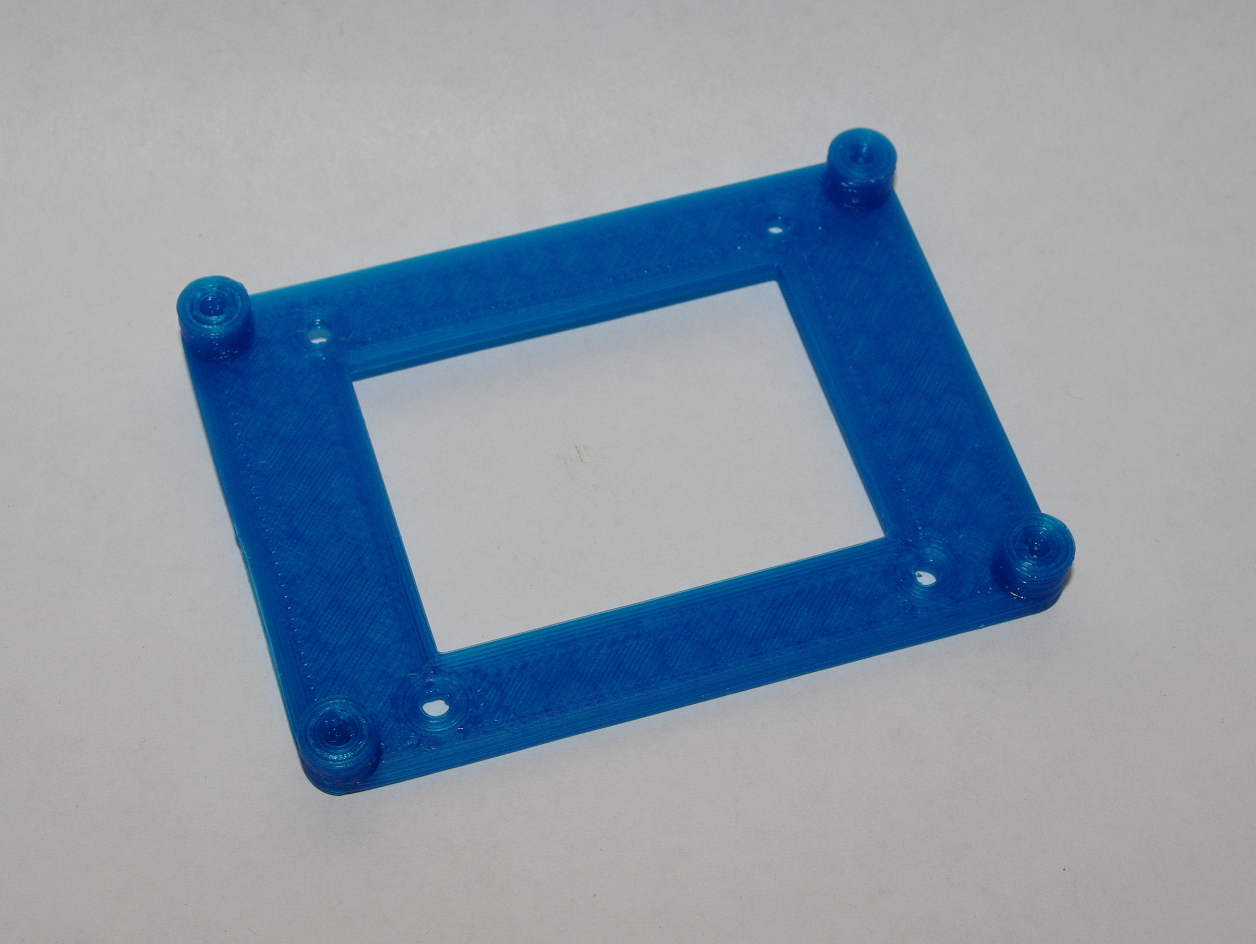

This is a simple base plate for an ALTERA FPGA Cyclone II EP2C5T144 Minimum System Board. 4-40, 1/4" screws are used to mount the board onto the plate.

This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.
