5 mm D Shaft Flag

February 10, 2024 3D Printing object
5 mm D Shaft Flag

5 mm D Shaft Flag

Description

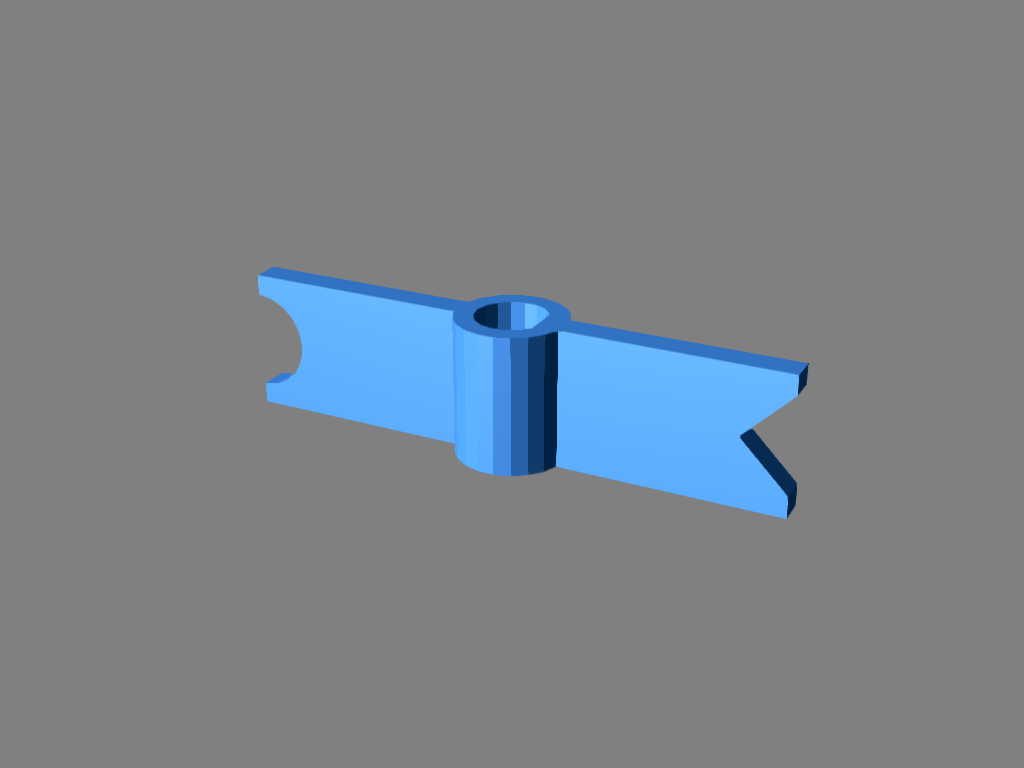

This is a rotation indicator for a 5 mm D Shaft as found on Nema 17 motor for example. It is used as a diagnostic tool.

Support material is not required if printed on its side. An infill of 25% is recommended.

This object was designed using Solid Edge Community Edition.


Files

DShaftFlag.stl DShaftFlag.stl

This object is also published on the following site(s):


This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.
