5-1/4 inch round speaker enclosure

December 25, 2021 3D Printing object

Description

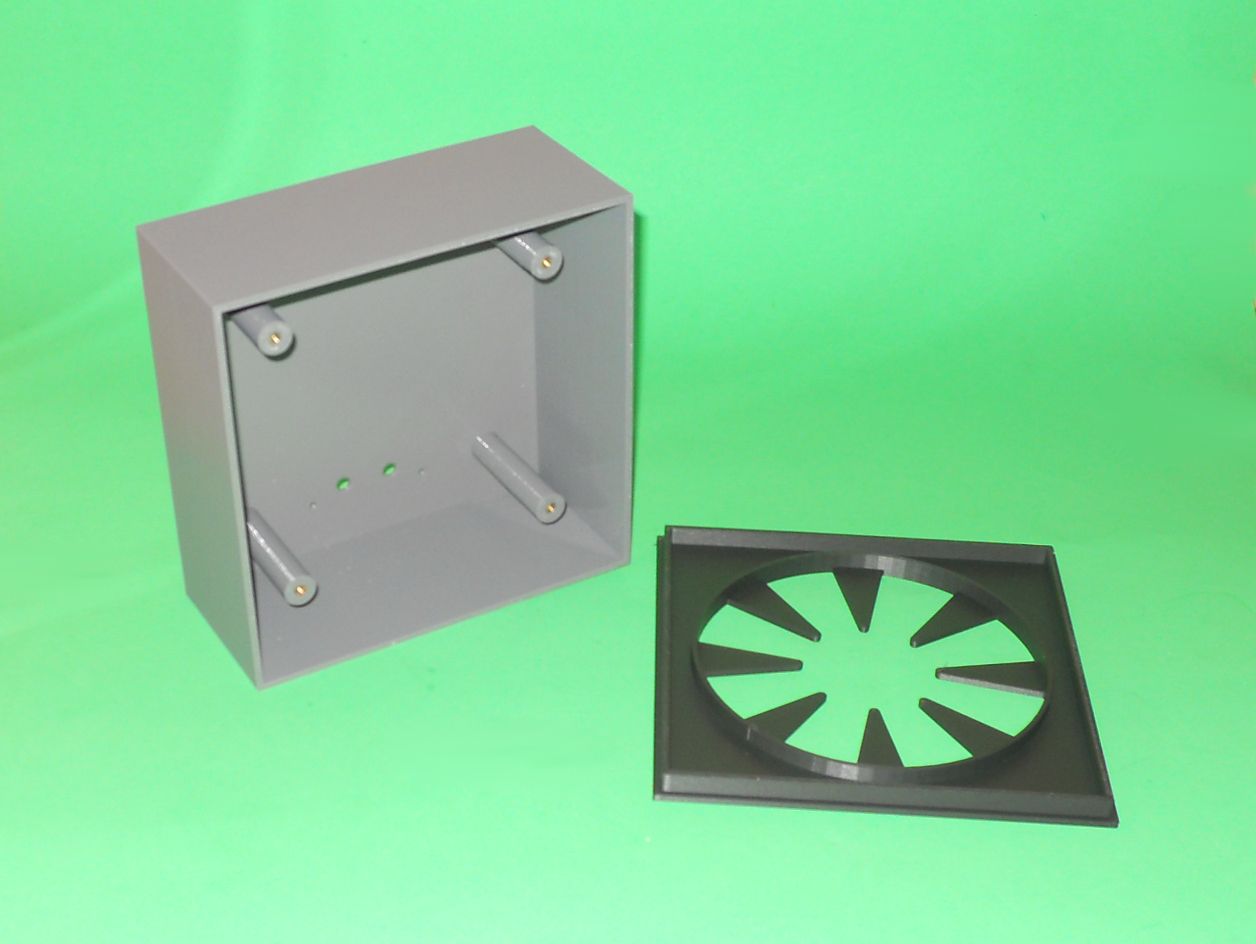

This is a 5-1/4 inch round speaker enclosure. The total speaker depth is 50 mm.

The screw holes for the speaker are 141 mm diagonally.

You'll need 4 x M3 brass inserts, 4 x M3 x 4 mm screws, 1 x terminal block for the speaker connections with the related screws and nuts and finally some wires to hook the speaker to the terminal block. A dab of glue is also required to mount the front grill.

You will need to print 1 of each for each speaker. Support is not required. An infill of 20% is recommended.

This object was designed using Solid Edge Community Edition.

Files

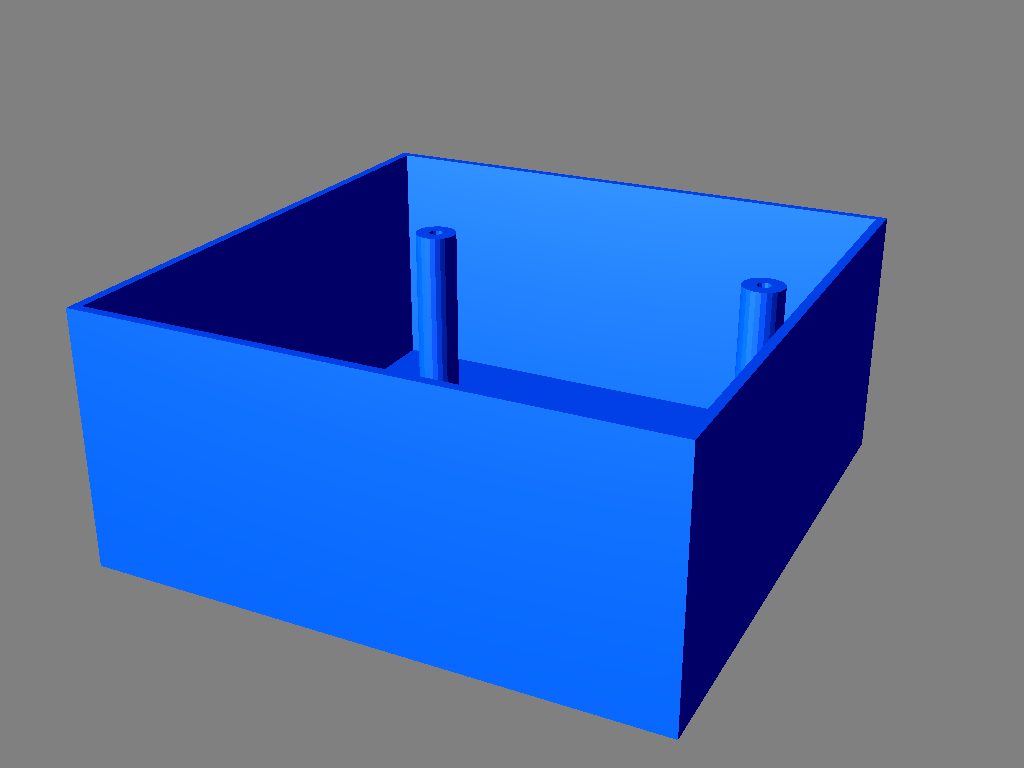

	Base.stl

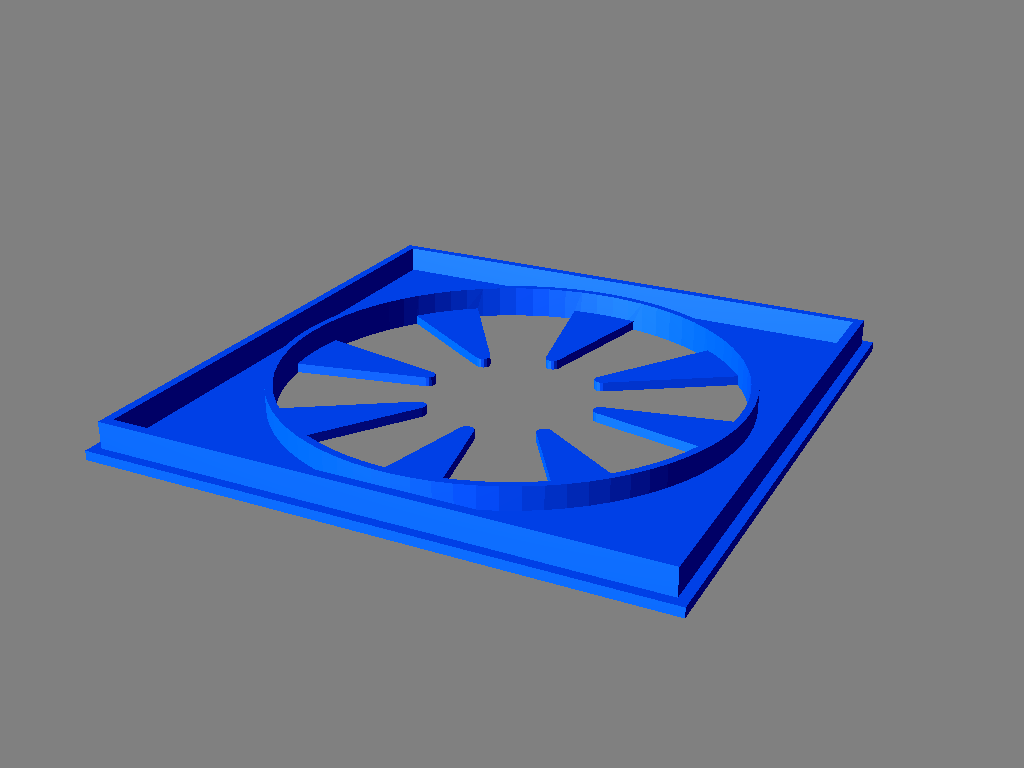

	FrontGrill.stl
