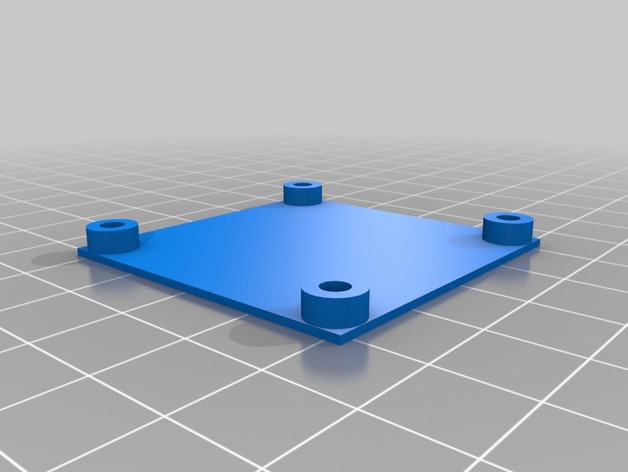

L298D Motor Driver Mouning Plate

This is a mounting plate for the dual motors driver board that uses a L298D. They are widely available. This mounting plate serves three purposes:

• act as a spacer between the mounting surface and the board (4 mm)
• prevent scratching the mounting surface
• prevent short-circuiting the board component pins if the mounting surface is metallic.

The mounting holes are 3 mm in diameter. They are pass-tru holes. They are 36.75 mm apart. The mounting plate is 43.3333 mm x 43.3333 mm. The overall height of the mounting plate is 4 mm.
