3018 CNC Emergency Switch Holder

August 5, 2022 3D Printing object
3018 CNC Emergency Switch Holder

3018 CNC Emergency Switch Holder 3018 CNC Emergency Switch Holder

Description

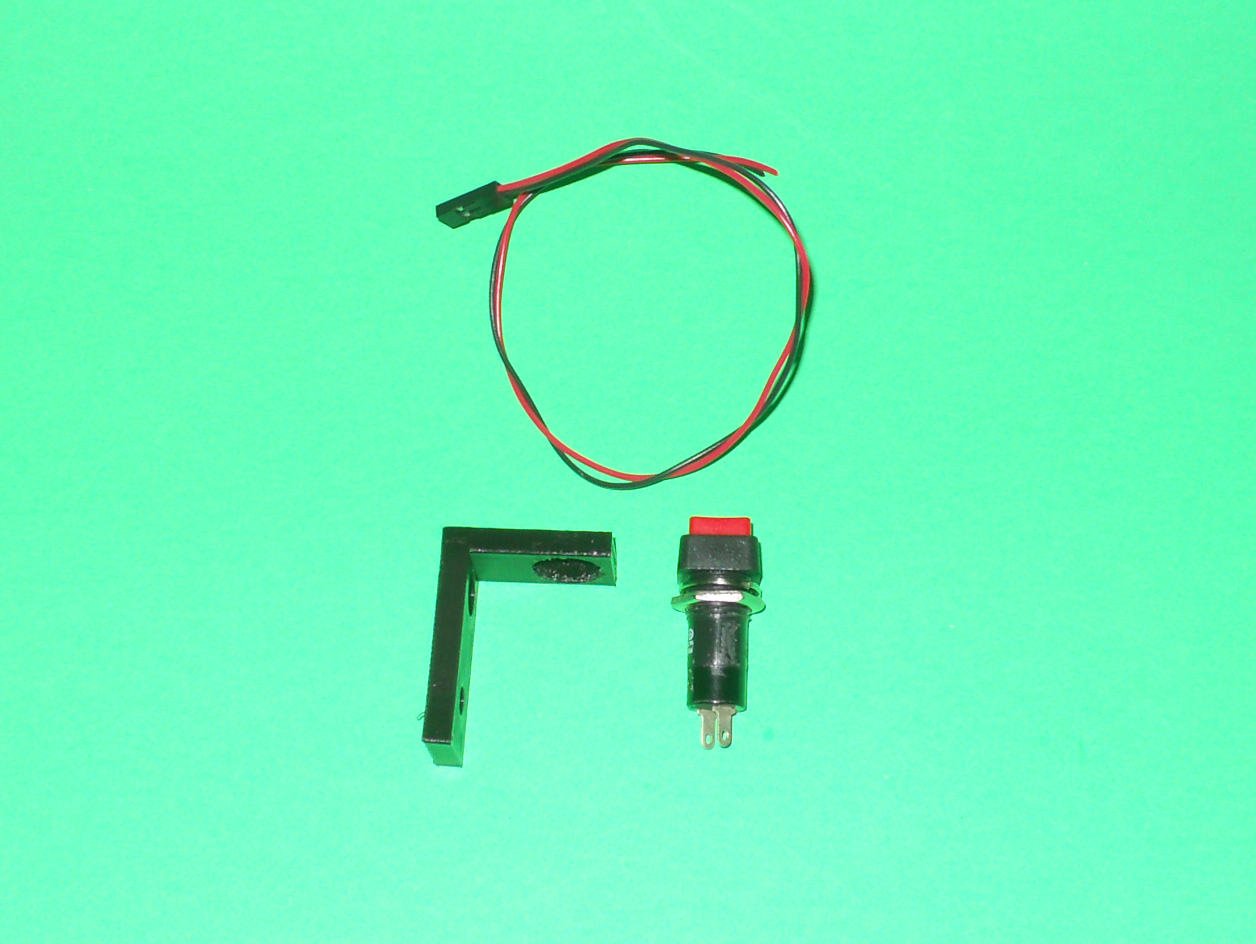

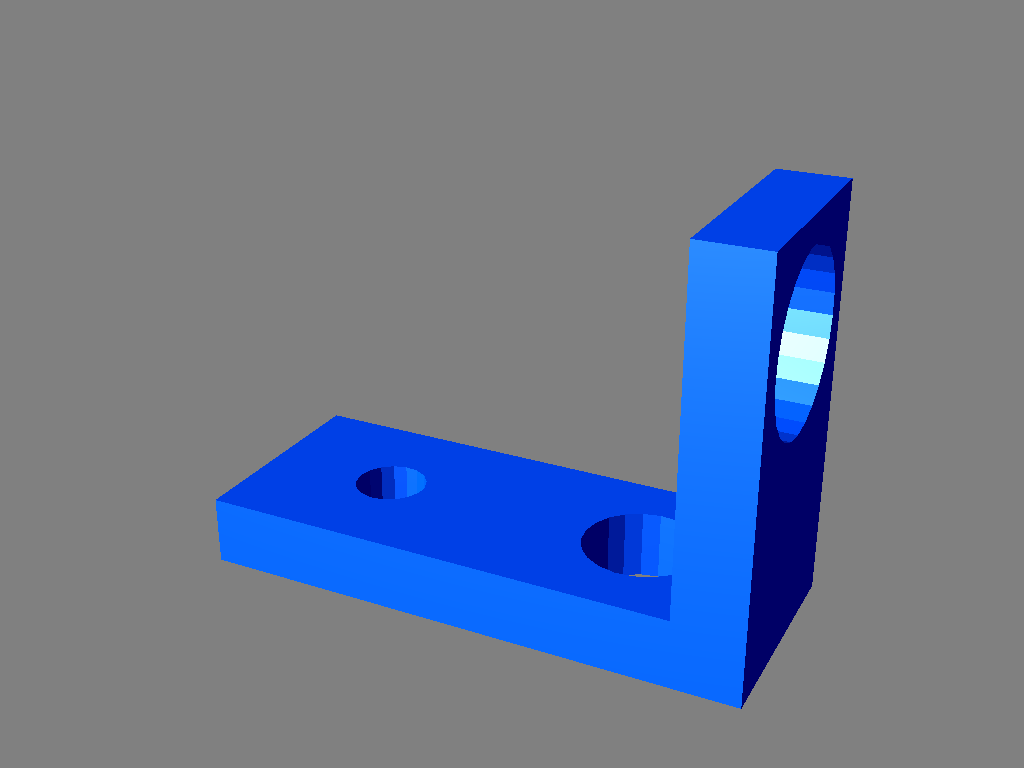

This is a simple emergency switch holder for a 3018 CNC. The diameter of the hole for the switch is 13 mm. The normally open switch can be connected on the Z limit switch connector on the control board.

Support material is not required. An infill of 40% is recommended.

This object was designed using Solid Edge Community Edition.


Files

EmergencySwitchHolder.stl EmergencySwitchHolder.stl

This object is also published on the following site(s):


This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.
