2020 Extrusion Mosfet Holder

September 21, 2019 · claude 3D Printing

Description

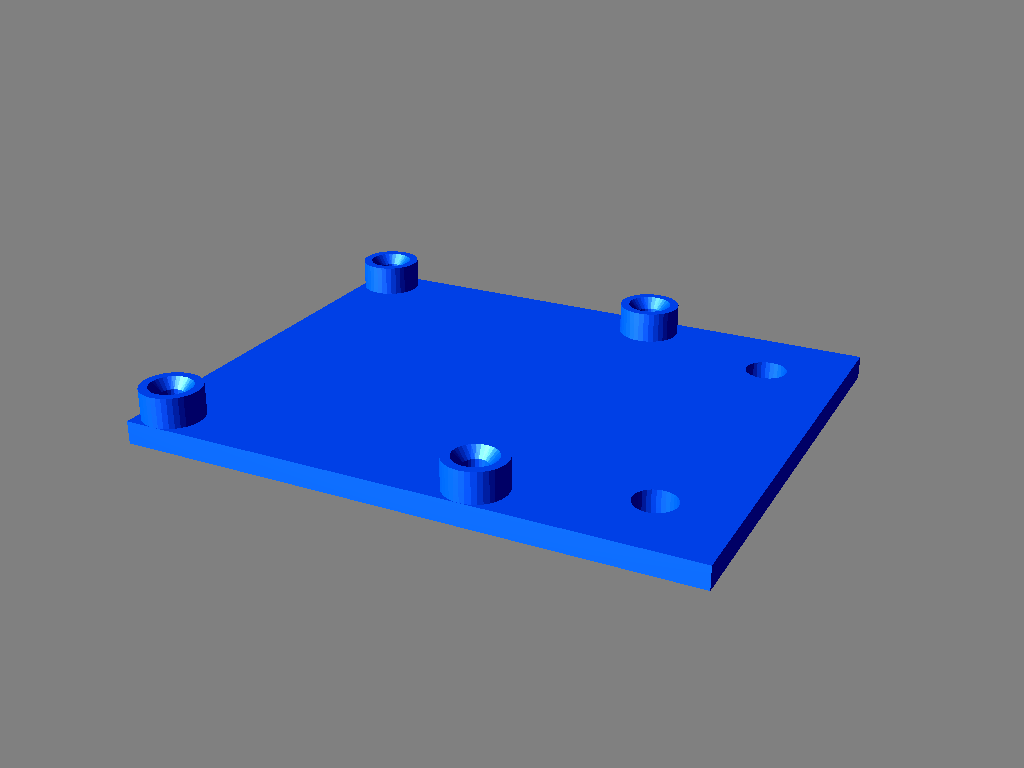

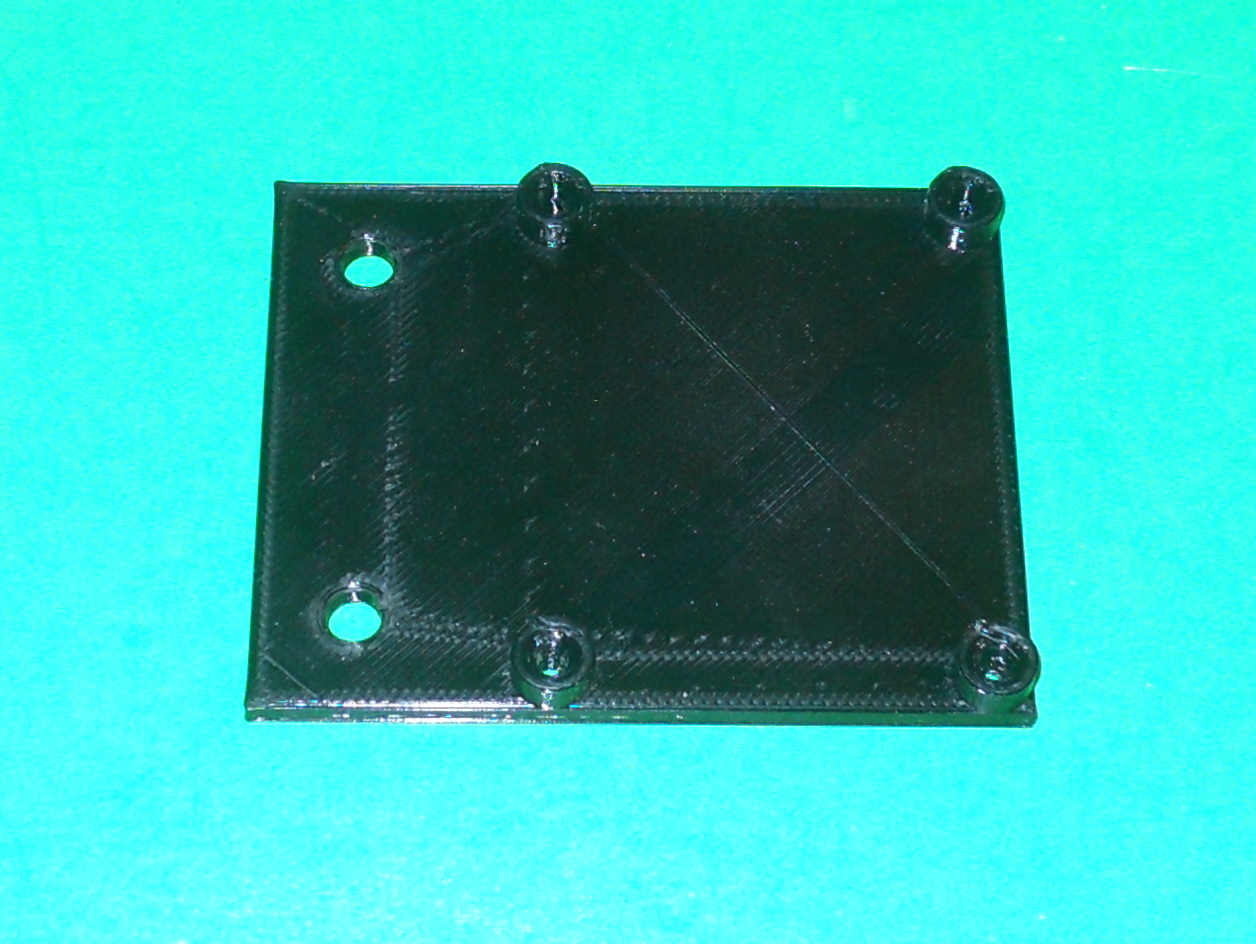

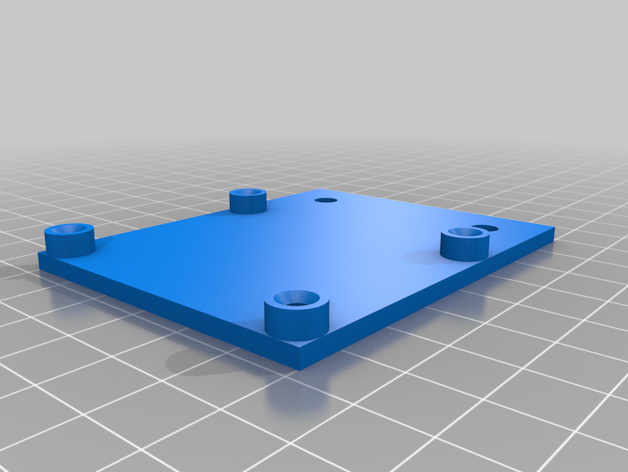

This is a Mosfet board holder that is made to be mounted on a 2020 extrusion. It has been specifically designed for a FLsun Cube.

To mount it, you will need the following:

2 x M5x8mm screws and hammer nuts
2 x M3x12mm screws and nuts

The holes for the Mosfet board are 42 x 52 mm apart.

Support is not required.

This object was designed using Fusion 360

Files

Mosfet-Holder.stl
