2020 Extrusion Flat Cable Holder

April 30, 2022 3D Printing object
2020 Extrusion Flat Cable Holder

2020 Extrusion Flat Cable Holder 2020 Extrusion Flat Cable Holder

Description

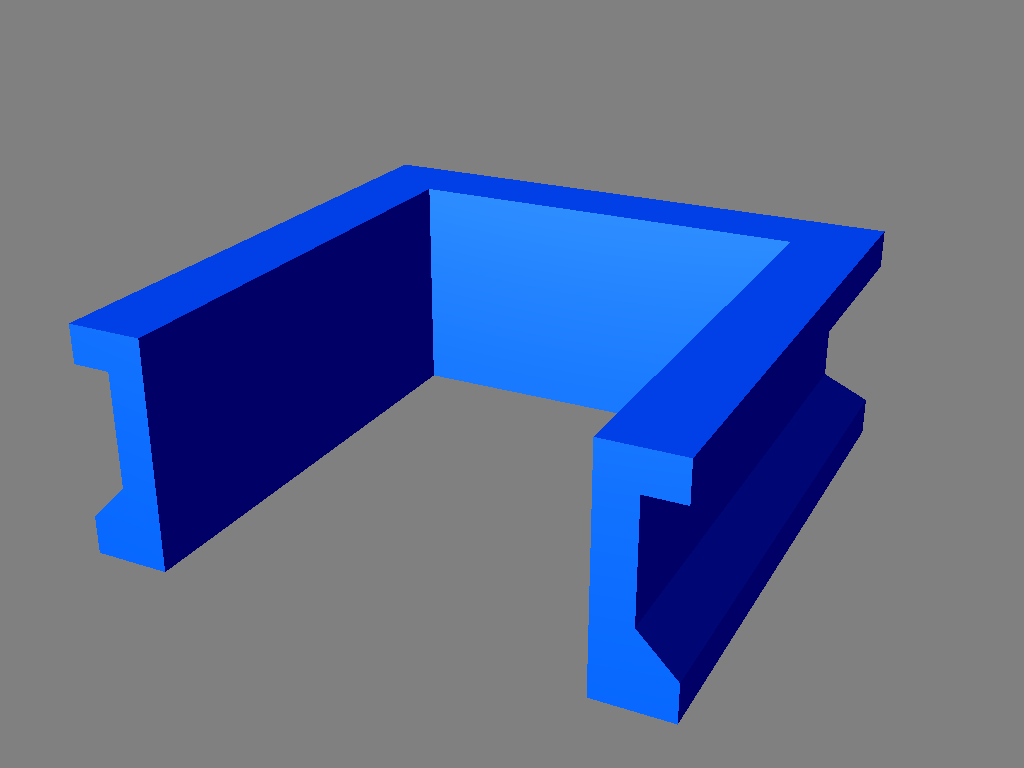

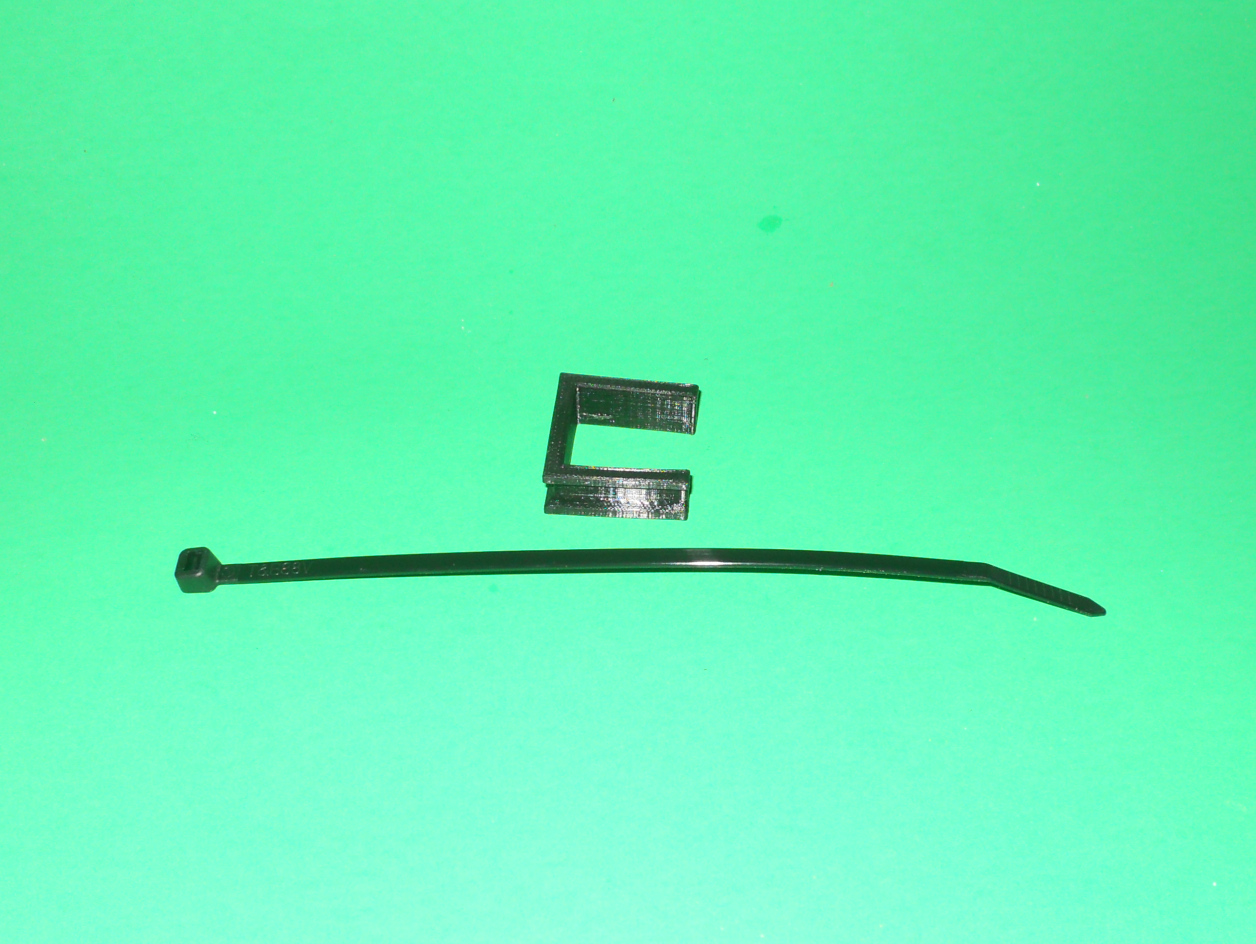

This is a clip to hold flat cables against a 2020 extrusion. It protects the flat cable against damages that may be done by zip ties. You will need a 7.5 inches (190 mm) zip tie to install it.

Support material is not required. An infill of 20% is recommended.

This object was designed using Solid Edge Community Edition.


Files

2020FlatCableHolder.stl 2020FlatCableHolder.stl

This object is also published on the following site(s):


This project is distributed under the Creative Commons - Attribution - Non-Commercial - Share Alike (CC-BY-NC-SA) license.
